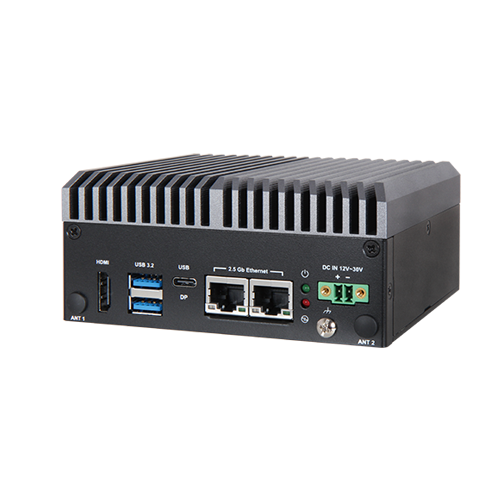

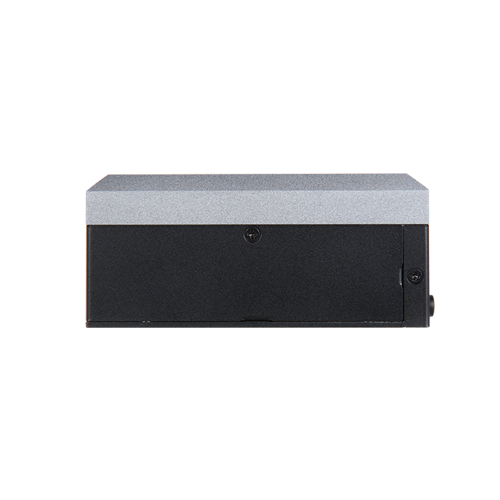

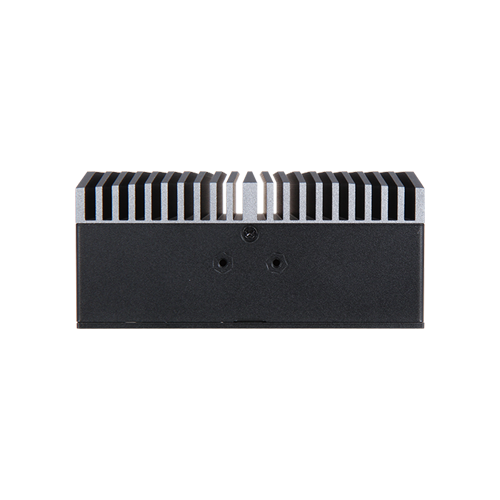

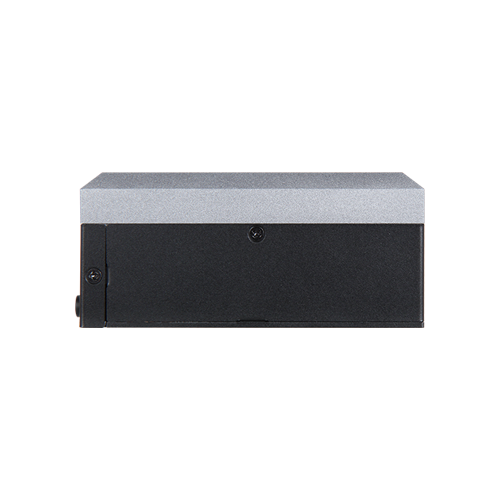

LYNX-8110

Slim fanless system with Intel Atom® x7000RE SoC, supporting dual 2.5GbE LAN, HDMI® & USB Type-C display, dual USB 3.2, up to 32GB LPDDR5, 256GB eMMC, plus M.2 expansion for SSD and Wi-Fi. Wide 12–30V DC input and -40°C to 70°C operation for industrial use.

Features

  • Slim Fanless System with Intel Atom® x7000RE Series SoC
  • Dual 2.5GbE LAN ports, Dual display ports (HDMI® & USB Type C with DP ALT mode), Dual USB 3.2
  • Onboard LPDDR5 4800MT/s up to 32GB, Onboard eMMC up to 256GB
  • 1x M.2 2242 M key socket for SATA SSD, 1x M.2 2230 E key socket for Wi-Fi module
  • Wide DC Input 12V~30V
  • Operation Temperature from -40°C to 70°C
Model LYNX-8110
Sys Form Factor Proprietary
General
Processor Intel® Atom® x7433RE Processor
Chipset Intel® SoC
BIOS AMI uEFI BIOS
Memory Support up to 32GB LPDDR5 4800 MT/s on board
Storage 1 x M.2 Key-M 2242
1 x eMMC 128G on board support up to 256GB
Watchdog Timer Programmable, time out period from 1 s to 255 s

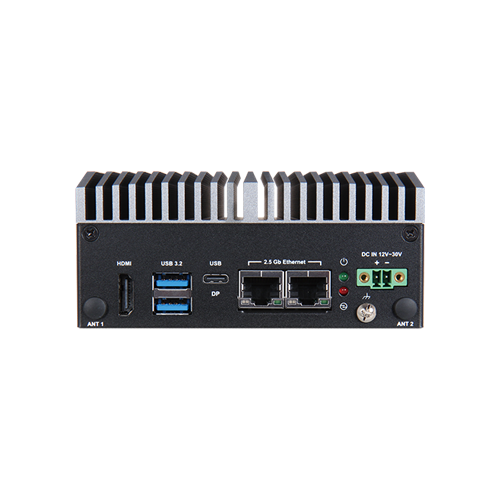

Rear I/O
Ethernet 2 x 2.5 GbE w/ Intel WGI226IT
USB 2 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen1 x2 Type C with DP ALT mode
Display 1 x HDMI® 1.4a
1 x DP 1.4 colay with USB3.2 Gen2x2 Type-C
LED Power, Storage
Antenna 2 x SMA Antenna holes for Wi-Fi
Expansion I/O
M.2 1 x E Key w/ 2230 Wi-Fi module
1 x M Key w/ 2242 SATA III
Security TPM 2.0
ME/Environment
Dimension (WxDxH) 120 x 120 x 54 mm (4.72″ x 4.72″ x 2.13″ )
Weight 1 kg
Power Supply Terminal Block 12-30V
Mounting Wall Mount, DIN Rail Mount
Vibration 5G 10~500Hz with SSD (IEC/EN 60068-2-6)
Shock 50G 11m sec with SSD (IEC 60068-2-27)
IP Protection IP40
Operating Temperature -40 ~ 70 °C (-40.0 ~ 158.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC/UKCA Class A, LVD (EN 62368-1)
OS Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™
Portwell Special Feature PET
