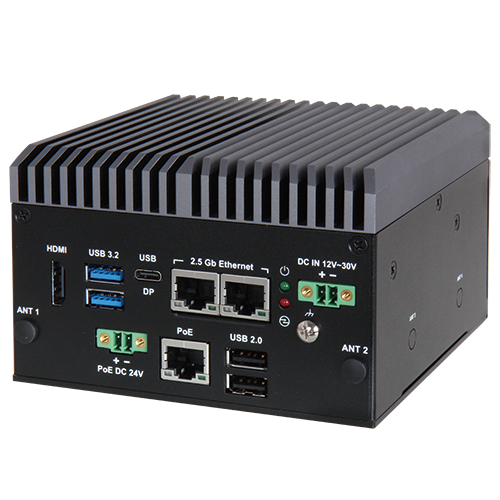

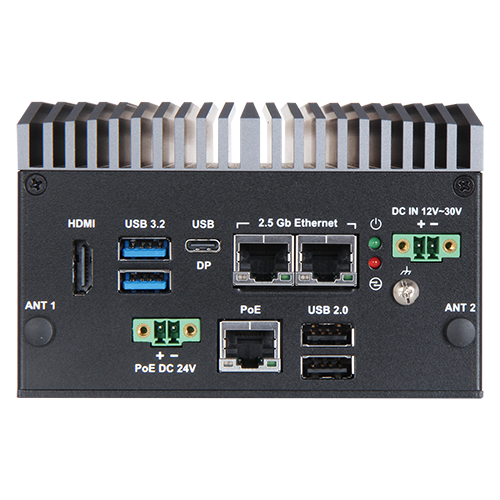

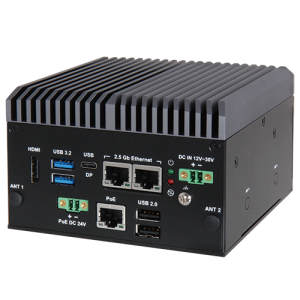

| Model | LYNX-812A | ||||
|---|---|---|---|---|---|
| Sys Form Factor | Proprietary | ||||
| General | ||||||
|---|---|---|---|---|---|---|
| Processor | Intel® Atom® x7433RE, 4 cores, 9 W | |||||
| Chipset | Intel® SoC | |||||
| BIOS | AMI uEFI BIOS | |||||
| Memory | 2 x LPDDR5 4GB on board, support up to 32GB | |||||
| Storage | 1 x eMMC 128G on board, support up to 256GB | |||||
| AI Accelerator | Hailo Hailo-8 (Chip on Board, COB) | |||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||
| System I/O | ||||||
|---|---|---|---|---|---|---|
| Ethernet | 2 x 2.5 GbE LAN w/ Intel® WGI226IT | |||||
| USB | 2 x USB 3.2 Gen2 x1 (10Gbps) Type A | |||||
| 1 x USB 3.2 Gen2 x1 (10Gbps) Type C with DP Alt mode | ||||||
| Display | 1 x HDMI® 1.4a | |||||
| 1 x DP 1.4 colay with USB3.2 Gen2x1 Type-C | ||||||
| LED | Power, Storage | |||||
| Antenna | 6 x SMA Antenna holes for Wi-Fi | |||||
| Expansion I/O | ||||||
|---|---|---|---|---|---|---|
| Ethernet | 1 x 2.5 GbE LAN w/ Intel® WGI226IT POE | |||||
| Power Supply | Terminal Block 24V for PoE port | |||||
| USB | 2 x USB 2.0 (480Mbps) Type A | |||||
| M.2 | 1 x E Key w/ 2230 for WiFi/BT module | |||||
| 1 x M Key w/ 2242 for storage | ||||||
| Security | TPM 2.0 | |||||
| ME/Environment | ||||||
|---|---|---|---|---|---|---|
| Dimension (WxDxH) | 120 x 120 x 76 mm (4.72″ x 4.72″ x 2.99″ ) | |||||
| Weight | 1.5 kg | |||||
| Power Supply | Terminal Block 12-30V | |||||
| Mounting | Wall Mount, DIN Rail | |||||
| Vibration | 5G 10~500Hz with SSD (IEC/EN 60068-2-6) | |||||
| Shock | 50G 11m sec with SSD (IEC 60068-2-27) | |||||
| IP Protection | IP40 | |||||
| Operating Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) | |||||
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) | |||||
| Relative Humidity | 5% to 95%, non-condensing | |||||
| Certification | CE/FCC/UKCA Class A, LVD (EN 62368-1) | |||||
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™ | |||||
| Portwell Special Feature | PET | |||||
| Category | Product | P/N | Description |
|---|---|---|---|
| System | LYNX-812A | AS5-3784 | (R). LYNX-812A. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2H8PLU2, 2 USB2.0 and 1 PoE port |
| System | ATO-LYNX-812A | AS5-3785 | (R). ATO. LYNX-812A. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2H8PLU2, 2 USB2.0 and 1 PoE port |
