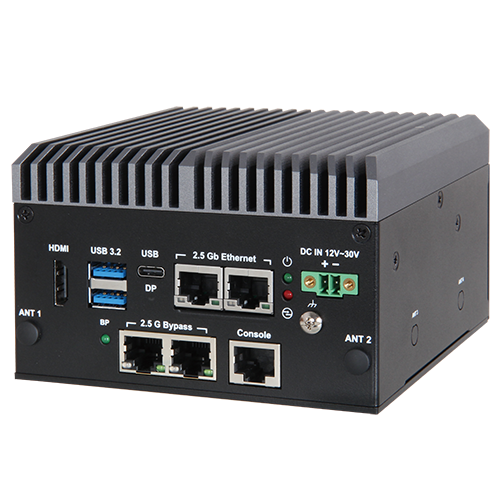

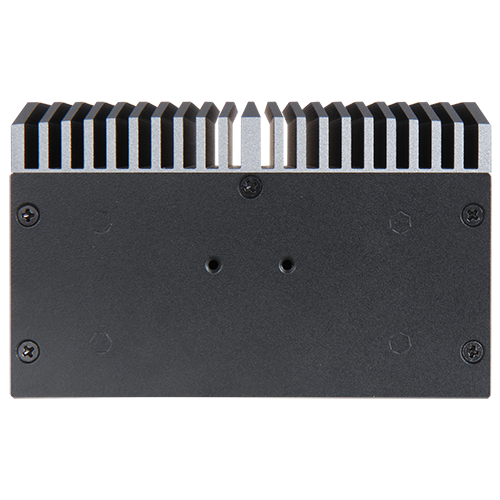

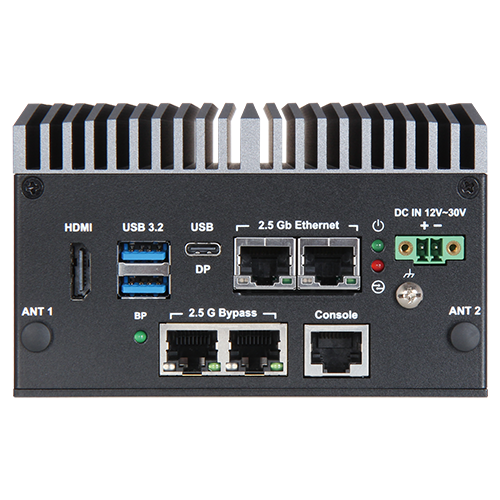

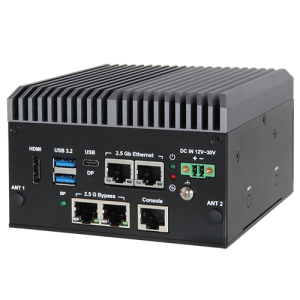

LYNX-812B

Features

  • Robust Fanless System with Intel Atom® x7000RE Processor
  • Dual 2.5GbE LAN Bypass ports, and single console port for OT security gateway, firewall, routing, power-grid cyber security
  • Dual 2.5GbE LAN ports, Dual display ports (HDMI® & USB Type C with DP ALT mode), Dual USB 3.2
  • Onboard LPDDR5 4800MT/s up to 32GB, Onboard eMMC up to 256GB
  • Wide DC Input 12V~30V and Operation Temperature from -40°C to 70°C
Model LYNX-812B
Sys Form Factor Proprietary
General
Processor Intel® Atom® x7433RE, 4 cores, 9 W
Chipset Intel® SoC
BIOS AMI uEFI BIOS
Memory 2 x LPDDR5 4GB on board, support up to 32GB
Storage 1 x eMMC 128G on board, support up to 256GB
Watchdog Timer Programmable, time out period from 1 s to 255 s
System I/O
Ethernet 2 x 2.5 GbE LAN w/ Intel® WGI226IT
USB 2 x USB 3.2 Gen2 x1 (10Gbps) Type A
1 x USB 3.2 Gen2 x1 (10Gbps) Type C with DP Alt mode
Display 1 x HDMI® 1.4a
1 x DP 1.4 colay with USB3.2 Gen2x1 Type-C
LED Power, Storage, Bypass
Antenna 6 x SMA Antenna holes for Wi-Fi
Expansion I/O
Ethernet 2 x 2.5 GbE LAN w/ Intel® WGI226IT Bypass
Console Port 1 x RJ45
M.2 1 x M Key w/ 2242 for storage
1 x E Key w/ 2230 for WiFi/BT module
Security TPM 2.0
ME/Environment
Dimension (WxDxH) 120 x 120 x 76 mm (4.72″ x 4.72″ x 2.99″ )
Weight 1.5 kg
Power Supply Terminal Block 12-30V
Mounting DIN Rail, Wall Mount
Vibration 5G 10~500Hz with SSD (IEC/EN 60068-2-6)
Shock 50G 11m sec with SSD (IEC 60068-2-27)
IP Protection IP40
Operating Temperature -40 ~ 70 °C (-40.0 ~ 158.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
Certification CE/FCC/UKCA Class A, LVD (EN 62368-1)
OS Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™
Portwell Special Feature PET

Ordering Guide

Category Product P/N Description
System LYNX-812B AS5-3786 (R). LYNX-812B. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2BL2S2U1D, 2 Bypass LAN ports
System LYNX-812B-ATO AS5-3788 (R). ATO. LYNX-812B. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2BL2S2U1D, 2 Bypass LAN ports
