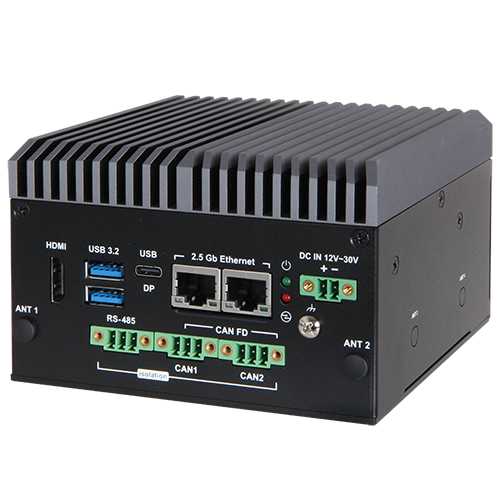

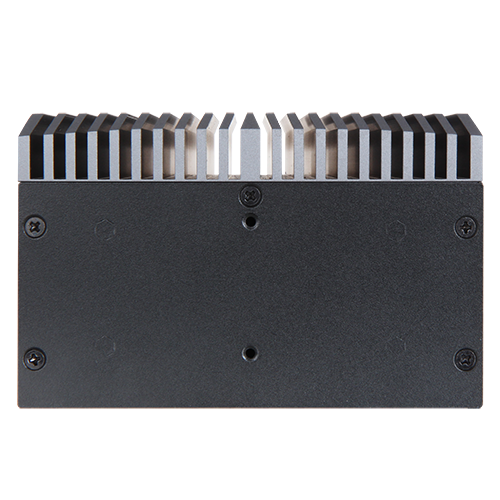

| Model | LYNX-812D | ||||
|---|---|---|---|---|---|
| Sys Form Factor | Proprietary | ||||
| General | ||||||
|---|---|---|---|---|---|---|
| Processor | Intel® Atom® x7433RE, 4 cores, 9 W | |||||
| Chipset | Intel® SoC | |||||
| BIOS | AMI uEFI BIOS | |||||
| Memory | 2 x LPDDR5 4GB on board, support up to 32GB | |||||
| Storage | 1 x eMMC 128G on board, support up to 256GB | |||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||

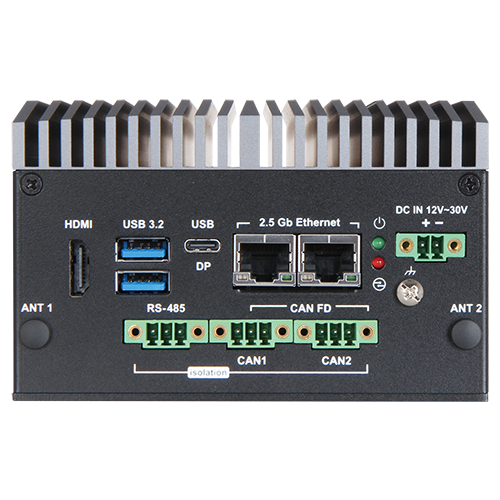

| System I/O | ||||||
|---|---|---|---|---|---|---|
| Ethernet | 2 x 2.5 GbE LAN w/ Intel® WGI226IT | |||||
| USB | 2 x USB 3.2 Gen2 x1 (10Gbps) Type A | |||||
| 1 x USB 3.2 Gen2 x1 (10Gbps) Type C with DP Alt mode | ||||||
| Display | 1 x HDMI® 1.4a | |||||
| 1 x DP 1.4 colay with USB3.2 Gen2x1 Type-C | ||||||
| LED | Power, Storage | |||||
| Antenna | 6 x SMA Antenna holes for Wi-Fi / 5G | |||||
| Expansion I/O | ||||||
|---|---|---|---|---|---|---|
| Serial Port | 2 x Terminal Block support 1KV isolation CANbus FD | |||||
| 1 x Terminal Block support 1KV isolation RS-485 | ||||||
| M.2 | 1 x M Key w/ 2242 for storage | |||||
| 1 x E Key w/ 2230 for WiFi/BT module | ||||||
| 1 x B Key w/ 3042/3052 for 4G/5G/AI | ||||||
| SIM Slots | 2 x Micro-SIM | |||||
| Security | TPM 2.0 | |||||
| ME/Environment | ||||||
|---|---|---|---|---|---|---|
| Dimension (WxDxH) | 120 x 120 x 76 mm (4.72″ x 4.72″ x 2.99″ ) | |||||
| Weight | 1.5 kg | |||||
| Power Supply | Terminal Block 12-30V | |||||
| Mounting | DIN Rail, Wall Mount | |||||
| Vibration | 5G 10~500Hz with SSD (IEC/EN 60068-2-6) | |||||
| Shock | 50G 11m sec with SSD (IEC 60068-2-27) | |||||
| IP Protection | IP40 | |||||
| Operating Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) | |||||
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) | |||||
| Relative Humidity | 5% to 95%, non-condensing | |||||
| Certification | CE/FCC/UKCA Class A, LVD (EN 62368-1) | |||||
| OS | Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Linux™ | |||||
| Portwell Special Feature | PET | |||||
| Category | Product | P/N | Description |
|---|---|---|---|
| System | LYNX-812D | AS5-3789 | (R). LYNX-812D. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2S2C2U1D, 2 isolation CANBUS and 1 isolation RS-485 |
| System | LYNX-812D-ATO | AS5-3790 | (R). ATO. LYNX-812D. SFF Embedded system with LSMC-M1013-X7433RE, 8G LPDDR5, 128G eMMC, TPM2.0 plus PA-P2S2C2U1D, 2 isolation CANBUS and 1 isolation RS-485 |
