MEDS-M2400

23.6″ Touch Monitor with Medical Outlook

Features

  • Suitable white meets classic elegant design
  • Full HD 1080p resolution & P-CAP touch screen
  • Superior image quality with high contrast ratio
  • Fast response time without residual image
  • Solid IP65 water & dust proof front bezel
  • Rich IO connection, HDMI, VGA, USB
Display
Size 23.6
Resolution FHD 1920 x 1080
Brightness 250 nits
Contrast Ratio 1000 : 1
Backlight LED type
Viewing Angle 170° (H)/160° (V)
Touch Screen Projected Capacitive Multi-Touch

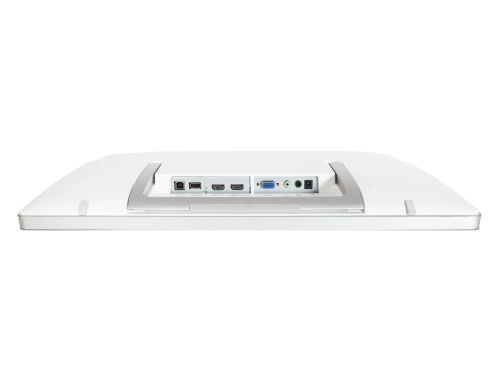

I/O Interface
Display – 2x HDMI
– 1x VGA
USB 1x USB 2.0 (Downstream), 1x USB 2.0 (Upstream)
Audio – 2x 2W Speaker
– 1x Line out
– 1x Line out
DC input 20V DC Jack
Power
Power Consumption 45W (Max.)
Power Requirement DC 20V input with Power Adapter
Mechanical & Environmental
IP Protection IP65 (Front)
OP Temperature 0°C ~ 40°C
Dimensions 561.9(W) × 353.4(H) × 42.9(D)mm
Color White/ Black
Net Weight 4.6kg
Mounting Standalone, VESA 75mm x 75mm
Certifications CE/ FCC Class B
