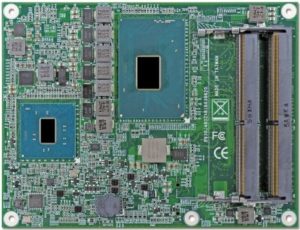

Intel® Core™ Kaby Lake-H/Skylake-H Processor based on Type VI COM Express® module with DDR4 SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB


  • Kabylake-H / Skylake-H is the 7th / 6th Generation Intel® CoreProcessor with 14nm and brand new architecture provide more performance
  • Support DDR4-2133 MT/S ECC/Non-ECC SDRAM on two SO-DIMM slots, up to 16 GB
  • Support faster I/O interfaces on 8x PCIe Gen3 lanes (four x 1 can be configured to on x4 lane)
  • One VGA, three DDI(one default optional)
  • and one embedded display port wide voltage support, from 6V to 18V


PCOM-B639VG brings three important factors, DDR 4 memory support, Gen 3 PCIe support, and 30% faster graphic performance. The DDR4 is trend and it supports both ECC and Non-ECC with the same pin definition. In other words, customer can use both ECC and Non-ECC memories depending their application and demand. In order to achieve that, all the PCH SKUs are considered in development stage to make sure that customer has various models to meet different requirements in cost, performance, and memory type. The Gen 3 PCIe support provides faster PCIe speed so that the performance of PCIe expansion card will be better. It is crucial for Networking and Medical related applications. The enhanced graphic performance brings 4K support.


CPU Intel® Core™ i7-7820EQ Processor (4 x 3.00 GHz / 3.70 GHz, 8 MB, 45 W)
Intel® Core™ i5-7440EQ Processor (4 x 2.90 GHz / 3.60 GHz, 6 MB, 45 W)
Intel® Core™ i5-7442EQ Processor (4 x 2.10 GHz / 2.90 GHz, 6 MB, 25 W)
Intel® Core™ i3-7100E Processor (2 x 2.90 GHz, 3 MB, 35 W)
Intel® Core™ i3-7102E Processor (2 x 2.10 GHz, 3 MB, 25 W)
Intel® Core™ i7-6820EQ Processor (4 x 2.80 GHz / 3.50 GHz, 8 MB SmartCache, 45 W)
Intel® Core™ i7-6822EQ Processor (4 x 2.00 GHz / 2.80 GHz, 8 MB SmartCache, 25 W)
Intel® Core™ i5-6440EQ Processor (4 x 2.70 GHz / 3.40 GHz, 6 MB SmartCache, 45 W)
Intel® Core™ i5-6442EQ Processor (4 x 1.90 GHz / 2.70 GHz, 6 MB SmartCache, 25 W)
Intel® Core™ i3-6100E Processor (2 x 2.70 GHz, 3 MB SmartCache, 35 W)
Intel® Core™ i3-6102E Processor (2 x 1.90 GHz, 3 MB SmartCache, 25 W)
Intel® Celeron® Processor G3900E (2 x 2.40 GHz, 2 MB SmartCache, 35 W)
Intel® Celeron® Processor G3902E (2 x 1.60 GHz, 2 MB SmartCache, 25 W)
Type Type 6
Format Basic
Chipset Intel® QM170 / CM236 / QM175 / CM238
DRAM Up to 32GB DDR4-2133, two SO-DIMM sockets, Non-ECC / ECC
Storage 4x SATA III (6Gbit/s)
Graphic Controller Intel® HD Graphics 510 (Processor dependent) Intel® HD Graphics 530 (Processor dependent)
Firmware AMI Aptio5 BIOS
OS Support Windows 7, Windows 10, Linux
USB 8x USB 2.0, 4x USB 3.0
Serial Interface 2x RX/TX
Display Interface VGA (1920×1200 @ 60 Hz) LVDS (1920×1200 @ 60 Hz) 3 DDI HDMI® / DP (1 Optional) DP 3840×2160 @ 60 Hz HDMI® 3840×2160 @ 60Hz
Network 1x Gigabit Ethernet Intel® I219LM
Bus Interface 8x PCIe x1 Gen3 (four x 1 can be configured to on x4 lane), 1x PCIe x16 Gen3
Audio Intel® HD Audio
Operating Temperature 0C° to +60°C
Extended Temperature screening upon request
Storage Temperature -40°C to +85°C
Power Requirement 12VDC, 5V STBY, VBAT, Support AT and ATX mode
Power from W depends on used CPU
Dimensions 125×95 mm
Certificates CE
Miscellaneous GPIO 8bit Watchdog Timer HW monitoring CPU, voltage, fan and temperature

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B639VG-6822EQ AB1-3E06 Available
PCOM-B639VG-6820EQ AB1-3E31 Available
PCOM-B639VG-6442EQ AB1-3E28 Available
PCOM-B639VG-6440EQ AB1-3E29 Available
PCOM-B639VG-6102EQ AB1-3E26 Available
PCOM-B639VG-6100EQ AB1-3E27 Available
PCOM-B639VG-G3902E AB1-3E35 Available
PCOM-B639VG-G3902E AB1-3E25 Available
PCOM-B639VG-G3900E AB1-3G48 Available
PCOM-B639VG-7820EQ AB1-3G46 Available
PCOM-B639VG-7442EQ AB1-3G47 Available
PCOM-B639VG-7440EQ AB1-3G44 Available
PCOM-B639VG-7102E AB1-3G45 Available
PCOM-B639VG-7100EZ AB1-3E38 Available


Accessory Ordering P/N Status
PQ7-C605 carrier board AB1-3998 Available
Cooler B9971391 Available
Heat Sink B8308670 Available
Heat Spreader B8308510 Available
