COM Express® Basic

COM Express® Basic (125 x 95mm): COMe basic size form factor (125 x 95mm) and types 6 and 7 pin out.

COM Express Type 6

The Type 6 COM-Express module is defined by PCI Industrial Computer Manufacturers Group (PICMG). The Type 6 COM-Express provides standardized module interfaces including storage, graphic control, video Interfaces (LVDS, VGA & DDI), and USB 3.0 to meet different application requirements from the various vertical market.

PCOM-B634VG
Rev 3.1

COM Express Type 6 Basic size module with Intel New Gen Core Ultra Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

Rev 3.1

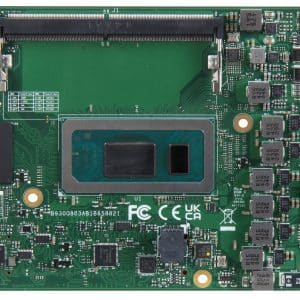

COM Express Type6 Basic size module with Intel® 13th Gen H/P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

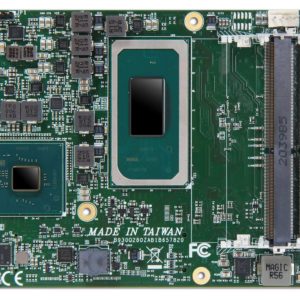

COM Express Type-VI Basic module with Intel® 11th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

Intel® Pentium® / Xeon® D-1500 series Processor based on Type 6 COM Express® 2.0 module with DDR4 ECC/Non-ECC 3x SODIMM sockets, VGA, DDI, PCIex 16, USB 3.0, and SATA 6 Gb/s

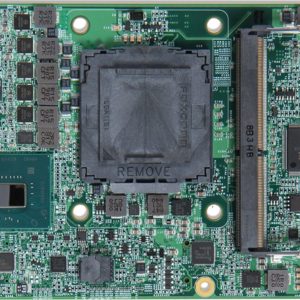

Intel® Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

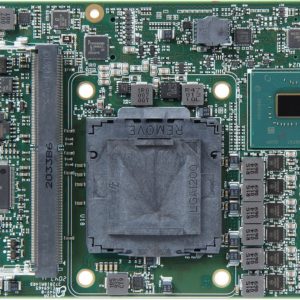

Intel® Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

COM Express Type 7

The Type 7 Modules trades all audio and video interfaces, 2 SATA ports and four USB 2.0 for additional PCI Express lanes, 4x 10 Gb Ethernet ports and an NCSI management interface for the GbE port.

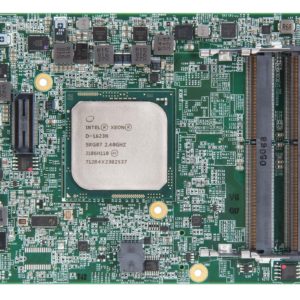

COM Express Type 7 Basic Module based on Intel® Xeon® D-1800 Processors with Two Channels and Two SO-DIMM slots.

COM-Express® Type 7 Basic module with AMD® Embedded Ryzen™ V3000 CPU Family equipped on-module NVME SSD

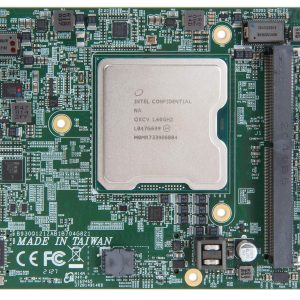

COM Express Type 7 Basic Module based on Intel® Xeon® D-1700 Processors with Three Channels and Four SO-DIMM slots

Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module

Intel® Atom® C3000/C3000-Refresh series SoC based on Type 7 Basic COM-Express® module with 3x DDR4 ECC SO-DIMM Socket
