PCOM-B65B

COMING SOOM
Intel® PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

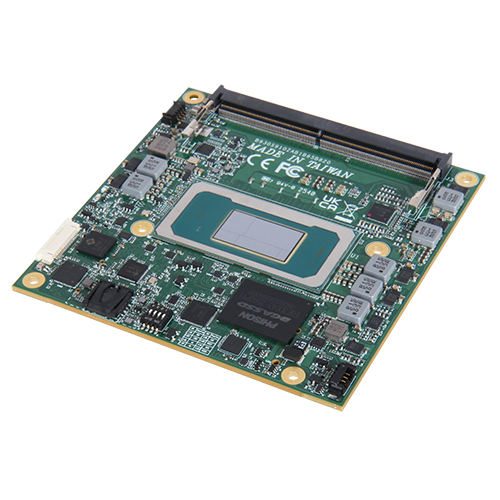

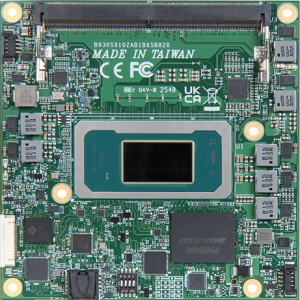

PCOM-B65B

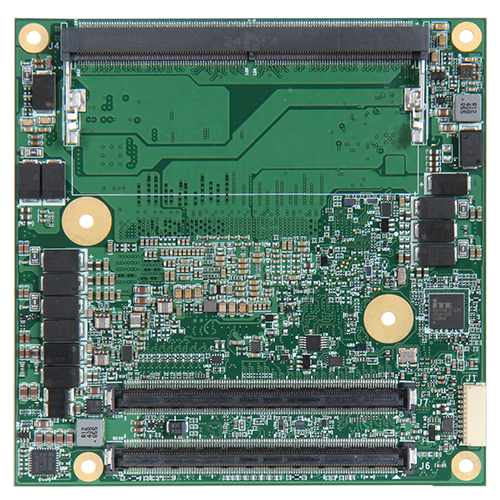

PCOM-B65B - Image 2

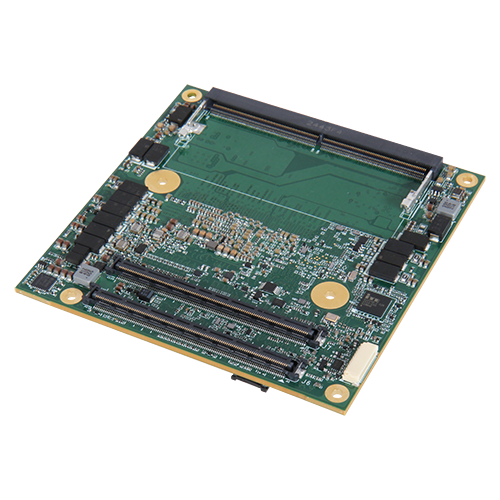

PCOM-B65B - Image 3

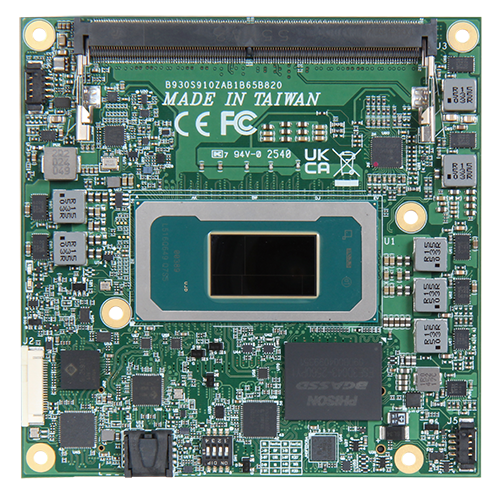

PCOM-B65B - Image 4

Features

  • Intel New Gen Core ultra processor ( Panther Lake-H ) 15W~65W
  • Up to 4 P-cores + 8 E-cores + 4 LPE cores
    Support up to 12Xe GPU (120Tops) and NPU 5 (50 Tops)
  • 2x DDR5 SO-DIMM support IBECC, up to 128GB/7200 MT/s
  • Support up to 12 PCIe Gen4 Lane
  • 4x USB3.2 Gen2, 2x SATA, 3x DDI, eDP/LVDS
    Options for onboard PCIe NVMe SSD
    Support 1x MIPI-CSI connector on module
Datasheet
Documents & Downloads
Model PCOM-B65B
Form Factor COM Express Type 6 Compact Size (95 mm x 95 mm)
General
Processor CPU Intel® Core Ultra X9 388H Intel® Core Ultra X7 368H Intel® Core Ultra X7 358H Intel® Core Ultra 5 338H Intel® Core Ultra 7 365RE Intel® Core Ultra 7 365 Intel® Core Ultra 7 355 Intel® Core Ultra 5 325
Core/Thread 16 16 16 12 8 8 8 8
Based Frequency
Turbo Frequency 5.1 GHz 5.0 GHz 4.8 GHz 4.8 GHz 4.8 GHz 4.7 GHz 4.5 GHz
Cache 18 MB 18 MB 18 MB 18 MB 18 MB 18 MB 12 MB 12 MB
TDP 25 W 25 W 25 W 25 W 25 W 25 W 25 W 25 W
Intel® QuickAssist Technology (Intel® QAT)
Intel® Time Coordinated Computing (Intel® TCC)
Intel® Deep Learning Boost (Intel® DL Boost)
Ethernet KR
Graphics EU 12Xe 12Xe 12Xe 10Xe 4Xe 4Xe 4Xe 4Xe
Graphics Max Freq. 2.5GHz 2.5GHz 2.5GHz 2.4GHz 2.6GHz 2.5GHz 2.45GHz
PCH
Memory Type/Speed 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s 2x DDR5 SO-DIMM up to 128GB 7200MT/s
ECC Memory Support IBECC IBECC IBECC IBECC IBECC IBECC IBECC IBECC
Temperature Range 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) -40 ~ 85 °C (-40.0 ~ 185.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F) 0 ~ 60 °C (32.0 ~ 140.0 °F)
BIOS AMI uEFI BIOS
ECC board
Storage PCIe(NVMe) up to 256GB
Memory 2 x SO-DIMM DDR5 up to 128GB 7200 MT/s
I/O Interface
SATA 2 x SATA III (Share w/ PCIe)
USB 4 x USB 3.2 Gen1 x2
8 x USB 2.0
Ethernet 1 x 2.5 Gbe LAN (Share w/ PCIe)
PCIe 1 x PCIe Gen4 x4
1 x PCIe Gen4 x1 (Share w/ SATA)
1 x PCIe Gen4 x1 (Share w/ LAN)
6 x PCIe Gen4 x1
Legacy I/O 8 x GPIO
2 x UART
Security TPM 2.0
Display eDP / LVDS eDP up to HBR3 3840 x 2160@120Hz
eDP / LVDS LVDS (24bit, dual channel) 1920 x 1200@60Hz
DDI 1/2/3 DP up to HBR3 3840 x 2160@120Hz
DDI 1/2/3 HDMI® 2.1
DDI 1/2/3 USB4 40Gb
ME/Environment
Dimension 95 mm x 95 mm (3.74” x 3.74”)
Operating Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
OS Linux, Windows 11
Portwell Special Feature PET
