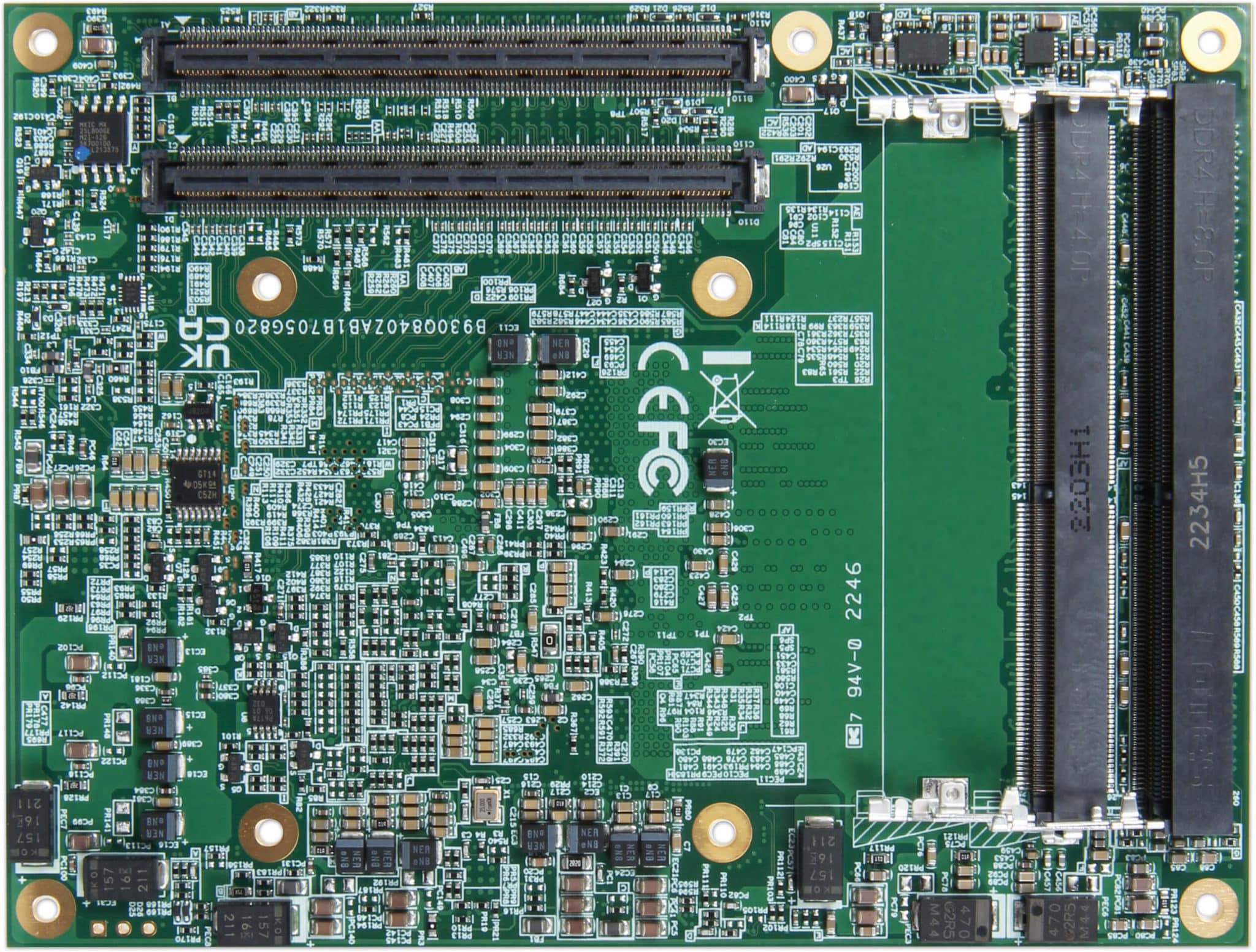

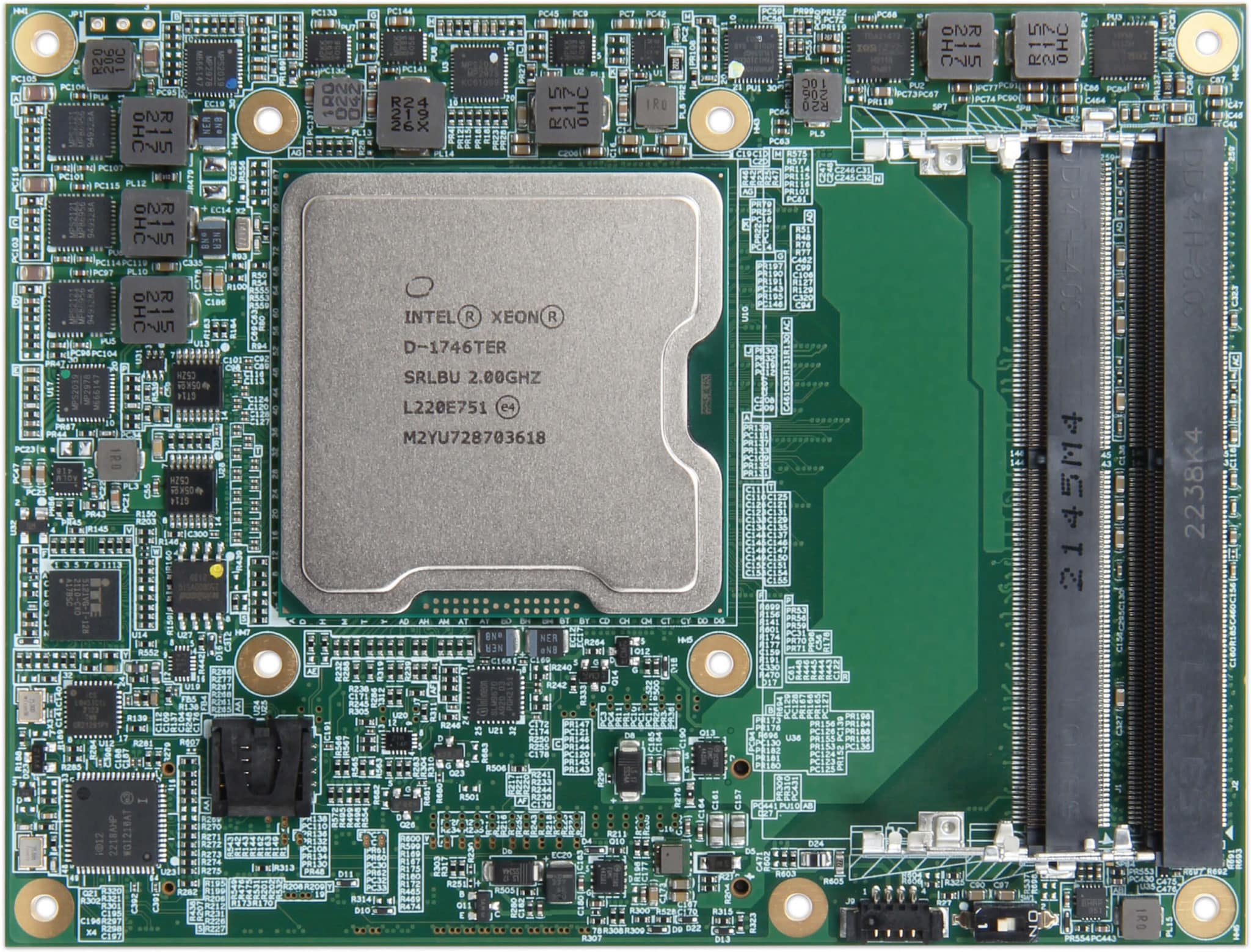

PCOM-B705GT

COM Express Type 7 Basic Module based on Intel® Xeon® D-1700 Processors with Three Channels and Four SO-DIMM slots

Features

  • Intel® Xeon® D-1700 Processors for Edge IoT
  • Intel® Deep Learning Boost, and Time Coordinated Computing
  • 4x USB2.0/3.2 Gen 2×1, 2x SATAIII, 4x 10G KR, 2x UART
  • Three Memory Channels with Maximum Four SODIMM slots
  • Selected SKUs support -40°C to 80°C Extended Temperature for Extreme Environment

Video

Play Video

Description

PCOM-B705GT, a COM Express® Type 7, basic size module based on Intel® Xeon® D-1700 Family. It is high-performance SoC with integrated Ethernet and high-capacity I/Os for IoT to deliver server-class computing. PCOM-B705GT provide server-grade performance in small form factor with option from 4 cores up to 10 cores, three channels DDR4, and full COMe Type 7 I/O support. PCOM-B705GT is the best platform for edge AI computing and software defined networking (SDN) applications.

Specification

Specifications
Model Name PCOM-B705GT
Form Factor (mm) Basic Size (125mm x 95mm)
COM Type Type 7
CPU/Clock/Cache Intel® Xeon® D-1700 Processor
D-1746TER, 67W, 10C / 20T, Base Freq, 2.0 GHz / All Core Turbo 2.5 Ghz
D-1732TE, 52W, 8C / 16T, Base Freq, 1.9 GHz / All Core Turbo 2.4 Ghz
D-1735TR, 59W, 8C / 16T, Base Freq, 2.2 GHz / All Core Turbo 2.7 Ghz
D-1715TER, 50W, 4C / 8T, Base Freq, 2.4 GHz / All Core Turbo 2.9 Ghz
D-1712TR, 40W, 4C/ 8T, Base Freq, 2.0 GHz / All Core Turbo 2.5 Ghz
Chipset SOC, No Chipset
Memory DDR4 2666MT/s*
Non-ECC/ECC*
Triple Channel*
USB 4 x USB 3.2 Gen1
4 x USB 2.0
PCI Express 16x PCIe 3.0 Lanes
16x PCIe 4.0 Lanes
Ethernet Intel® I210 Family
Carrier Board PCOM-C701-BMC

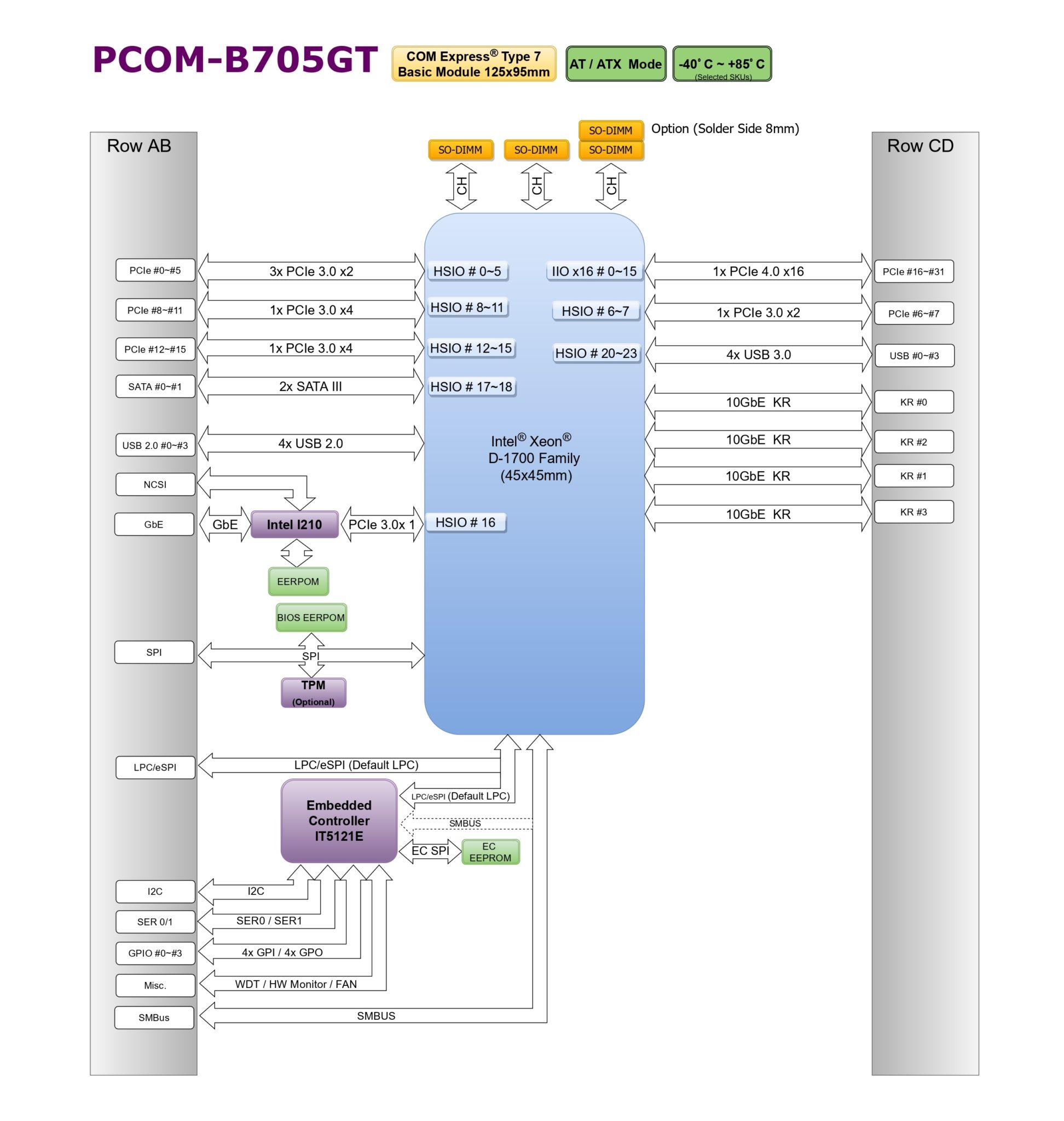

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B705GT-D1746TER AB1-3P64 Available
PCOM-B705GT-D1735TR AB1-3P65 Available
PCOM-B705GT-D1732TE AB1-3P66 Available
PCOM-B705GT-D1715TER AB1-3P67 Available
PCOM-B705GT-D1712TR AB1-3P68 Available

Accessory

Accessory
Accessory Ordering P/N Status
Cooler B9972180 Available
Heat Sink B830C060 Available
Heat Spreader B830C070 Available
