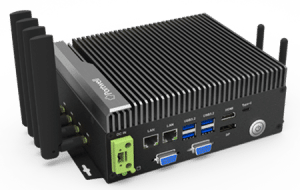

PEDB-2311

COMING SOOM
Designed for edge computing, fanless gateway, Intel® Core™ Ultra 5 135U or Ultra 7 165U, 8-bit I/O, 2 DDR5 64 GB, M.2 E/M/B, 1 GbE, 2.5 GbE, two isolated LAN

Features

  • Support Intel® Core™ Ultra 5 processor 135U/ Ultra 7 processor 165U
  • Support 1x 8-bit Digital I/O
  • Two SO-DIMM support DDR5 DRAM up to 64GB
  • Support One M.2 E Key, One M.2 M Key, One B Key
  • Support 1x 1 GbE LAN , 1x 2.5 GbE LAN , 2x Isolated LAN (Optional)

The PEDB-2311 is builds on the Intel® Core™ Ultra 5 processor 135U / Ultra 7 processor 165U and supports two DDR5 memory slots and M.2 NVMe for storage. It features one Gigabit Ethernet port, one 2.5 Gigabit Ethernet ports, two optional isolated LAN ports, one M.2 E Key slot, one M.2 B Key slot, and one M.2 M Key socket. The PEDB-2311 is a fanless box PC designed for IoT gateway applications.

System
Processor Intel® Core™ Ultra 5 processor 135U / Ultra 7 processor 165U, vPro supported
BIOS AMI uEFI BIOS (SPI ROM)
Memory 2 x SO-DIMMs, max. 64GB, DDR5
Storage Devices 1 x 2280 M.2 M-key for PCIe storage (PCIe x4)
Watchdog Timer Yes
TPM 1 x TPM 2.0 (Optional)
Expansion
  • 1 x 3042/3052 M.2 B-key connected to Nano-SIM socket for LTE/5G/ISO LAN (PCIe x1)
  • 1 x 2230 M.2 E-key for WIFI 6E/BT 5.2/Hailo (USB 2.0/ PCIe x1/ CNVi)
  • 1 x 2280 M.2 M-key for PCIe storage (PCIe x4)



External I/O
Serial Ports 4 x COM ports (4 x RS-232/422/485)
Display
  • 1x DP, support DP 1.4 up to 4096 x 2160 @ 60 Hz
  • 1x HDMI®, support HDMI® 2.0 up to 4K x 2K @ 60 Hz
USB 5 x USB 3.2 Gen2 (4 x Type-A, 1 x Type-C)
Ethernet
  • 1 x 1GbE (Intel® I219LM)
  • 1 x 2.5GbE (Intel® I226IT)
  • 2 x ISO LAN (Optional)
GPIO 1x 8-bit Digital I/O



Power Supply Unit
Power Input DC 9~36V via 2-pin terminal block connector



Environmental
Operation Temperature -20~60 with 0.5 m/s air flow
Storage Temperature -40°C ~ 85°C
Relative Humidity 40°C, 85%RH non-condensing
Operation Vibration 3 Grms/5-500Hz, IEC 60068-2-6
Operation Shock 30G, 11 msec, IEC 60068-2-27
OS Win 11 IOT LTSC



Mechanical
Dimension 180x150x70.1mm
Weight TBD
Mounting Wall mounting , Din-Rail mounting (Optional)
