PEDB-6211

EOL
Harness the power of the NXP i.MX 8M Plus with its robust Quad-core ARM Cortex A53 and complementary ARM Cortex M7.

Features

  • Support NXP i.MX 8M Plus, 4 Core ARM Cortex A53 1.6GHz + 1 Core ARM Cortex M7 800MHz
  • GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan,OpenCL 1.2;GC520(2D)
  • Onboard 4GB LPDDR4,1xSD Slot
  • Support 2x 1 Gbe LAN ,1 x USB 3.0 Type A, 2 x USB 2.0 Type A, 1xHDMI®, 1x RS-232/CAN, 1x RS-485
  • Support 1xM.2 E Key, 1xM.2 B Key,TPM 2.0
Model PEDB-6211
Sys Form Factor Proprietary
General
Processor NXP i.MX 8M Plus, Quad Arm Cortex-A53 @1.8GHzz + 1 Core ARM Cortex M7 800MHz
Memory Support up to 4GB LPDDR4 on board
AI Accelerator Hailo Hailo-8 (M.2 Key E)
Graphic Controller GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan,
OpenCL 1.2;GC520(2D)

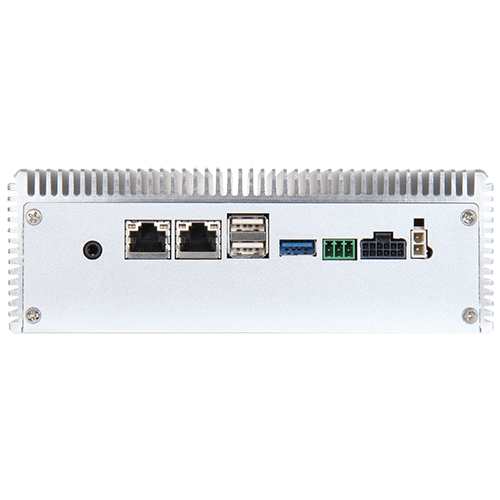

Rear I/O
Audio 1 x Audio Jack Line-out
Ethernet 2 x GbE
Serial Port 1 x COM Ports Support RS-232/CAN 2.0
1 x COM Ports Support RS-485
USB 1 x USB 3.2 Gen1 Type A
2 x USB 2.0 Type A
GPIO 1 x 4-bit Digital I/Os
Display 1 x HDMI® 1.2 1920 x 1080@60Hz
Other Power Button Reset Button
Antenna 4 x SMA Antenna holesfor Wi-Fi/LTE/
SIM Slots 1 x Nano-SIM
Expansion I/O
M.2 1 x B Key w/ USB 2.0
1 x E Key w/ Gen3 x1 UART
SD 1 x micro SD socket
Security TPM 2.0 (BOM Option)
ME/Environment
Dimension (WxDxH) 415 x 182 x 280 mm (16.34″ x 7.17″ x 11.02″ )
Power Supply AT mode/ ATX mode 15~30V
Mounting Wall Mount
Vibration IEC 60068-2-64
Shock IEC-60068-2-27
IP Protection whole enclosure
Operating Temperature -20 ~ 70 °C (-4.0 ~ 158.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Cooling Fanless
Relative Humidity 5% to 90%, non-condensing
OS Yoto Poky 5.0, Linux Kernel 6.6.23
