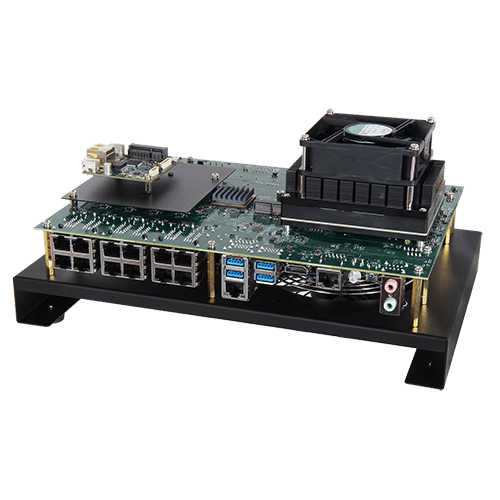

PEDK-5230-AGX

EOL
The product is powered by NVIDIA® Jetson AGX Orin™, delivering up to an impressive 200 TOPS with its 1792-core NVIDIA Ampere GPU, featuring 56 Tensor Cores. It offers extensive connectivity options, including 12 x POE GbE, 1 x GbE, 1 x 10 GbE, and 8 x USB 3.2 Type A, alongside a USB Type C for OS flash and OTG Micro B for debugging. With Allxon OOB, enjoy 24/7 remote management, ensuring seamless operation and control.
PEDK-5230-AGX

Features

  • Embedded with NVIDIA® Jetson AGX Orin™ up to 200 TOPS
  • 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
  • Supports 12 x POE GbE, 1 x GbE,1 x 10 GbeE
  • Supports 8 x USB 3.2 Type A,1 x USB Type C(OS Flash),1 x OTG Micro B USB(Debug)
  • Allxon OOB support for 24/7 remote control
Datasheet
Features
1. Embedded with NVIDIA® Jetson AGX Orin™ up to 200 TOPS
2. 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
3. Supports 12 x POE GbE, 1 x GbE,1 x 10 GbeE
4. Supports 8 x USB 3.2 Type A,1 x USB Type C(OS Flash),1 x OTG Micro B USB(Debug)
5. Allxon OOB support for 24/7 remote control
Model PEDK-5230-AGX
Form Factor Proprietary
General
Processor 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Storage 1 x eMMC up to 64GB
Graphic Controller 1792-core NVIDIA Ampere c GPU with 56 Tensor Cores
Rear I/O
Audio 1 x Audio Jack Line-out , Mic-in
Ethernet 1 x 1 GbE Lan
1 x 1 x10 GbE Lan
12 x 1 GbE Lan POE
Serial Port 2 x COM Ports Support RS-232/422/485
2 x COM Ports Support CANbus FD
USB 8 x USB 3.2 Gen2 Type A
1 x USB 3.2 Gen2 Type C on Rear
1 x USB 2.0 Type B on Rear
GPIO 1 x 8-bit Digital I/Os
Display 1 x HDMI® 2.0 3840 x 2160@60Hz
Expansion I/O
M.2 1 x M.2 M Key (2280) support PCIe x4
1 x M.2 E Key (2230) support PCIe x1, USB
1 x M.2 B Key USB
SD 1 x micro SD socket
SIM Type Nano SIM slot
ME/Environment
Dimension 270 x 190 mm (10.63″ x 7.48″)
Power Supply Terminal Block 19~24V
Operating Temperature -20 ~ 60 °C (-4.0 ~ 140.0 °F)
Storage Temperature -40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity 5% to 95%, non-condensing
OS Jetpack 6.2
Ordering Guide
Category Product Description P/N Status
Carrier Board PEDK-5230 AB1-3U04Z (R).PEDK-5230 Carrier Board with Nividia Jetson AGX Orin 32G SOM Dev Kit InDevelopment

Ordering Guide

Category Product P/N Status Description
Carrier Board PEDK-5230 AB1-3U04Z InDevelopment (R).PEDK-5230 Carrier Board with Nividia Jetson AGX Orin 32G SOM Dev Kit
