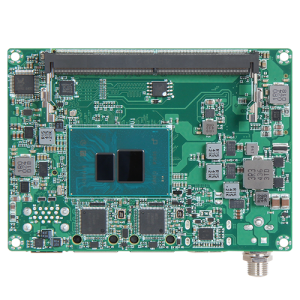

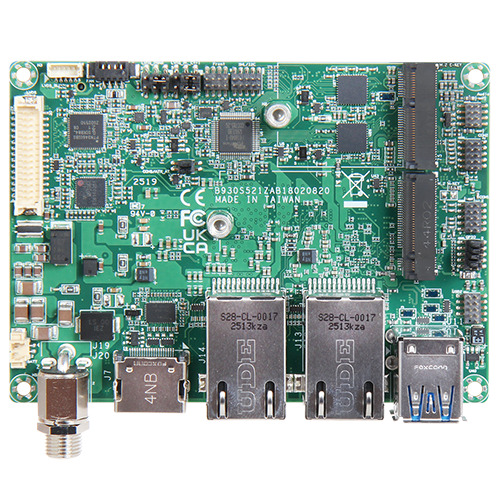

PICO-8020

Intel^® Twin Lake N150, Amston Lake X7433RE/X7211RE; DDR5 4800 SODIMM up to 16GB; 2x GbE, 2x USB 3.2; HDMI^® 2.0, LVDS; 12–24V DC; TPM 2.0

PICO-8020

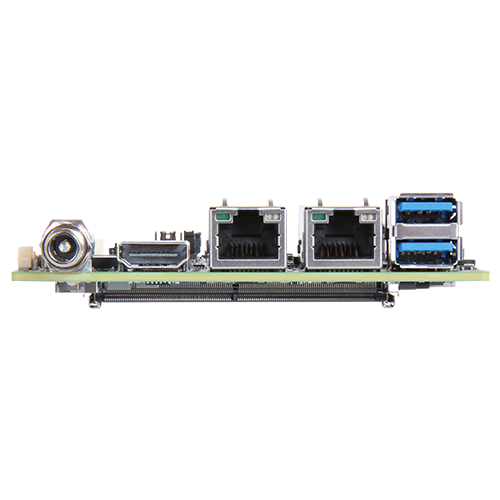

PICO-8020 - Image 2

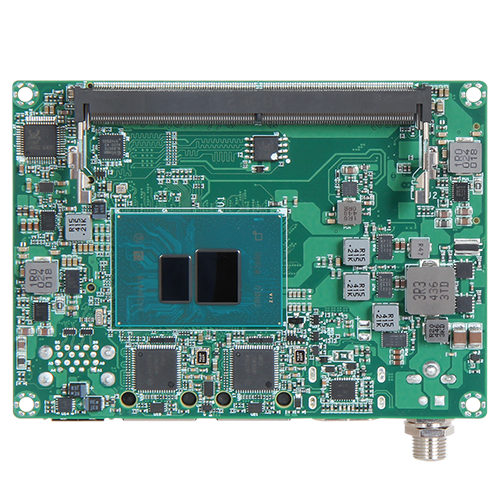

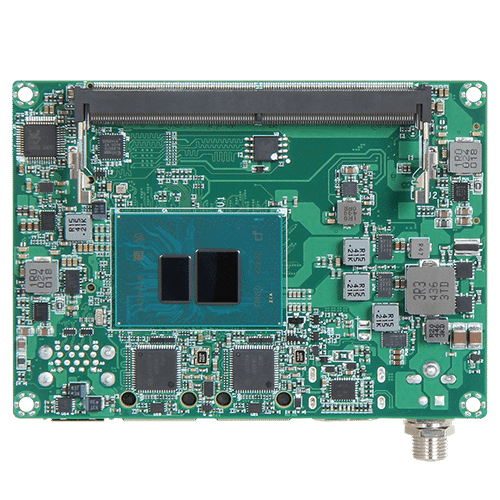

PICO-8020 - Image 3

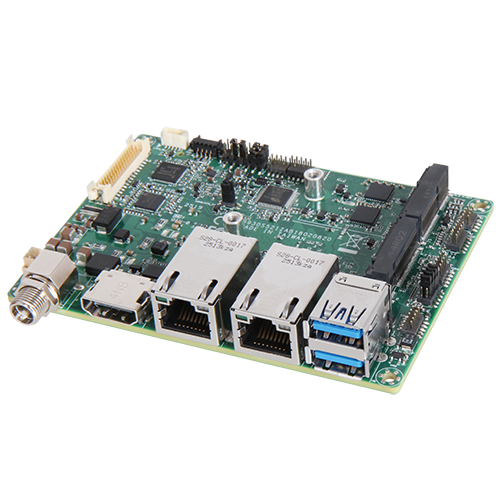

PICO-8020 - Image 4

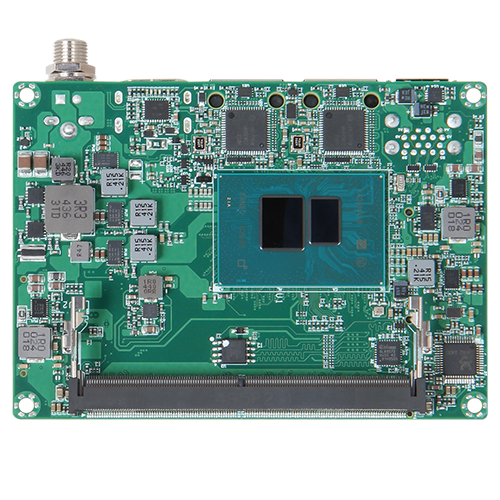

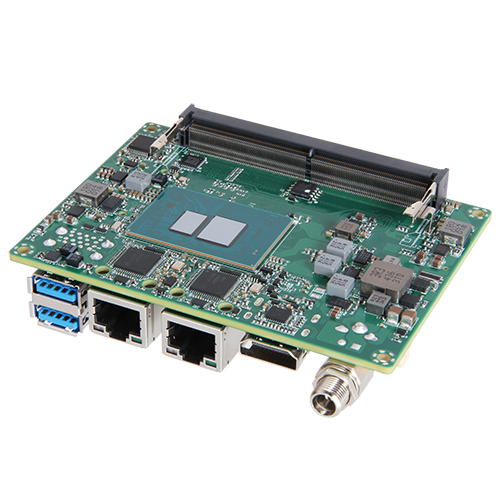

PICO-8020 - Image 5

Features

Intel Twin Lake N150& Amston Lake X7433RE/X7211RE
1x HDMI^® 2.0 , 1x LVDS, 2x GbE, 2x USB 3.2
DDR5 4800 SODIMM up to 16GB
1x M.2 2242 M-Key, 1x M.2 2230 E-Key
2x COM, GPIO, TPM2.0, 12~24V DC Jack

Model	PICO-8020
Form Factor	Pico-ITX

General
Processor	Intel^® Processor N150
	Intel Atom^® x7433RE Processor
	Intel Atom^® x7211RE Processor
BIOS	AMI uEFI BIOS
Memory	Support up to 16GB DDR5 4800 MT/s on 1 SODIMM
Watchdog Timer	Programmable, time out period from 1 s to 255 s
Graphic Controller	Intel^® Graphics

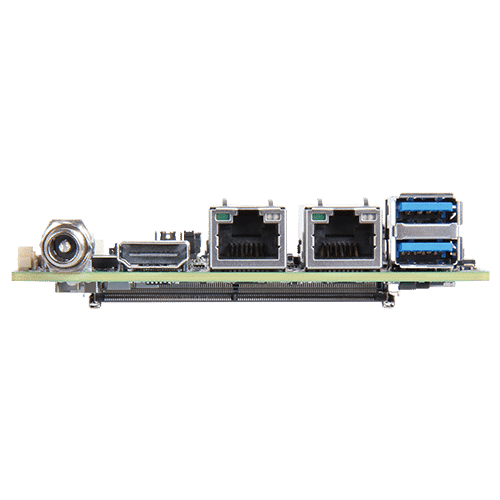

Rear I/O
Ethernet	2 x Intel I210AT with GbE LAN 10/100/1000 Mbps
USB	2 x USB 3.2 Gen2 Type A
Display	1 x HDMI^® 2.0 3840 x 2160@60Hz

Expansion I/O
Serial Port	2 x Pin Header support RS-232/422/485
USB	2 x USB 2.0 Pin Header
M.2	1 x M.2 E Key 2230 support USB 2.0, PCIe x1
M.2	1 x M.2 M Key 2242 support SATA, PCIe x1
Security	TPM 2.0 ( On Board IC )
Display	1 x LVDS 1920 x 1200@60Hz (On Board Header)
GPIO	1 x 8-bit Digital I/Os
Others	1 x I2C
Others	1 x SMBus

ME/Environment
Dimension	100 x 72 mm (3.9″ x 2.8″)
Power Supply	DC Jack 12~24V
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F) ( N150 )
	-40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7433RE )
	-40 ~ 85 °C (-40.0 ~ 185.0 °F) ( x7211RE )
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	5% to 95%, non-condensing
Certification	CE/FCC UKCA
OS	Windows 11 IoT Enterprise 2024 LTSC, Ubuntu 24.04
Portwell Special Feature	PET

Ordering Guide

Category	Product	P/N	Status	Description
Pico-ITX	PICO-8020-N150	AB1-3U28	available	(R).PICO-8020-N150. Intel Twin Lake SoC. w/DDR5/HDMI^®/GbE/TPM/COM/USB/Audio
Pico-ITX	PICO-8020-X7433	AB1-3T73	available	(R).PICO-8020-X7433RE. Intel Asmton Lake SoC. w/DDR5/HDMI^®/GbE/TPM/COM/USB/Audio
Pico-ITX	PICO-8020-X7211	AB1-3U31	available	(R).PICO-8020-X7211RE. Intel Asmton Lake SoC. w/DDR5/HDMI^®/GbE/TPM/COM/USB/Audio
