| Model | PNAC-32300 | ||||
|---|---|---|---|---|---|
| Sys Form Factor | Proprietary | ||||
| General | ||||||
|---|---|---|---|---|---|---|
| Processor | Intel® 9th Gen Atom Amston Lake x7809C(8C) | |||||
| BIOS | AMI uEFI BIOS | |||||
| Memory | Support up to 16GB on 1 non-ECC/ECC SODIMM | |||||
| Storage | 1 x M.2 Key-M 2242 Slot (SATA) | |||||
| 1 x eMMC 32G on board | ||||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||

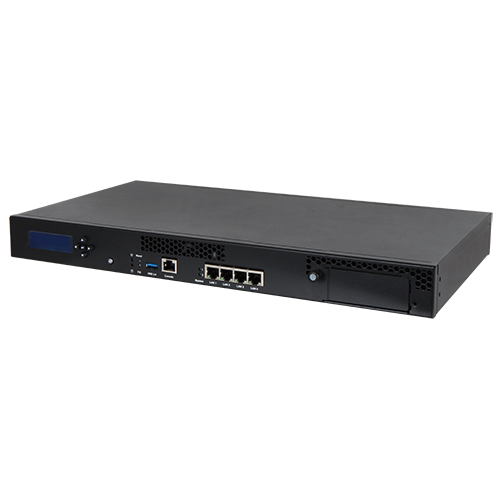

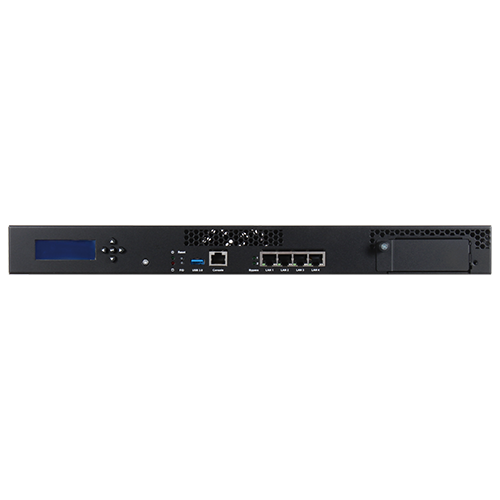

| Rear I/O | ||||||
|---|---|---|---|---|---|---|
| Ethernet | 4 x 2.5 GbE w/ Intel WGI226IT Bypass | |||||
| USB | 1 x USB 3.2 Gen1 Type A on Rear | |||||
| Other | Power Button, Reset Button | |||||
| Console Port | 1 x RJ45 | |||||
| LED | Bypass, HDD, Power | |||||
| Antenna | SMA Antenna holes for 5G / LTE / Wi-Fi | |||||
| SIM Slots | 2 x Micro-SIM | |||||
| EZIO(LCD Panel) | 2 x 16 Characters,5 x Keypads | |||||
| Expansion I/O | ||||||
|---|---|---|---|---|---|---|
| M.2 | 1 x E Key w/ 3030/3042 PCIe Gen3 x2 | |||||
| Security | TPM 2.0 | |||||
| Expansion slot | 1 x OCP 3.0 TSFF | |||||
| ME/Environment | ||||||
|---|---|---|---|---|---|---|
| Dimension (WxDxH) | 438 x 250 x 44 mm (17.24″ x 9.84″ x 1.73″ ) | |||||
| Weight | 3.13 kg | |||||
| Power Supply | AT mode/ ATX mode 80~264V Single | |||||
| Mounting | Rack Mount | |||||
| Operating Temperature | 0 ~ 40 °C (32.0 ~ 104.0 °F) | |||||
| Storage Temperature | -40 ~ 70 °C (-40.0 ~ 158.0 °F) | |||||

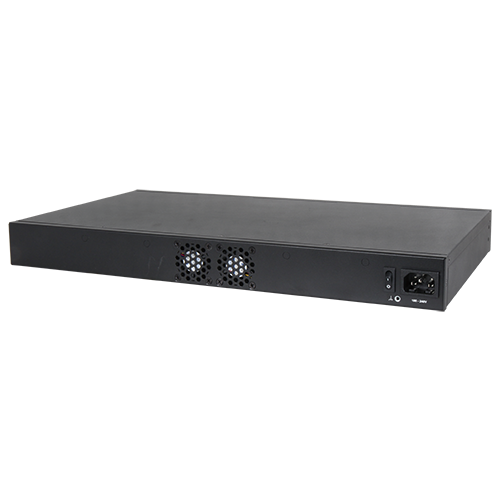

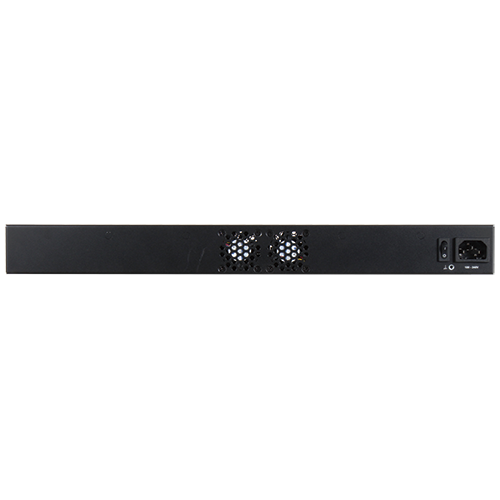

| Cooling | System 2 x Fan | |||||
| Relative Humidity | 5% to 90%, non-condensing | |||||
| Certification | CE, FCC Class B Part18, CE LVD Safety (EN32638-1) | |||||
| Portwell Special Feature | PET, NODE.X | |||||
| Category | Product | P/N | Description |
|---|---|---|---|
| csn_system | PNAC-32300 | AS1-3414 | (R).ATO.PNAC-32300, ASL x7809C SKU, Rackmount 1U Fan System. With PNAB-1211-x7809C-32. 80~264VAC Input. 2.5GbE RJ45*4. OCP 3.0 Slot*1. DDR5 SO-DIMM*1 |
