PSYS-508-Q470

Barebone system with 10th Generation Intel® Core™ i3/i5/i7/i9 based ATX board
PSYS-508-Q470

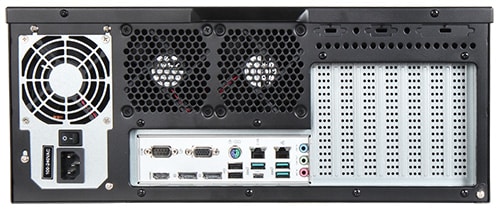

PSYS-508-Q470 back

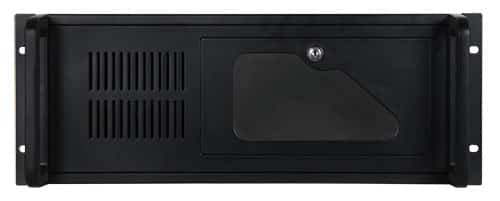

PSYS-508-Q670 front

Features

  • Support 10th Generation Intel® Core™ i9/i7/i5/i3 processors
  • Four U-DIMM support DDR4 DRAM up to 128GB
  • Support two DP, one HDMI®, one VGA display
  • Support One M.2 B Key, One M.2 E Key, One M.2 M Key
  • Support 1 x COM ports (1x RS-232/422/485)
Datasheet
Documents & Downloads

PSYS 508 Q470 builds on Intel ® Q470E chipset and takes advantages of 10th Generation Intel® Core™ i3/ i5/i7/i9 processors technologies that can support 4 x DDR4 memory and 6 x SATA Ports for storage. With the advantage of 600w 80 plus gold ATX PSU, will be a flexible platform for factory automation, AOI, surveillance application.

Specifications
System
CPU Supporting Intel® 10th -Gen Core™ i9/i7/i5/i3/Pentium/Celeron CPU
(LGA1200 socket, Max 65W TDP)
BIOS AMI uEFI BIOS (SPI ROM)
Memory 4 x U-DIMMs, max. 128GB, DDR4
Storage 6 x SATA 6.0 Gb/s ports, Supports RAID 0/1/5/10
Watchdog Timer Yes
TPM 1 x SPI TPM header
Expansion
  • 1x M.2 E key, type 2230 support PCIex1 / USB 2.0 (Antenna Kit
    support)
  • 1x M.2 B key, type 2260/2280/3042/3052 support PCIe x1 / USB 3.2
    Gen1 / USB 2.0
  • 1x M.2 M key, type 2242/2260/2280 support PCIe x4 / SATA mode.
  • 1x PCIe 3.0/2.0 x16 slot ( x16 mode / x8 mode )
  • 1x PCIe 3.0/2.0 x4 slot ( x4 mode )
  • 1x PCIe 3.0/2.0 x16 slot ( x8 mode )
  • 1x PCIe 3.0/2.0 x4 slot ( x4 mode )
  • 1x PCIe 3.0/2.0 x4 slot ( x2 mode )
  • 2x PCI slots
Internal I/O
  • 5x COM ports ( 1 x RS-232/422/485, 4 x RS232 )
  • 1x USB 3.2 Gen1 connector supports additional 2x USB 3.2 Gen 1 ports
  • 2x USB 2.0 vertical connector
  • 1x GPIO ( connector kit supported)



External I/O
External I/O
Serial Port 1 x COM ports (1 x RS-232/422/485)
Display
  • 2x DP, support DP 1.4a, up to 4096 x 2160 @ 60Hz
  • 1x HDMI®, up to 4096 x 2160 @ 30Hz
  • 1x VGA, up to 1920 x 1200 @ 60Hz
USB
  • 4 x USB 3.2 Gen 2 ( 3 x Type A+ 1 x Type C)
  • 2 x USB 2.0 ( Type A )
Audio Realtek ALC887 HDA codec
Ethernet
  • 1 x GbE ( Intel® I219LM )
  • 1 x 2.5 GbE ( Intel® I225V)



Power Supply Unit
Power Supply Unit
Power Input ATX 600w 80 plus gold



Environmental
Environmental
Operation Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 40°C, 85%RH non-condensing
Operation Vibration 0.75 Grms/5-500Hz, IEC 60068-2-6
Operation Shock 10G, 11 msec, IEC 60068-2-27
OS Win11 IOT LTSC



Mechanical
Mechanical
Dimension 430 (W) x 450 (D) x 177 (H) mm
Weight 18 Kg
Mounting Rackmount

Ordering Guide

Ordering Guide
AS1-3384 (R).PSYS-508-Q470. 4U Rackmount Barebone System with Intel Core-i 10th MB & 600w PSU
