ROBO-8117G2AR-Q870

Intel^® Core™ Ultra Series; 2x DDR5 6400 ECC SO-DIMM to 96GB; 2.5GbE; 6x USB 3.2 Gen2; mini-DP, 2x HDMI^®

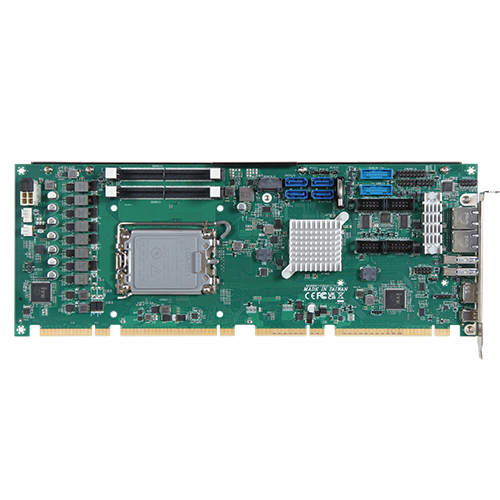

ROBO-8117G2AR-Q870

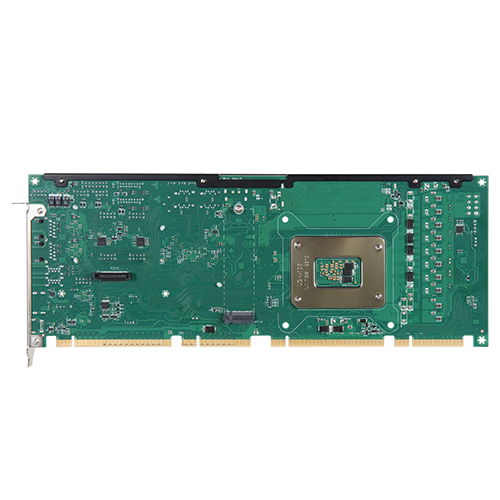

ROBO-8117G2AR-Q870 - Image 2

ROBO-8117G2AR-Q870 - Image 3

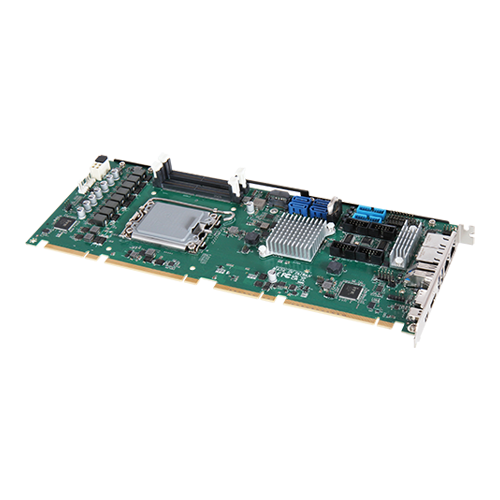

ROBO-8117G2AR-Q870 - Image 4

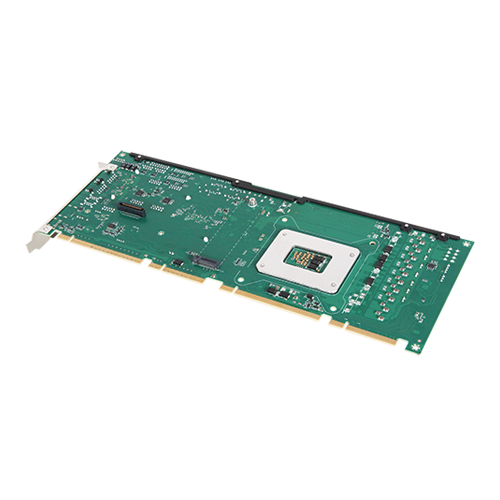

ROBO-8117G2AR-Q870 - Image 5

Features

Support Intel^® Core™ Ultra Series processors in LGA1851 package
Delivers up to 96GB maximum DDR5 6400 ECC SO-DIMM on two sockets
Supports multiple display by mini-DP and dual HDMI^®
High speed dual 2.5Gigabit Ethernet based on PCI express x 1, high bandwidth I/O interface
Support two USB 3.2 Gen2 on REAR I/O

General
Processor	Intel^® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP
Chipset	Intel^® Q870
BIOS	AMI uEFI BIOS
Memory	Support up to 96GB DDR5 6400 MT/s on 2 ECC SODIMM
Storage	6 x SATA Ports Support RAID 0, 1, 5, 10
Watchdog Timer	Programmable, time out period from 1 s to 255 s
Graphic Controller	Intel^® Xe LPG Graphics OpenGL 4.5

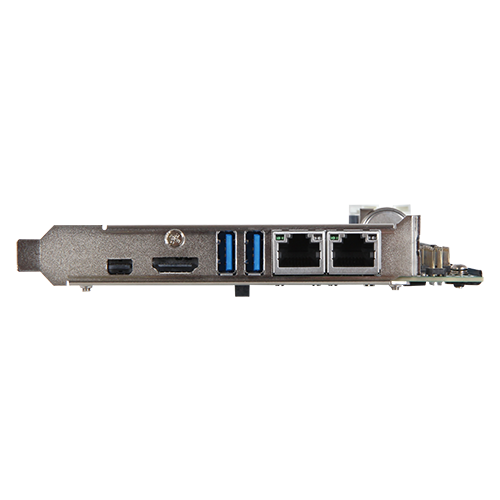

Rear I/O
Ethernet	2 x Intel I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps
USB	2 x USB 3.2 Gen2 Type A
Display	1 x Mini-DP 7680 × 4320@60Hz
	1 x HDMI^® 2.1 4096 x 2160@60Hz
	1 x HDMI^® 2.1 4096 x 2160@60Hz

Expansion I/O
PCIe	1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8 mode )
	1 x PCIe Gen4 x4
	1 x PCIe Gen4 x4
PCI	4 x PCI 33 MHz
Audio	1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC888
Serial Port	2 x Pin Header support RS-232
Serial Port	2 x Pin Header support RS-232/422/485
USB	8 x USB 2.0 Pin Header
	2 x USB 3.2 Gen2 Pin Header
	2 x USB 3.2 Gen2 Vertical Type A
M.2	1 x M.2 M Key 2280 support
Security	TPM 2.0 ( On Board IC )
GPIO	1 x 8-bit Digital I/Os

ME/Environment
Dimension	339 x 126 mm (13.33″ x 4.98″)
Power Supply	AT mode/ ATX mode 12V
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	5% to 95%, non-condensing
Certification	CE/FCC UKCA
OS	Windows 10 IoT Enterprise 2021 LTSC, Windows 11 IoT Enterprise 2024 LTSC, RedHat Enterprise, Ubuntu 24.04, Ubuntu 22.04, Linux Kernel 6.6.23
Portwell Special Feature	PET

Ordering Guide

Category	Product	P/N	Description
PICMG 1.3 Full-Size	ROBO-8117G2AR-Q870	AB1-3T08
