RUBY-D813-H610E-D5

Intel^® 12th/13th/14th Gen Core™; 2x DDR5 U-DIMM up to 96GB; 2x GbE; 6x COM, 4x USB 3.2, 4x SATA III; 2x PCIe x16, 1x PCIe x1, 4x PCI; 1x M.2 Type M

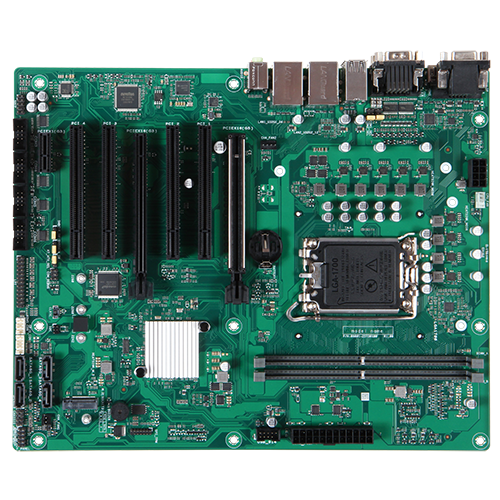

RUBY-D813-H610E-D5

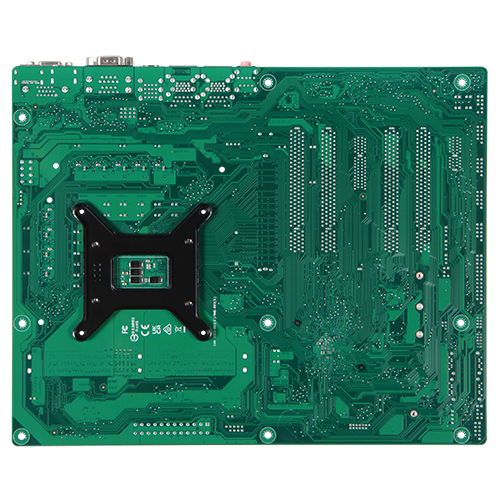

RUBY-D813-H610E-D5 - Image 2

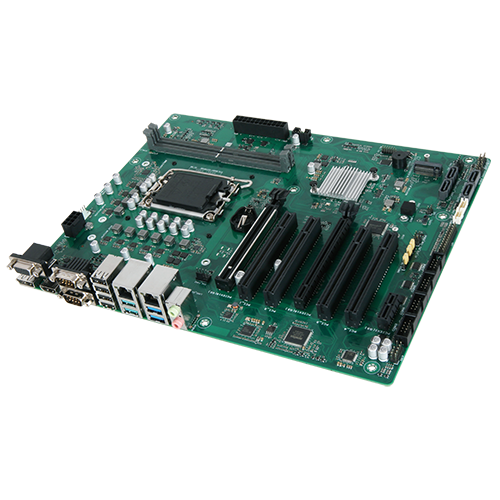

RUBY-D813-H610E-D5 - Image 3

RUBY-D813-H610E-D5 - Image 4

RUBY-D813-H610E-D5 - Image 5

Features

Intel^® 12th/13th/14th Gen Core™ Processors CPU in LGA1700 package
Two U-DIMM support DDR5 Non-ECC DRAM up to 96GB
Support dual Ethernet, 6x COM Ports, 4x USB 3.2 Ports, 4x SATA III Ports and Audio
Two PCIe x16 (1x PCIe x4 signal), one PCIe x1 slot, four PCI slots
One M.2 (Type M) type 2242/2260/2280

Model	RUBY-D813-H610E-D5
Form Factor	ATX

General
Processor	12/13/14th Generation Intel^® Core™ i3/i5/i7/i9 Processors, LGA 1700 socket
Chipset	Intel^® H610E
BIOS	AMI uEFI BIOS
Memory	Support up to 96GB DDR5 5600 MT/s on 2 non-ECC UDIMM
Storage	4 x SATA Ports
Watchdog Timer	Programmable, time out period from 1 s to 255 s
Graphic Controller	Intel^® UHD Graphics

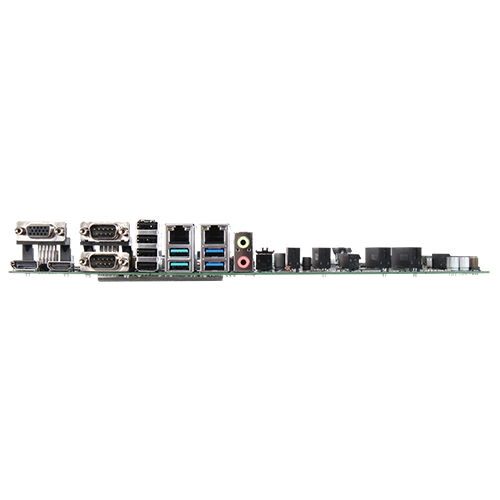

Rear I/O
Audio	1 x Audio Jack Line-out w/ Realtek ALC897
Audio	1 x Audio Jack Mic-in w/ Realtek ALC897
Ethernet	1 x Intel I219V with GbE LAN 10/100/1000 Mbps
Ethernet	1 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Serial Port	2 x COM Ports Support RS-232/422/485
USB	2 x USB 3.2 Gen2 Type A
	2 x USB 3.2 Gen1 Type A
	4 x USB 2.0 Type A
Display	1 x HDMI^® 2.0
	1 x DP 1.2
	1 x VGA

Expansion I/O
PCIe	1 x PCIe Gen5 x16
	1 x PCIe Gen3 x16 ( x 4 signal )
	1 x PCIe Gen3 x1
PCI	4 x PCI
Serial Port	4 x Pin Header support RS-232
USB	1 x USB 2.0 Pin Header
M.2	1 x M.2 M Key 2242 2260 2280 support PCIe x1/ SATA
Security	TPM SPI header
GPIO	1 x 8-bit Digital I/Os

ME/Environment
Dimension	305 x 244 mm (12.00″ x 9.61″)
Power Supply	AT mode/ ATX mode
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	10% to 95%, non-condensing
Certification	CE/FCC
OS	Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2021 LTSC, Ubuntu 24.04, RedHat Enterprise, Fedora Workstation, OpenSUSE
Portwell Special Feature	PET

Ordering Guide

Category	Product	P/N	Status	Description
ATX	RUBY-D813-H610E-D5	AB1-3U27		(R).RUBY-D813-H610E-D5.ATX.IMB.LGA1700.CPU. H610E.w/DDR5/VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
