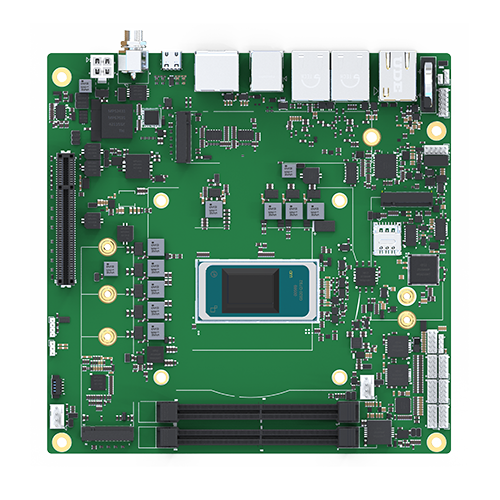

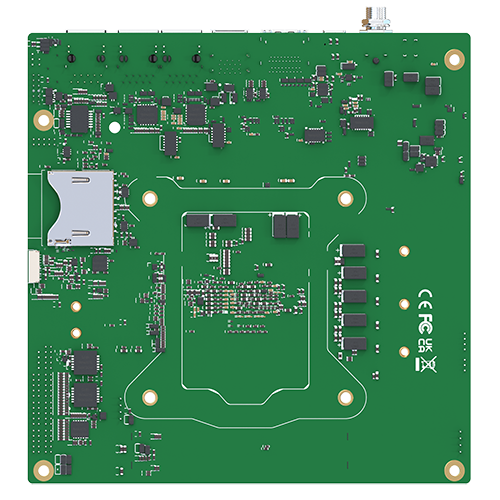

| General | ||||||||
|---|---|---|---|---|---|---|---|---|
| Processor | Intel® Core™ Ultra Processors (Series 3), 65W TDP | |||||||
| BIOS | AMI uEFI BIOS | |||||||
| Memory | Support up to 64GB DDR5 7200 MT/s on 2 non-ECC SODIMM | |||||||
| Watchdog Timer | Programmable, time out period from 1 s to 255 s | |||||||
| Graphic Controller | Intel® Xe LPG Graphics | |||||||

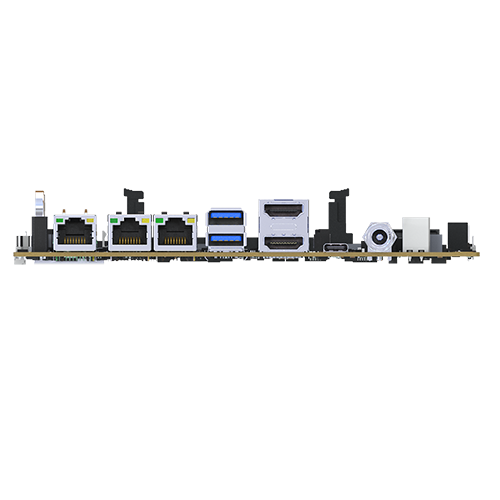

| Rear I/O | ||||||||
|---|---|---|---|---|---|---|---|---|
| Ethernet | 1 x Intel I210AT with GbE LAN 10/100/1000 Mbps (Support OOB W/ BIOS recovery, Power On/Off, Reset, SOL) | |||||||
| 2 x Intel I226V with 2.5 GbE LAN 10/100/1000/2500 Mbps | ||||||||
| USB | 2 x USB 3.2 Gen2 Type A | |||||||
| 1 x USB4 Type C (Support DP 1.4a display output) | ||||||||
| Display | 2 x HDMI® 2.1 8192 × 4320@60Hz | |||||||
| Expansion I/O | ||||||||
|---|---|---|---|---|---|---|---|---|
| PCIe | 1 x PCIe Gen5 x8 Open Slot | |||||||
| Audio | 1 x Pin Header support Line-in , Line-out , Mic-in w/ Realtek ALC897 | |||||||
| Serial Port | 4 x Pin Header support RS-232 | |||||||
| 2 x Pin Header support RS-232/422/485 | ||||||||
| USB | 2 x USB 2.0 Pin Header | |||||||
| M.2 | 1 x M.2 M Key 2242 2260 2280 support PCIe x4 | |||||||
| 1 x M.2 M Key 2280 support PCIe x4 | ||||||||
| 1 x M.2 B Key 3042 3052 support USB 2.0, USB 3.2, PCIe x1 | ||||||||
| SIM | 1 x Nano SIM slot | |||||||
| Security | TPM 2.0 ( On Board IC ) | |||||||
| GPIO | 1 x 8-bit Digital I/Os | |||||||
| Others | 1 x SMBus | |||||||
| ME/Environment | |
|---|---|
| Dimension | 170 x 170 mm (6.69″ x 6.69″) |
| Power Supply | DC Jack , 4-pin ATX connector 12~24V |
| Operating Temperature | 0 ~ 60 °C (32.0 ~ 140.0 °F) |
| Storage Temperature | -40 ~ 85 °C (-40.0 ~ 185.0 °F) |
| Relative Humidity | 5% to 95%, non-condensing |
| Certification | CE/FCC |
| OS | Windows 11 IoT Enterprise 2024 LTSC |
| Portwell Special Feature | OOB API, PET, RPET |
| Category | Product | P/N | Description |
|---|---|---|---|
| Mini-ITX | WADE-807A | TBD | (R).WADE-807A. Mini-ITX ESB.Intel Panther Lake H484 4Xe. w/o ECC BGA.w/DDR5 SO-DIMM /USB-C/HDMI®/Triple GbE/COM/Audio/USB |
