WADE-8214-Q870

Intel^® Core Ultra 9/7/5, 65W; Dual SO-DIMM DDR5 up to 96GB; PCIe Gen5x16, M.2 Key E/CNVI, M.2 Key M NVMe; Dual Ethernet, 5x COM, 11x USB 3.2, 4x SATA III

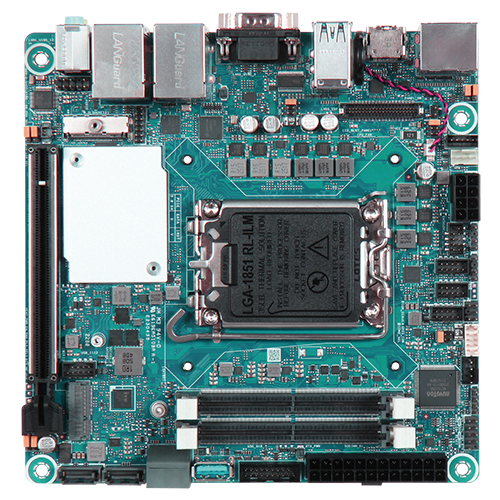

WADE-8214-Q870

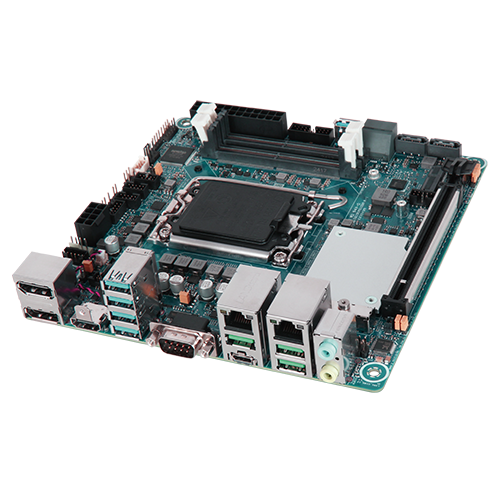

WADE-8214-Q870 - Image 2

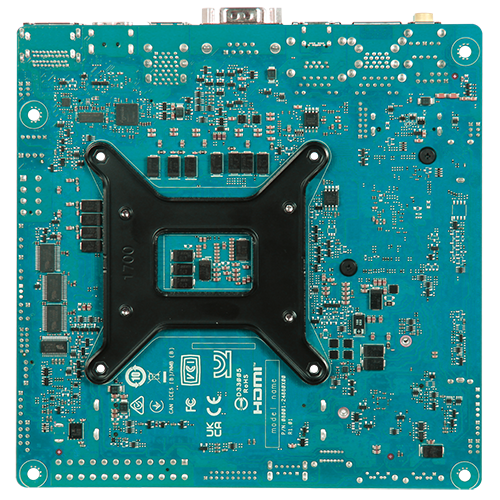

WADE-8214-Q870 - Image 3

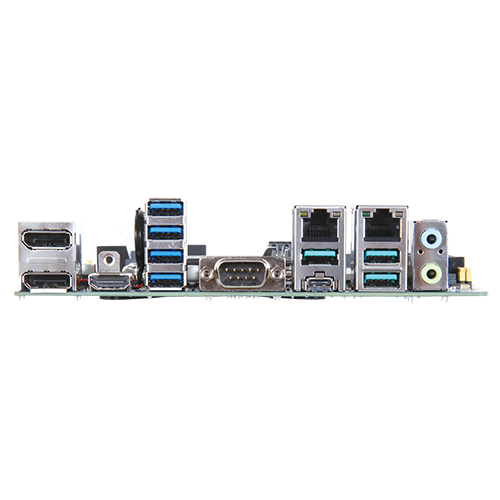

WADE-8214-Q870 - Image 4

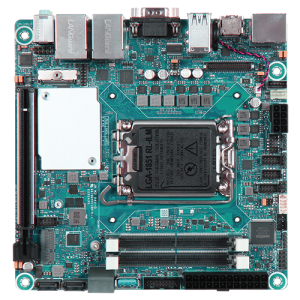

WADE-8214-Q870 - Image 5

Features

Support up to 65W Intel^® Core Ultra 9/7/5 processors (Series2)
Supports Intel^® 800 Series Chipset
Dual SO-DIMM support DDR5 DRAM up to 96GB
Supports Dual Ethernet, 5x COM ports, 11x USB 3.2 ports, 4x SATA III ports and Audio
Supports one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe and CNVI for Wireless and one M.2 Key M 2280 with PCIe5.0 for NVMe

Model	WADE-8214-Q870
Form Factor	Mini-ITX

General
Processor	Intel^® Core™ Ultra Processors (Series 2), LGA 1851 socket, 65W TDP
Chipset	Intel^® Q870
BIOS	AMI uEFI BIOS
Memory	Support up to 96GB DDR5 6400 MT/s on 2 non-ECC SODIMM
Storage	4 x SATA Ports RAID 0, 1, 5, 10
Watchdog Timer	Programmable, time out period from 1 s to 255 s
Graphic Controller	Intel^® Graphics OpenGL 4.5

Rear I/O
Audio	1 x Audio Jack Line-in w/ Realtek ALC897
Audio	1 x Audio Jack Line-out w/ Realtek ALC897
Ethernet	1 x Intel I210AT with GbE LAN 10/100/1000 Mbps
Ethernet	1 x Intel I226LM with 2.5 GbE LAN 10/100/1000/2500 Mbps
Serial Port	1 x COM Ports Support RS-232/422/485
USB	3 x USB 3.2 Gen2 Type A on Bracket
	4 x USB 3.2 Gen1 Type A on Bracket
	1 x USB 3.2 Gen2 x2 Type C on Bracket (Support DP 1.4a display output)
Display	2 x DP 1.4 4096 x 2160@60Hz
Display	1 x HDMI^® 2.1 4096 x 2160@60Hz

Expansion I/O
PCIe	1 x PCIe Gen5 x16 ( 1 x16 mode, 2 x8, 1×8; 2×4 mode )
Serial Port	1 x Pin Header support RS-232/422/485
Serial Port	3 x Pin Header support RS-232
USB	1 x USB 3.2 Gen1 Vertical Type A
USB	2 x USB 3.2 Gen1 Pin Header
M.2	1 x M.2 E Key 2230 support CNVi, PCIe x1
M.2	1 x M.2 M Key 2280 support PCIe x4
Security	TPM SPI header
Display	1 x eDP / LVDS (On Board Header)
GPIO	1 x 8-bit Digital I/Os

ME/Environment
Dimension	170 x 170 mm (6.69″ x 6.69″)
Power Supply	AT mode/ ATX mode
Operating Temperature	0 ~ 60 °C (32.0 ~ 140.0 °F)
Storage Temperature	-40 ~ 85 °C (-40.0 ~ 185.0 °F)
Relative Humidity	5% to 95%, non-condensing
Certification	CE/FCC UKCA
OS	Windows 11 IoT Enterprise 2024 LTSC, Windows 10 IoT Enterprise 2022 LTSC
Portwell Special Feature	PET, RPET

Ordering Guide

Category	Product	P/N	Description
Mini-ITX	WADE-8214-Q870	AB1-3U52	(R).WADE-8214-Q870.Mini-ITX.ESB.Q870E. w/o ECC LGA1851.w/DDR5 SO-DIMM/DP/HDMI^®/Dual GbE/COM/Audio/USB
