| Model |
WMP-22T-PIS-L IP0N (STD) |
WMP-22T-PIS-L IP0N (ISO) |
| Main System |
| CPU / Chipset |
FCBGA1744 13th generation Intel® Core i7/i5/i3 and Celeron processor (15W max.)/ Soc |
| Graphic |
Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU) |
| RAM |
Two 4800 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB |
| OS Support |
Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise LTSC 64 bit |
| Storage |
1 x M.2 (M Key, 2280) with PCIe x4 for SSD |
| Expansion |
1x M.2 E key 2230, |

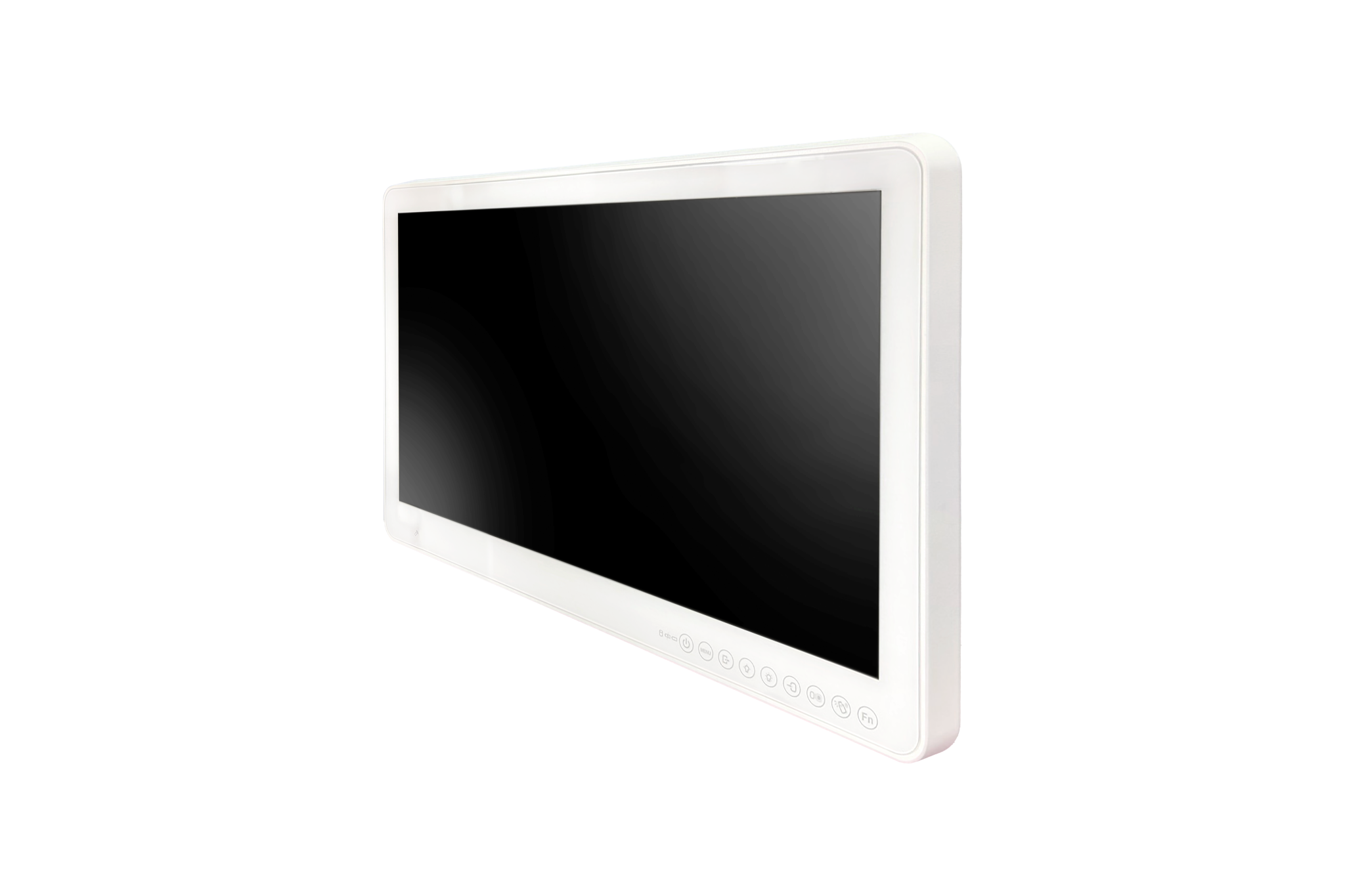

| Display Size |
21.5” 16:9 |
| Display |
1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ) |
| Touch Screen |
Full flat projective capacitive touch panel / Light Transmission: >88% / Hardness: 6H pencil, pressure 750g/45° / Life: ≥50,000 times |

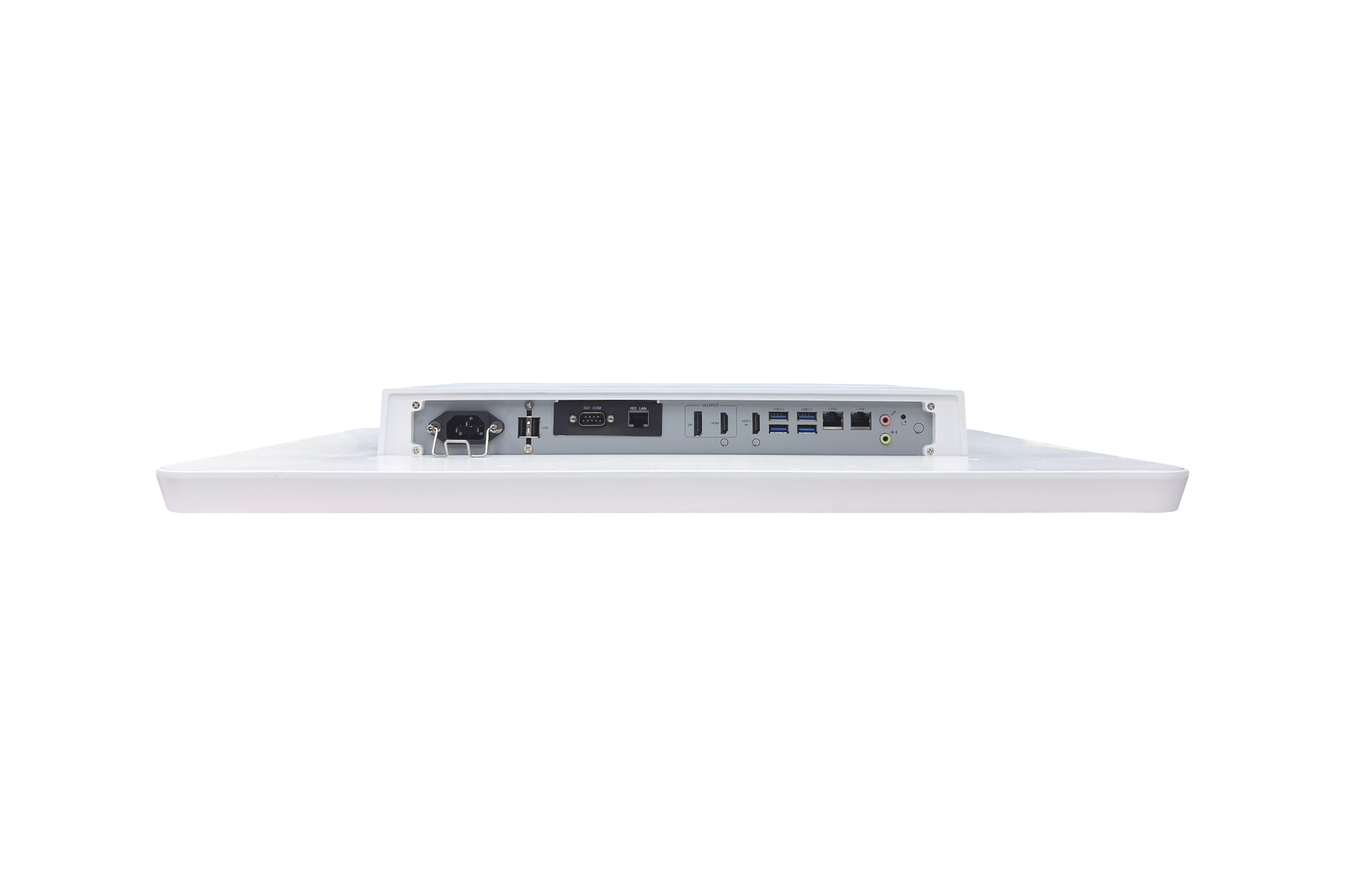

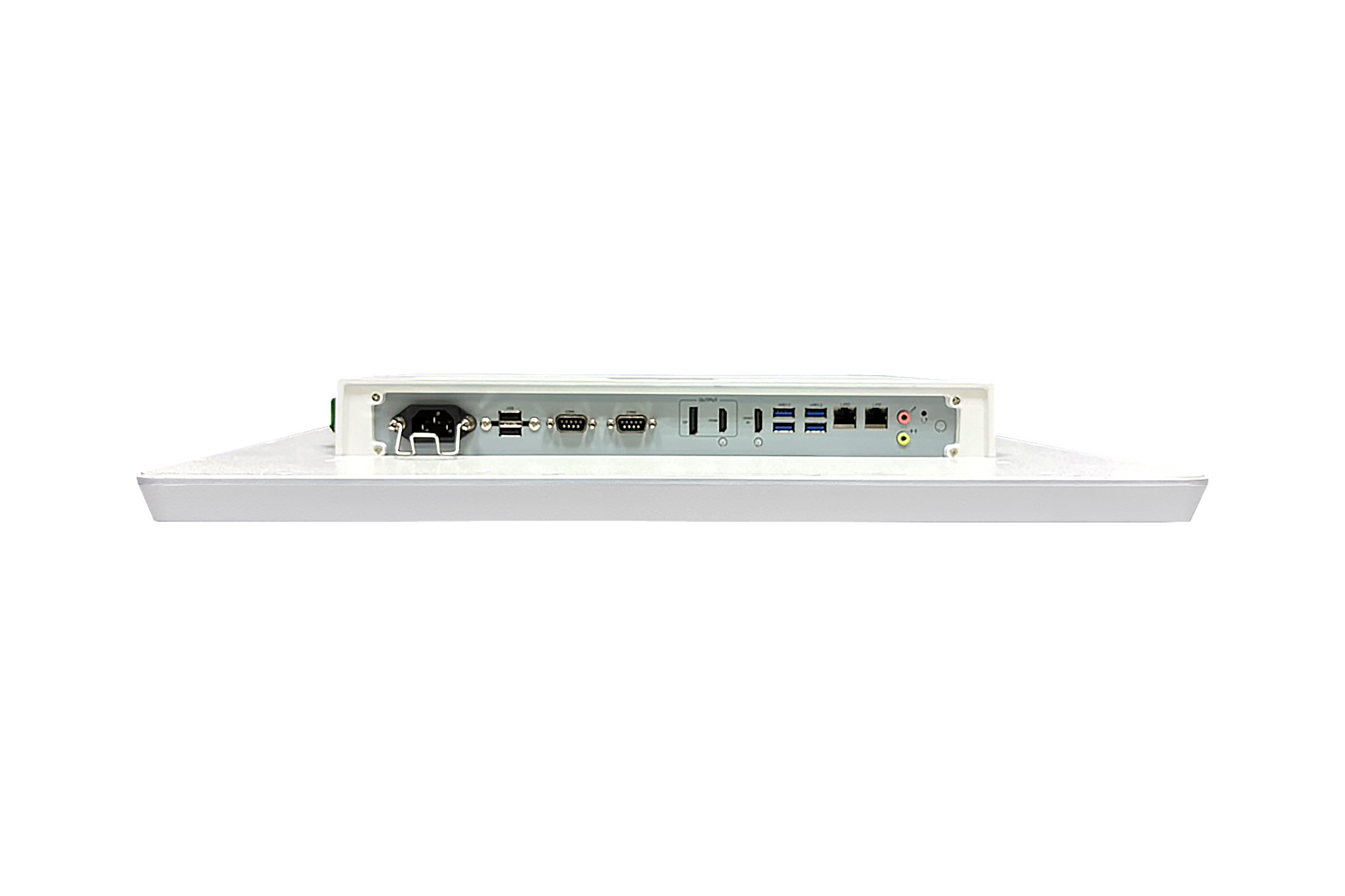

| I.O. Ports |
| USB |
4 x USB 3.2 2 x USB 2.0 |
4 x USB 3.2 2 x USB 2.0 |
| COM |
1 x RS232, 1 x RS232/RS422/RS485 |
1 x ISO RS232/RS422/RS485 |
| LAN |
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V |
1 x RJ45 1Gbps Intel® I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel® I226V, 1 x ISO RJ45 1Gbps |
| Audio |
2 x 3.5mm phone jack connector (Line-out, Mic-In), 2 x Waterproof 2W speaker |
| Video Out |
1 x DP 1.4a/DP++, 1 x HDMI® 2.0b |
| Video In |
1 x HDMI®-in (without audio); Support in S5 Mode |
| Control Hot Key (L to R) |
Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function |
| Mechanical and Environmental |
| Cooling |
Fanless |
| Power Adapter |
AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 250W |
| Temperature |
Operating Temperature: 0~35℃ (IEC60068-2-78) Storage Temperature: -20~60℃ |
| Humidity |
Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating |
Front: IP65, Rear: IP54 with optional cable cover attached |

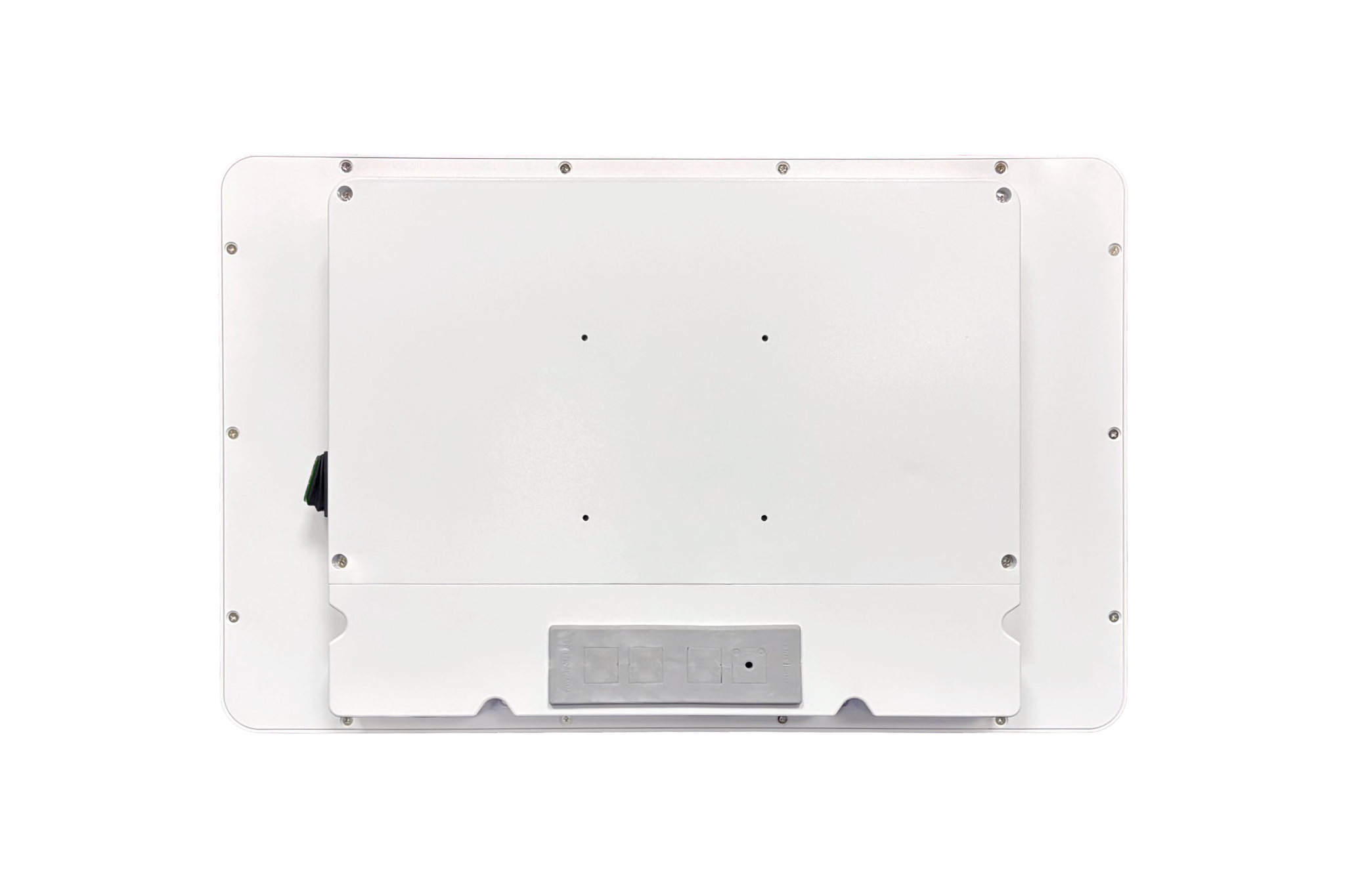

| Housing |
Rear: Aluminum Alloy Body / White (Touch) / Bacteria resistant |

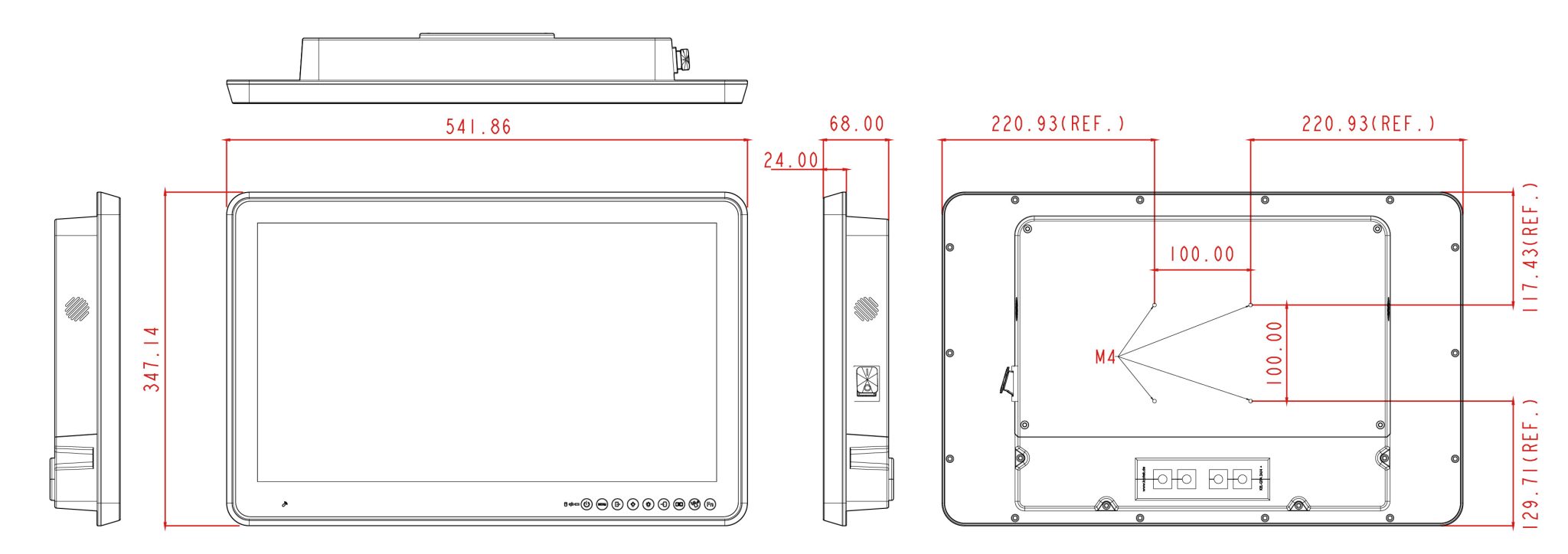

| Dimensions (Net) |
541.9 mm (H) x 347.1 mm (V) x 68 mm (T) |
| Weights (Net) |
7.8 kg |
| Mounting |
VESA 100 x 100 |
| Certification |
- CE: EN 60601-1-2:2015 (V4.1)
- EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020
- VCCI: 2016-11, Class B
- FCC: Part 18 Class B / ISO 14971
- UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021) (By project)
- cUL: CAN/CSA-C22.2 No. 60601-1:14) (By project)
|
