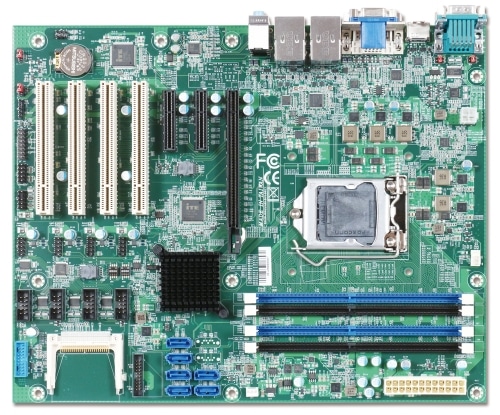

RUBY-D718VG2AR

Leading Desktop Intel^® 7^th and 6^th Gen Core™ processors (former Kaby Lake/ Skylake) ATX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports

特點

Intel^® 7^th and 6^th Gen Core™ Processors support
4x Long-DIMMs support DDR4 ECC(C236) / Non-ECC(Q170) SDRAM up to 64GB
1x PCIe x16, 2x PCIe x4, 4x PCI slots

Description

RUBY-D718VG2AR is based on Intel^® Q170/ C236 chipset and desktop processor SKU like Intel^® 7^th and 6^th Gen Core™ i3, i5 and i7 Processors. Built with PCI and PCIe expansions, it’s suitable for Medical, Industrial automation, and Digital Signage application.

Specification

Specifications
MODEL	RUBY-D718VG2AR
Form Factor	ATX
CPU	Intel^® 7^th and 6^th Gen Core™ Processors CPU in LGA1151 package
Chipset	Intel^® Q170/H110/C236
BIOS	AMI UEFI
Memory	4x DDR4 DIMM up to 64GB
Expansion	4x PCI slots 1x PCIe x16 slot 2x PCIe x4 slots
Display	VGA/DVI-D/HDMI^®
Audio	Realtek ALC886 HDA codec
LAN	2x GbE
Serial Port	1x RS-232/422/485 5x RS-232
USB	6x USB3.0 8x USB2.0
Storage Devices	6x SATA III (C236 supports 8x SATA III)
GPIO	8 bit
Others	PS/2 KB & MS
Dimension	304.8 x 243.8mm

採購指南

Ordering Guide
AB1-3D29	(R).RUBY-D718VG2AR ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI^®/DVI/Dual GbE/COM/Audio/USB
AB1-3D77	(R).RUBY-D718VG2AR-C236 ATX.IMB.LGA1151.CPU.C236.DDR4/VGA/ HDMI^®/DVI/Dual GbE/COM/Audio/USB
AB1-3G14	(R).RUBY-D718VG2AR-kBL ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI^®/DVI/Dual GbE/COM/Audio/USB
AB1-3G15	(R).RUBY-D718VG2AR-C236-kBL ATX.IMB.LGA1151.CPU.Q170.DDR4/VGA/ HDMI^®/DVI/Dual GbE/COM/Audio/USB

包裝列表

Packing List
One RUBY-D718VG2AR ATX Industrial Main Board
One Installation DVD
One SATA III cable
One I/O shield

Support

(Documents & Downloads)

Catalog

Catalog RUBY-D718VG2AR | Catalog 30 3 月, 2021

1.83 MB 2734 Downloads

BIOS

BIOS BIOS_RUBY-D718VG2AR-C236_R1_00_E13.zip | BIOS R1.00.E13 31 7 月, 2023

14.43 MB 34 Downloads

BIOS BIOS_RUBY-D718VG2AR_R1_00_E13.zip | BIOS R1.00.E13 31 7 月, 2023

14.57 MB 30 Downloads

BIOS BIOS_RUBY-D718VG2AR-KBL_R1_00_E9.zip | BIOS R1.00.E9 31 7 月, 2023

14.59 MB 23 Downloads

BIOS BIOS_RUBY-D718-Q170-KBL_R100E9_Update.zip | BIOS R100E9 8 6 月, 2023

Optimization SIOTEST for CPU speed issue

14.6 MB 52 Downloads

BIOS BIOS_RUBY-D718VG2AR-Q170_R100E10_Update.zip | BIOS R1.00.E10 24 1 月, 2022

01. Base On “Portwell, Inc. RUBY-D718VG2AR-Q170 BIOS Rev.:R1.00.E9 ( 06152021 )”
02. Remove Audio ALC662
03. Support Audio ALC897

7.72 MB 1747 Downloads

BIOS BIOS_RUBY-D718VG2AR-Q170-KBL_R100E7_Update | BIOS R100E7 12 11 月, 2021

BIOS Update

7.72 MB 1921 Downloads

BIOS BIOS_RUBY-D718VG2AR-C236-KBL_R100E7_Update | BIOS R100E7 12 11 月, 2021

BIOS Update

7.64 MB 1763 Downloads

BIOS BIOS_RUBY-D718VG2AR-C236-KBL_R100E9_Update | BIOS R1.00.E9 9 11 月, 2021

Optimization SIOTEST for CPU speed issue

14.44 MB 1495 Downloads

BIOS BIOS_RUBY-D718VG2AR-C236-KBL_R100E6_Update | BIOS R1.00.E6 22 6 月, 2021

BIOS Version: Portwell, Inc. RUBY-D718VG2AR-C236-KBL BIOS Rev.:R1.00.E6 ( 06152021 )

7.64 MB 2256 Downloads

BIOS BIOS_RUBY-D718VG2AR-Q170_R100E9_Update | BIOS R1.00.E9 22 6 月, 2021

BIOS Version: Portwell, Inc. RUBY-D718VG2AR-Q170 BIOS Rev.:R1.00.E9 ( 06152021 )

7.72 MB 2286 Downloads

1
2

Driver

Driver Driver_RUBY-D718VG2AR_Ethernet.zip | Driver 29 4 月, 2016

185.47 MB 1261 Downloads

Driver Driver_RUBY-D718VG2AR_ME.zip | Driver 29 4 月, 2016

21.10 MB 1377 Downloads

Driver Driver_RUBY-D718VG2AR_SerialIO.zip | Driver 29 4 月, 2016

3.49 MB 1377 Downloads

Driver Driver_RUBY-D718VG2AR_XHCI.zip | Driver 29 4 月, 2016

3.15 MB 1313 Downloads

Driver Driver_RUBY-D718VG2AR_Chipset.zip | Driver 29 4 月, 2016

2.59 MB 1362 Downloads

User's Manual

User’s Manual Manual_RUBY-D718VG2AR_V1.1_20170120.pdf | Manual 1.1 3 5 月, 2021

User’s Manual

7.87 MB 706 Downloads

User’s Manual Manual_RUBY-D718VG2AR_R1.3.pdf | Manual 1.3 3 5 月, 2021

User’s Manual

3.40 MB 624 Downloads

User’s Manual Manual_RUBY-D718VG2AR_R10.pdf | Manual 10 3 5 月, 2021

User’s Manual

3.22 MB 604 Downloads

User’s Manual Manual_RUBY-D718VG2AR_R1.2.pdf | Manual 1.2 3 5 月, 2021

User’s Manual

3.20 MB 616 Downloads

User’s Manual Manual_RUBY-D718VG2AR_1.3.pdf | Manual 1.3 3 5 月, 2021

User’s Manual

3.20 MB 636 Downloads

Software

Software Software_Unified-PET_20160901.zip | Software 20160901 20 9 月, 2016

PET tool

10.5 MB 1757 Downloads
