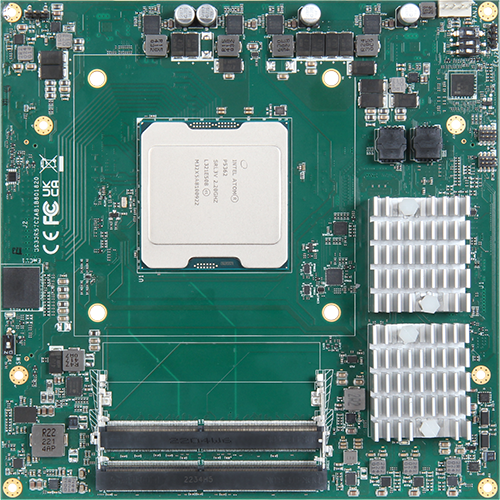

The PCOM-B801GT, a COM-HPC Server Size D module powered by the Intel® P5300 family with up to 24 cores and 83W TDP, supports up to 4 SODIMM slots and offers wide temperature range options across all SKUs. With Intel QuickAssist Technology (QAT) of up to 100Gbps (select SKUs), it accelerates cryptographic and compression tasks.
The PCOM-B801GT is ideal for demanding applications such as Ethernet Switch Control Plane, Outdoor 5G Small Cell, and SD-WAN, providing up to 8x 10GbE KR ports or an optional 4x 25GbE KR for versatile networking options. Additionally, it supports onboard NVMe storage with either one x4 or two x2 configurations as options, ensuring high-speed data access and flexibility
| General | |||||
| Product | PCOM-B801-GT | ||||
| Form Factor | CCOM-HPC Server Size D (160mm x 160mm) | ||||
| Processor | Intel Atom® P5300 series | ||||
| P5322 | P5332 | P5342 | P5352 | P5362 | |
| Core / Thread Count | 8C/8T | 12C/12T | 16C/16T | 20C/20T | 24C/24T |
| Base Frequency | 2.2 GHz | 2.2 GHz | 2.2 GHz | 2.2 GHz | 2.2 GHz |
| Boost Frequency | 2.2 GHz | 2.2 GHz | 2.2 GHz | 2.2 GHz | 2.2 GHz |
| Cache | 9MB | 13.5MB | 18MB | 22.5MB | 27MB |
| Integrated Ethernet / QAT | 100G / 50G | 100G / 50G | 100G / 100G | 100G / 100G | 100G / 100G |
| NBASE-T | Intel® I226IT | ||||
| Processor TDP | 55W | 61W | 71W | 78W | 83W |
| ECC Memory Supported | Yes | ||||
| Memory | 3 x SO-DIMM | 3 x SO-DIMM | 3 x SO-DIMM | 4 x SO-DIMM (backside 8mm high) |
4 x SO-DIMM (backside 8mm high) |
| Temperature Range | -40 ~ 85 °C | -40 ~ 85 °C | -40 ~ 85 °C | -40 ~ 85 °C | -40 ~ 85 °C |
| I/O Interface | ||
| SATA | 2 x SATA III | |
| USB | 4 x USB 3.2 Gen1/USB 2.0 | |
| Ethernet | 8 x 10Gbe KR (option 4 x 25Gbe KR) 2.5GbE LA |
|
| Serial I/O | GPIO | 12 bit GPIO |
| I2C | Baud Rate : 100KHz | |
| SMBus | Baud Rate : 100KHz | |
| UART | 2 Serial Port (TX/RX/CTS/RTS) | |
| PCI Express |
|
|
| Display | N/A | |
| Security | TPM 2.0 | |
| MECHANICAL & ENVIRONMENT | |
| Dimension | 160mm x 160mm |
| Power DC IN | Normal: +12V DC AT/ATX mode |
| Storage Temperature | -40°C to 85°C |
| Operating Temperature | -40°C to 85°C |
| Certification | Contact us |
| MTBF | Contact us |
| Vibration | Contact us |
| OS | Linux |
| Product | Ordering P/N | Status |
|---|---|---|
| PCOM-B801GT-P5322 | AB1-3S67Z | In Development |
| PCOM-B801GT-P5332 | AB1-3S68Z | In Development |
| PCOM-B801GT-P5342 | AB1-3S69Z | In Development |
| PCOM-B801GT-P5352 | AB1-3S71Z | In Development |
| PCOM-B801GT-P5362 | AB1-3S70Z | In Development |
| Accessory | Ordering P/N | Status |
|---|---|---|
| Heat spreader | TBD | In Development |
| Heat sink | TBD | In Development |
| 2U cooler | TBD | In Development |
