PCOM-B800GT

COM-HPC Server, Size E Module with Intel® Xeon® D-2700 and D-2800 Server-Class processors support 8 DIMM slots and 2.5GbE Base-T

Features

  • Intel® Xeon® D-2700 and D-2800 Processors for Edge IoT Computing and nerworking communication
  • AI/Deep Learning Accelerate Data Analytics with Intel® AVX-512 and VNNI
  • 8x 10G KR, 4x USB2.0/3.2 Gen 2×1, 2x SATAIII, 2x UART
  • Eight DIMM Slots Design and Maximum 1024GB Memory Support
  • Selected SKUs Supported -40 ~ 85 °C for Extended Temperature Application
  • New Gen of Intel® QAT up to 100G (D-2800series)

Video

Play Video

Description

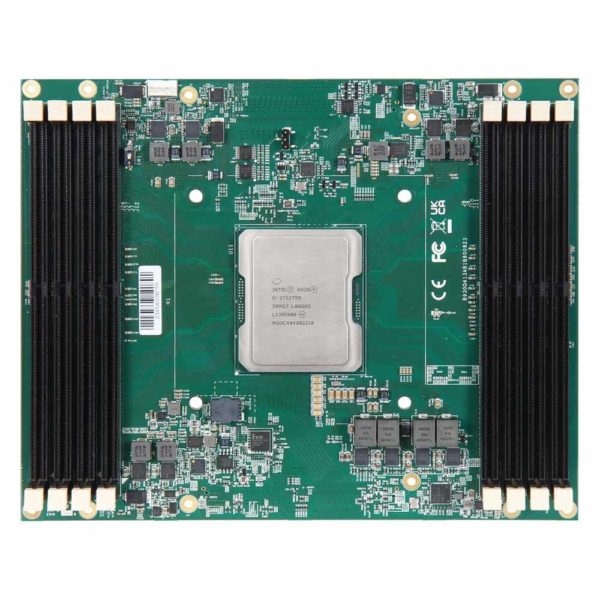

PCOM-B800GT, a COM-HPC Server, size E module (200mm x 160mm) based on Intel® Xeon® D-2700 and D-2800 processors.The platform includes Intel® Deep Learning Boost (Intel® DL Boost), to speed processing of int8 workloads with options from 4 cores(D-2700) up to 22 cores(D-2800). MultiOS support including real-time, operating systems and hypervisor support, make you consolidate workloads onto a single device. Also support New Gen of Intel® QAT that provide better acceleration up to 100G(D-2800series).

PCOM-B800GT, provide up to 8x 10G KR interface, 32x lanes PCIe 4.0, 16x lanes PCIe 3.0, TPM 2.0, and 8x DDR4 DIMM slots supporting maximum 1024GB memory size to fulfill virtualization work consolidated edge environment.

Specification

Specifications
General
Product PCOM-B800-GT
Form Factor COM-HPC Server Type E ( 200mm x 160mm)
Processor Intel® Xeon® D-2700 series
D-2712T D-2733NT D-2752TER D-2775TE D-2796TE
Core / Thread Count 4 8 12 16 20
Base Frequency 1.9 GHz 2.1 GHz 1.8 GHz 2.0 GHz 2.0 GHz
Boost Frequency 2.4 GHz 2.6 GHz 2.1 GHz 2.4 GHz 2.4 GHz
Cache 15MB 15MB 20MB 25MB 30MB
Integrated Ethernet / QAT 50G/NA 50G/50G 50G/NA 100G/NA 100G/NA
NBASE-T Intel® I226LM Intel® I226IT
Processor TDP 65W 80W 77W 100W 118W
BIOS AMI BIOS
ECC Memory Supported Yes
Memory 8x DDR4 Long-DIMM up to 1024GB 2933MT/s
Temperature Range 0 ~ 60 °C 0 ~ 60 °C -40 ~ 85 °C -40 ~ 85 °C -40 ~ 85 °C



Specifications
Processor Intel® Xeon® D-2800 series (Coming soon)
D-2832NT D-2843NT D-2876NT D-2896NT D-2896TER D-2899NT
Core / Thread Count 8 10 16 20 20 22
Base Frequency 2.10 GHz 2.00 GHz 2.00 GHz 2.00 GHz 2.00 GHz 2.20 GHz
Boost Frequency 2.6 GHz 2.6 GHz 2.5 GHz 2.6 GHz 2.5 GHz 2.8 GHz
Cache 15 MB 15 MB 20 MB 30 MB 30 MB 30 MB
Integrated Ethernet / QAT 50G/50G 50G/50G 100G/50G 100G/100G 100G/NA 100G/100G
NBASE-T Intel® I226LM Intel® I226IT Intel® I226LM
Processor TDP 70 W 80 W 100 W 117 W 110 W 135 W
BIOS AMI BIOS
ECC Memory Supported Yes
Memory 8x DDR4 Long-DIMM up to 1024GB 2933MT/s
Temperature Range 0 ~ 60 °C 0 ~ 60 °C 0 ~ 60 °C -0 ~ 60 °C -40 ~ 85 °C -0 ~ 60 °C



I/O Interface
I/O Interface
SATA 2x SATA III
USB 4 x USB 3.2 Gen1/USB 2.0
Ethernet 4x 25/10G KR / 8x 10G KR (Depend on SKU)
2.5GbE LAN
Serial I/O GPIO GPIO 12 bit GPIO
I2C Frequency : 100kHz – 1MHz
SMBus Frequency : 100kHz – 1MHz
UART 2 Serial Port (TX/RX/CTS/RTS)
PCI Express
  • 32x PCIe 4.0 from IIO
  • (#16 ~#31, #32 ~ #47)
Display N/A
Security TPM 2.0



MECHANICAL & ENVIRONMENT
MECHANICAL & ENVIRONMENT
Dimension 200mm x 160mm
Power DC IN Normal: +12V DC
AT/ATX mode
Storage Temperature -40°C to 85°C
Operating Temperature -40°C to 85°C
(Selected SKU 0°C to 60°C)
Certification Contact us
MTBF Contact us
Vibration Contact us
OS Windows10 IoT Enterprise LTSC
Windows Server
Linux

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B800GT-D2796TE AB1-3L51Z In Development
PCOM-B800GT-D2775TE AB1-3P11Z In Development
PCOM-B800GT-D2752TER AB1-3P12Z In Development
PCOM-B800GT-D2733NT AB1-3P13Z In Development
PCOM-B800GT-D2712T AB1-3P14Z In Development
PCOM-B800GT-D2832NT AB1-3S58Z In Development
PCOM-B800GT-D2843NT AB1-3S60Z In Development
PCOM-B800GT-D2876NT AB1-3S59Z In Development
PCOM-B800GT-D2896NT AB1-3S61Z In Development
PCOM-B800GT-D2896TER AB1-3S57Z In Development
PCOM-B800GT-D2899NT AB1-3S56Z In Development

Accessory

Accessory
Accessory Ordering P/N Status
Cooler for 2U B9972140 In Development
