COM Express ^®

Standardized Computer-on-Module Platform

COM Express^® defines standardized form factors and pinouts for Computer-on-Modules. Each module integrates core computing functions such as the processor, memory, graphics, storage interfaces, and high-speed connectivity, while a carrier board provides application-specific I/O and system expansion. COM Express is available in three standardized form factors:

Mini: 84 × 55 mm
Compact: 95 × 95 mm
Basic: 125 × 95 mm

Explore COM Express Module Types

COM Express Type 6 Modules – High-performance graphics and I/O expansion

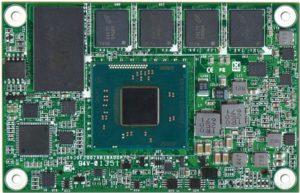

COM Express Type 10 Mini Modules – Compact, power-efficient embedded computing
COM Express Type 7 Modules – Server-grade networking and headless computing
COM Express Carrier Boards – Evaluation and deployment platforms

Need technical guidance? Read our comprehensive COM Express Module Types Comparison White Paper.

PCOM-B65C

COM Express Type 6 Compact Size Module with AMD Ryzen™ Embedded 8000 Processor, DDR5 SO-DIMM, DDI, eDP, LVDS, VGA, PCIe Gen 4, USB 3.2 Gen2, discrete TPM 2.0, SATA, Out-of-Band (OOB) Management

PCOM-C60F

ATX COM Express Type 6 carrier board featuring USB4, PCIe Gen4, and -40°C to 85°C wide-temp support.

PCOM-B65B

Intel^®PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

PCOM-B646

COM Express^® Type6 Compact size module with Intel Atom^® x7000E/RE Series SoC DDR5 SO-DIMM, DDI, PCIe Gen 3, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-BA03

Intel Atom^® x7000 series SoC based on Type 10 mini COM-Express^® module with LPDDR5 SDRAM

PCOM-B702GT

Intel Atom^® C3000/C3000-Refresh series SoC based on Type 7 Compact COM-Express^® module with up to Dual Channels and 2x DDR4 ECC SO-DIMM Socket

PCOM-B65A

COM Express Type 6 Basic size module with Intel^®New Gen Core Ultra 200 Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B659

COM Express Type6 Compact size module with Intel^®13^th Gen P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B706GT

COM-Express^® Type 7 Basic module with AMD^® Embedded RyzenTM V3000 CPU Family equipped on-module NVME SSD

PCOM-B705GT

COM Express Type 7 Basic Module based on Intel^®Xeon^® D-1700 Processors with Three Channels and Four SO-DIMM slots

PCOM-B658VGL

COM Express Type6 Basic size module with Intel^®13^th Gen H Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-C605R

Mini-ITX size carrier board for COM Express Type6 module

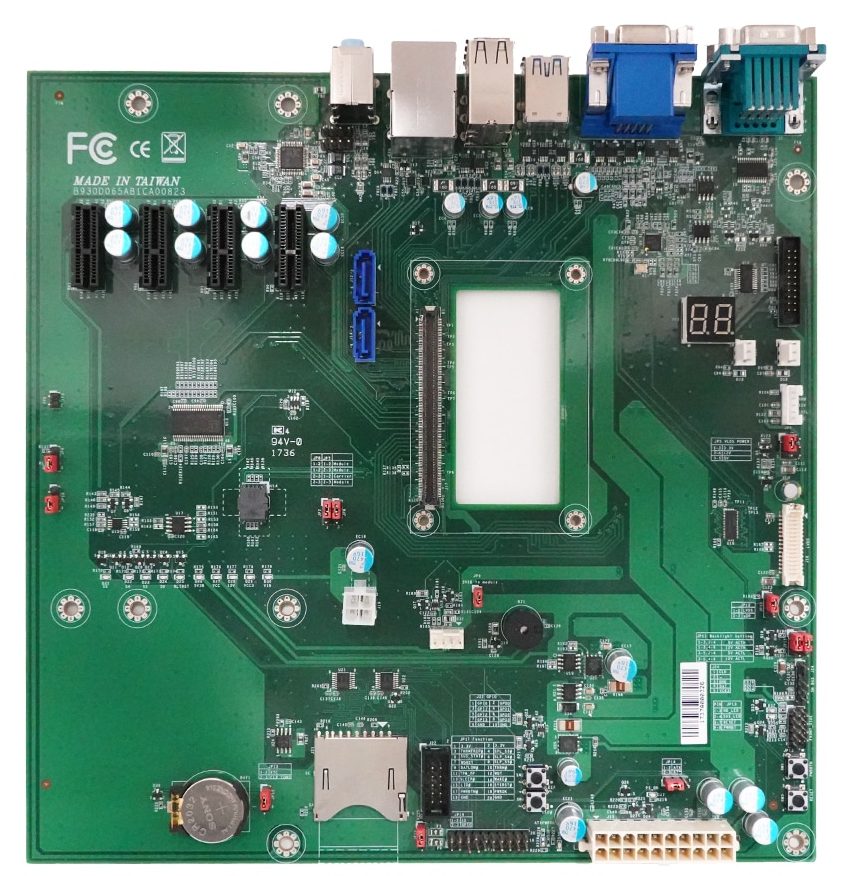

PCOM-CA00

Micro-ATX Form Factor Evaluation Carrier Board For Type 10 COM Express@ Rev 3.0 Module

PCOM-B704-GT

COM Express Type 7 Basic module with Intel^®Xeon^® D-1700 series Processor (Ice-Lake-D LCC)

PCOM-B657VGL

COM Express Type-VI Basic module with Intel^®11^th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

PCOM-BA02GL

Intel Atom^® x6000 series SoC based on Type 10 Mini COM-Express^® module with LPDDR4 SDRAM

Flexible and Scalable Embedded Computing

By separating the computing module from the carrier board, COM Express enables developers to reuse validated carrier designs across different processor platforms and product generations. This modular approach helps shorten development cycles, simplify system upgrades, and extend product lifecycles.

Portwell COM Express Solutions

Portwell offers COM Express Type 6, Type 7, and Type 10 modules, along with evaluation and application-ready carrier boards. Depending on the selected model, available features may include Intel^®or AMD processors, DDR5 memory, PCI Express, USB, SATA, multiple display interfaces, high-speed Ethernet, TPM 2.0, and embedded AI acceleration.

Portwell COM Express solutions are suitable for industrial automation, machine vision, edge AI, medical equipment, transportation, networking, and other embedded applications requiring scalable performance and long-term availability.
