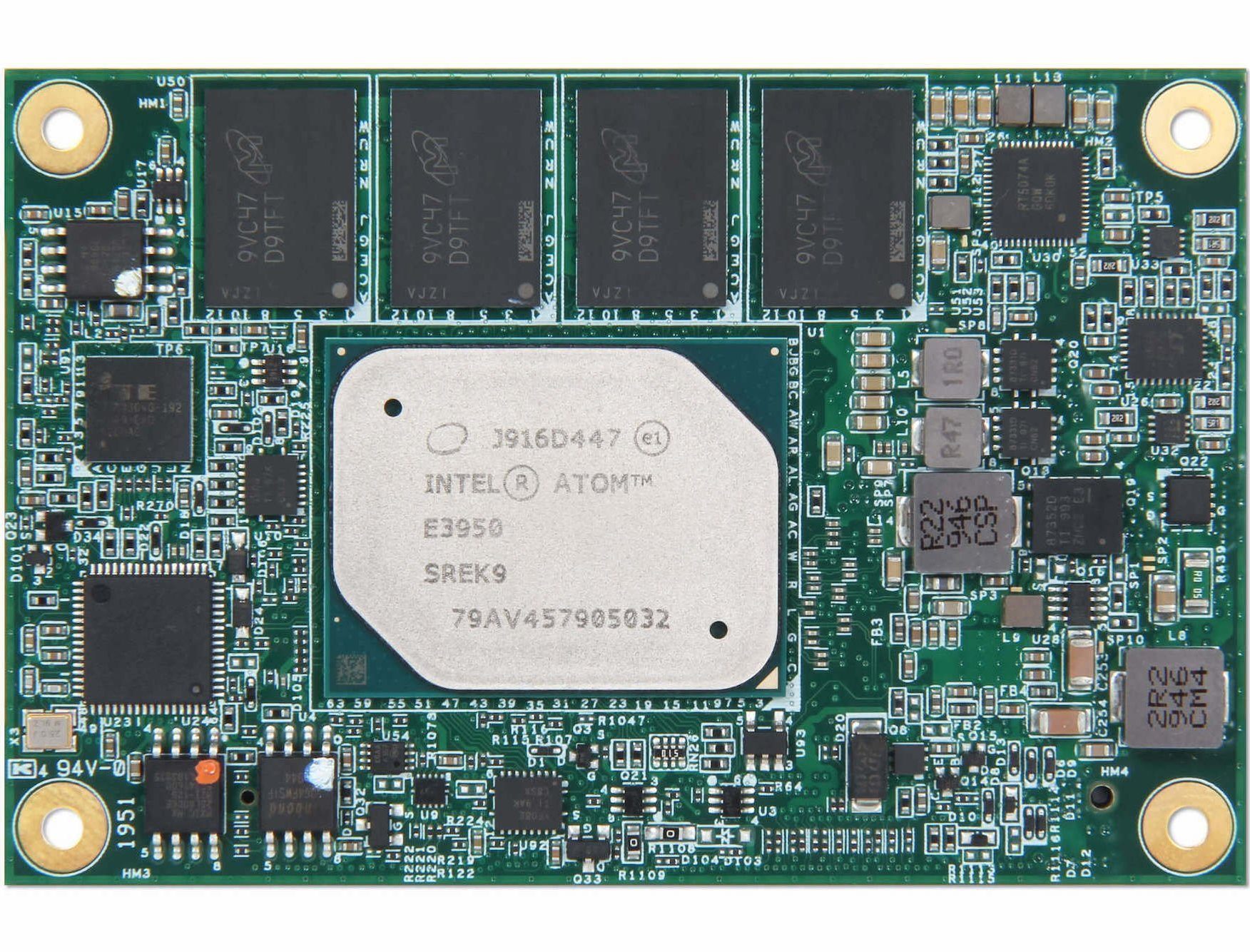

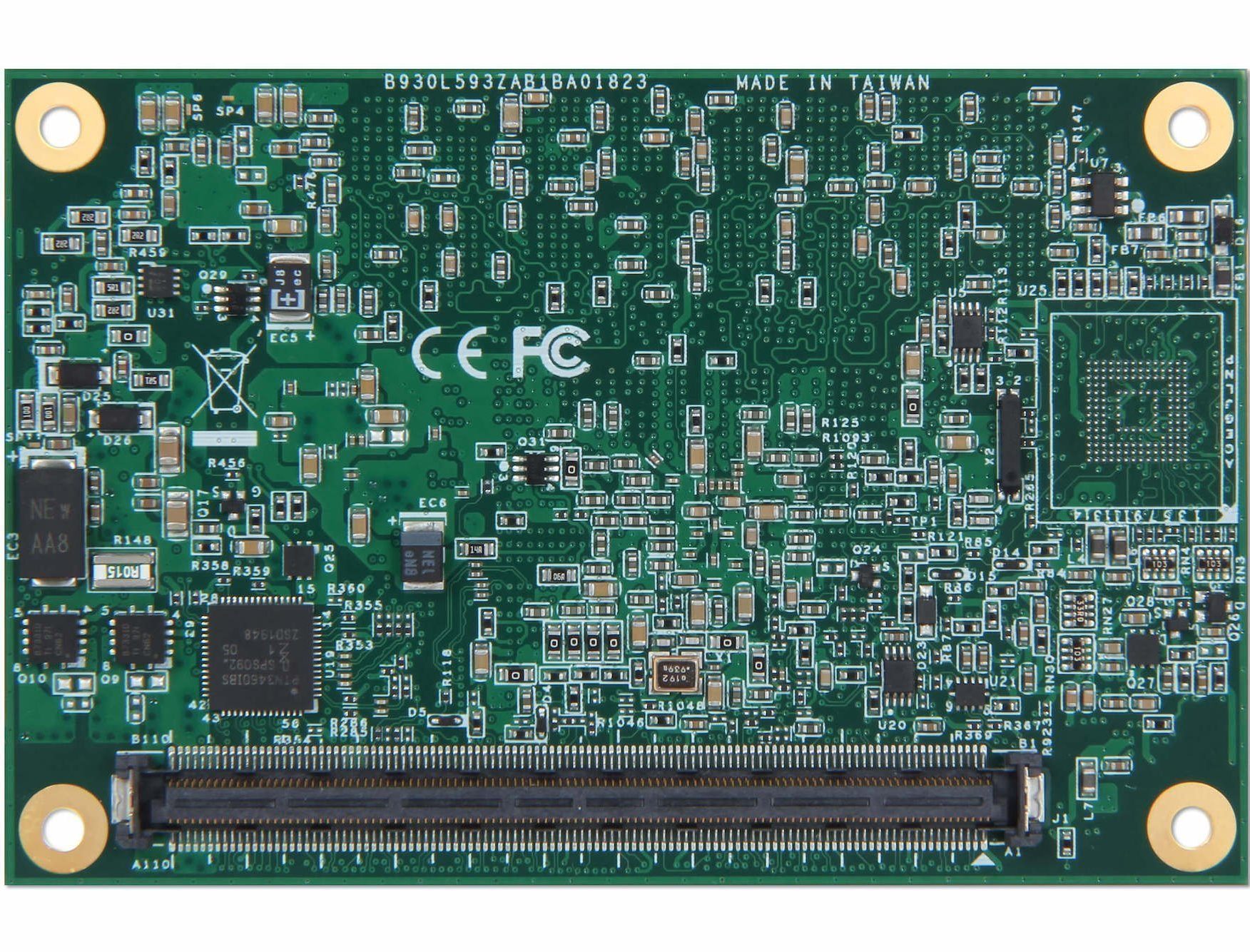

PCOM-BA01

Intel® Atom® E3900 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM, eMMC and USB 3.0

Features

  • Intel® Atom® Processor E3900 Series (Apollo Lake)
  • On Board LPDDR4 SDRAM up to 8GB, On Board eMMC up to 64GB
  • Low Power Consumption (6 to 12W)
  • Supports Wide Operating Temperature and Wide Voltage
  • Support LVDS, eDP, DP, HDMI® and Turbo mode up to 2.5GHz

Description

PCOM-BA01, a Type 10 Mini COM Express® (84 x 55 mm) module which based on Intel® Apollo Lake Atom® E3900 series SoC. In this architecture, it could provide VGA, LVDS, and high quantity HDMI®, eDP, DP with 4K resolution. And it also provide turbo mode up to 2.5GHz, with extending 4 x PCIe 2.0 x 1, 2 x USB 3.0, 8 x USB 2.0, and 2 x SATA III devices. With ultra low power consumption(6 to 12W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA01 as vertical solution to aim in the different versatile applications, such as Automation.

Specification

Specifications
Model Name PCOM-BA01
Form Factor (mm) COM Express®Mini (84 x 55mm)
COM Type Type 10
CPU/ Clock/ Cache Intel® E3950
Intel® E3940
Intel® E3930
Intel® N4200
Intel® N3350
1.80 GHz to 2.50 GHz (Turbo)
2MB cache
Chipset SoC
Memory LPDD4 2133 MT/s
Non-ECC
Dual Channel
USB 2x USB 3.0 8 x USB 2.0,
(Option 1 x OTG)
PCI Express 4 x PCIe 2.0 x 1
Ethernet Intel® I210IT
Sound Intel® High Definition Audio
Graphic Controller Intel® HD Graphics 505
Intel® HD Graphics 500
Carrier Board PCOM-CA00 (Type 10)

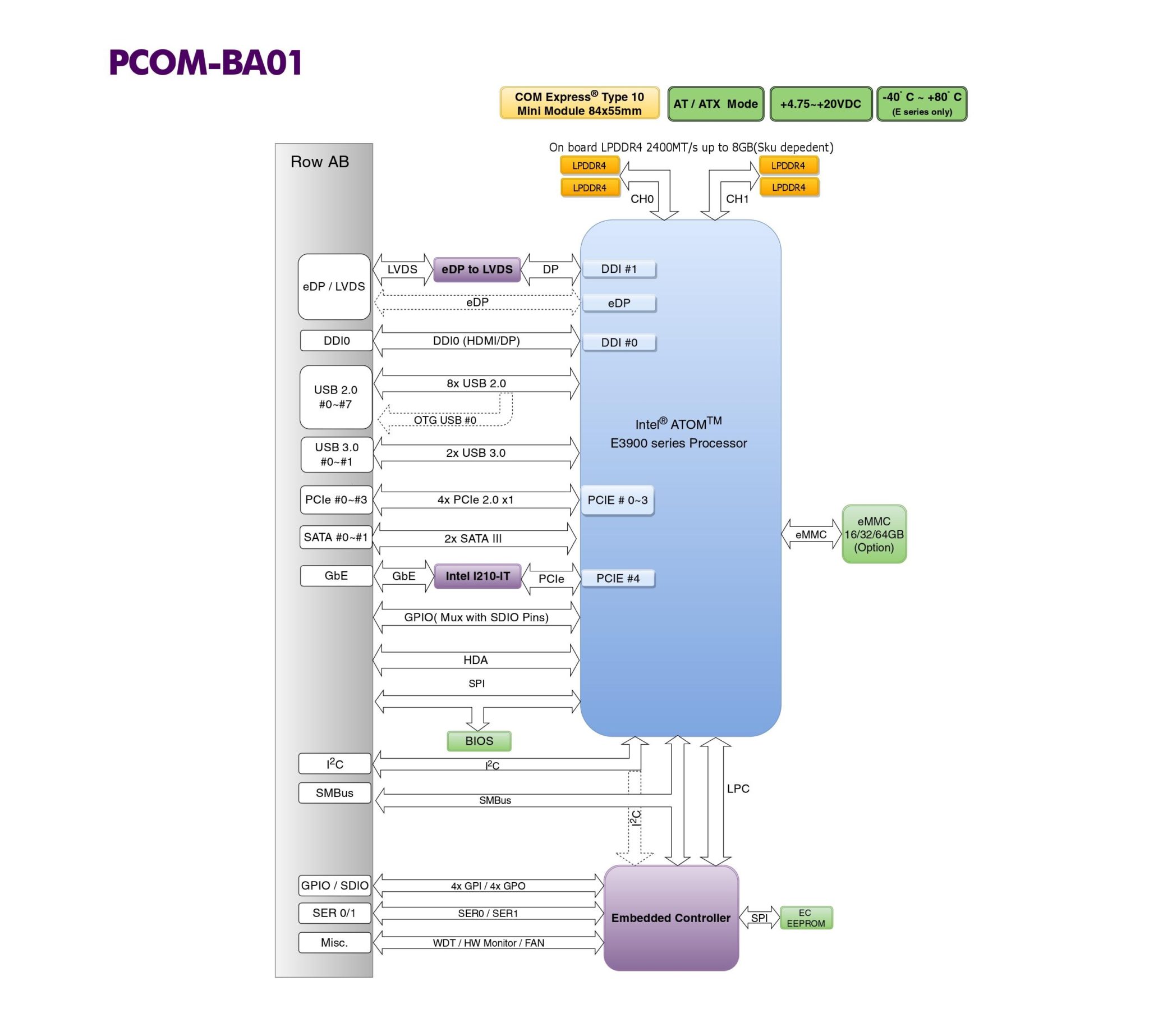

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-BA01-E3950-4G AB1-3G73 Available
PCOM-BA01-E3940-4G AB1-3G74 Available
PCOM-BA01-E3930-4G AB1-3H32 Available
PCOM-BA01-N4200-4G AB1-3H13 Available
PCOM-BA01-N3350-4G AB1-3K22 Available
PCOM-BA01-E3950-8G AB1-3F36 Available
PCOM-BA01-E3940-8G AB1-3K21 Available
PCOM-BA01-E3930-8G AB1-3G27 Available
PCOM-BA01-N4200-8G AB1-3H91 Available
PCOM-BA01-N3350-8G AB1-3K20 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Sink (E-sku) B8309590 Available
Heat Sink (N-sku) B8309960 Available
Heat Spreader (E-sku) B830A010 Available
Heat Spreader (N-sku) B8309970 Available
PCOM-CA00 (mATX Carrier Board) AB1-3917 Available

Support

(Documents & Downloads)

  Catalog   PCOM-BA01 | Catalog 20220121   March 30, 2021
802 KB 4341 Downloads
      BIOS   BIOS_PCOM-BA01_R100E1_Update.zip | BIOS R1.00.E1   May 11, 2022

    01.  BIOS Message “Portwell, Inc. PCOM-BA01 BIOS Rev.: R1.00.E1 ( 08132020 )”.02.  BIOS Message “Portwell, Inc. PCOM-BA01 TEST BIOS ( 90902T00 )”.03.  Base on PCOM-BA01 R1.00.E0 BIOS04.  Default XHCI Compliance Mode Disable05.  Update PMIC F/W to 03.1F.00 for I2C issue06.  Support uCode M03506CA-1607.  Support Change uCode M03506C9 to 3608.  Support “SPD Write Disable” Item09.  Support Change uCode M03506C9 to 3810.  Update PW Codebase_08 for SATA issue11.  Rename OEM base board product name to PCOM-BA01.12.  Add FITC setting file to “PCOM-BA01_TXE_3.1.65.2317_1x8MB_00.xml”13.  Support eAPI Boot Counter Function in EC RAM for PW Codebase_0814.  Fix system hang 0x2E after updating codebase15.  Fix temperature unit display issue16.  Support “Active LFP” in Oem Page17.  Default “Active LFP” to “No LVDS”18.  Support both of New and Old memory chip19.  Fix Display Port only work when hot-plug20.  Add 64bits GOP version 10.0.1037.

    9.5 MB 1286 Downloads
      BIOS   BIOS_PCOM-BA01_R100E3_Update.zip R1.00.E3   February 8, 2022

    R1.00.E3 only for HW version R000 and ZR303, do not update this bios for HW version R001 or later



    1. Set default DDI type as DP++
    2. Set don’t load default after RTC clear
    9.45 MB 1714 Downloads
      BIOS   BIOS_PCOM-BA01_000_Update.zip 0.0.0   February 8, 2022

    0.0.0 only for HW version R001 or later, do not update this bios for HW version R000 and ZR303

    1. Set default DDI type as DP++
    2. Set don’t load default after RTC clear
    9.45 MB 1641 Downloads
      BIOS   BIOS_PCOM-BA01VG_R100E2_Update.zip | BIOS R1.00.E2   June 3, 2021

    Component EOL Replacement

    5.13 MB 564 Downloads
      BIOS   BIOS_PCOM-BA01_R100E2_Update | BIOS R1.00.E2   May 19, 2021

    Update

    5.13 MB 337 Downloads
        EC   EC_PCOM-BA01_R04E00_Update.zip | EC R04E00   June 11, 2021

      EC F/W Ver.: PCOM-BA01_EC_R04E00

      Description Fixed S3 issue

      67.50 KB 2061 Downloads
          Driver   Driver_PCOM-BA01_Serial_IO_Win1064bit_30.100.1631.03.zip | Driver    May 3, 2021
        3.04 MB 1123 Downloads
          Driver   Driver_PCOM-BA01_LAN_Wind1064bit_21.1.zip | Driver    May 3, 2021
        77.49 MB 1122 Downloads
          Driver   Driver_PCOM-BA01_Graphic_Wind1064bit_21.20.16.4550.zip | Driver    May 3, 2021
        237.93 MB 1028 Downloads
          Driver   Driver_PCOM-BA01_Chipset_Win1064bit_10.1.1.35.zip | Driver    May 3, 2021
        2.56 MB 1102 Downloads
          Driver   Driver_PCOM-BA01_Audio_Win1064bit_279.zip | Driver    May 3, 2021
        124.80 MB 1050 Downloads
          Driver   Driver_PCOM-BA01_TXE_Win1064bit_3.0.10.1129.zip | Driver    May 3, 2021
        85.09 MB 538 Downloads
