PCOM-CA00

Micro-ATX Form Factor Evaluation Carrier Board For Type 10 COM Express@ Rev 3.0 Module

PCOM-CA00

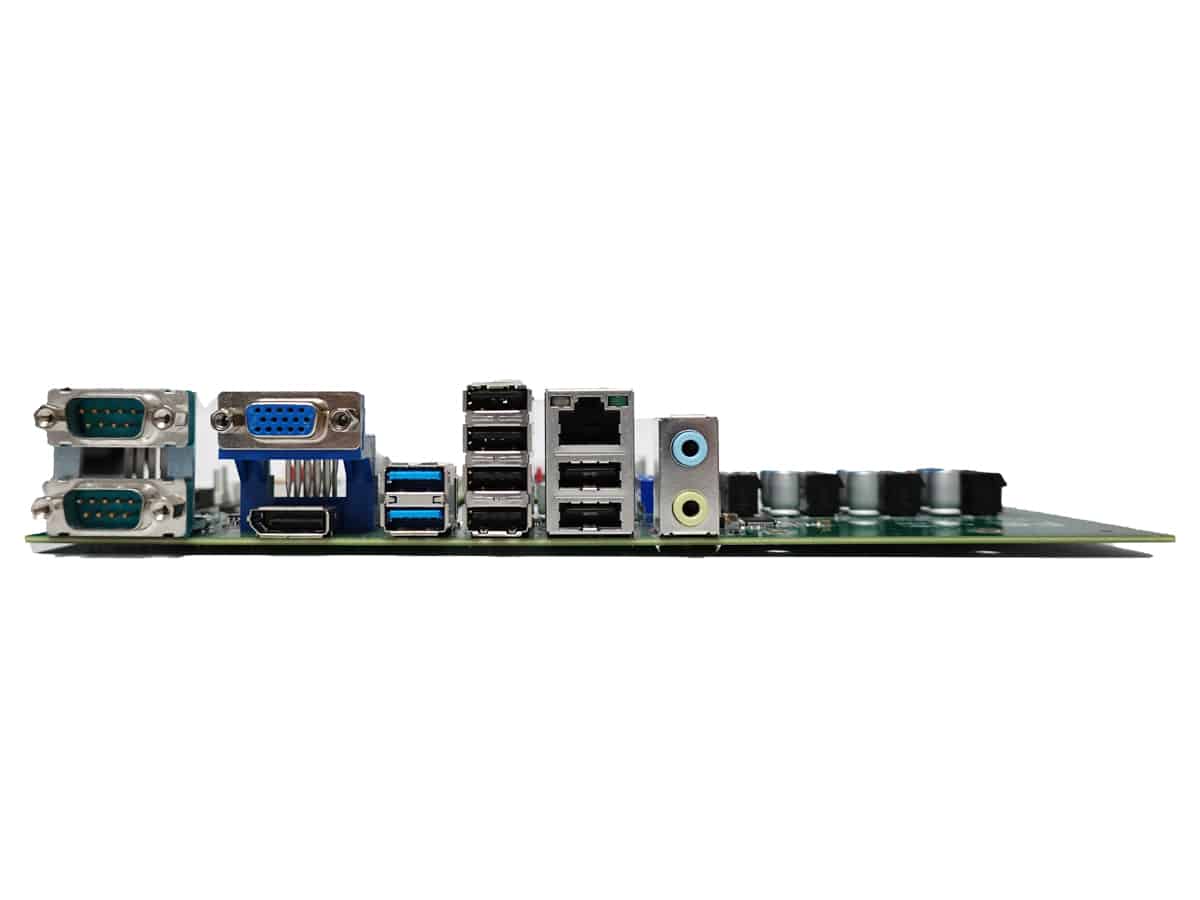

PCOM-CA00 | I/O

Features

  • COM Express carrier board accepts Portwell Type 10 BGA COM Express modules
  • Micro-ATX form factor to meet most standard mounting space and provide more expansions
  • On-board power and reset switches benefits engineering testing or evaluate without a chassis
  • One DP and one LVDS interface, four PCI-E x 1
  • Allow user to select master BIOS on board or from CPU module
Datasheet
Documents & Downloads

Portwell PCOM-CA00 provides the COM-Express type 10 connector with Micro-ATX form factor. This carrier board passed all of Portwell evaluation testing. And it supports VGA, LVDS and DP display, and multiple I/O interfaces, including 4 x PCIe x 1, 2 x USB 3.0, 8 x USB 2.0, 2 serial ports, and 2 x SATA III devices. For more product features, please refer to the user manual or contact your distributor.

Specifications

General
Product PCOM-CA00
Form Factor Type 10, Micro-ATX (244 x 244 mm)
Processor Depends on Module
Core Depends on Module
Freq. Depends on Module
Turbo Depends on Module
Cache Depends on Module
Processor Graphics Depends on Module
Graphics Base Frequency Depends on Module
Graphics Max Dynamic Frequency Depends on Module
HW Encoding Depends on Module
HW Decoding Depends on Module
HW Acceleration Depends on Module
Processor TDP Depends on Module
BIOS Depends on Module
ECC Memory Supported Depends on Module
Memory Depends on Module
MECHANICAL & ENVIRONMENT
Dimension 244 x 244 mm
Power DC IN Micro-ATX
Storage Temperature -40°C to 80°C
Operating Temperature -40°C to 80°C
Certification Contact us
MTBF Over 100,000 hours at 40°C
Vibration N/A
OS Depends on module
I/O Interface
SATA 2 x SATA III
USB 2 x USB 3.0, 8 x USB 2.0
Ethernet 1 x GbE
Serial I/O GPIO 10 bit GPIO
I²C Baud Rate: 400KHz
SMBus Baud Rate: 100KHz
UART 2 Serial Port (Tx/Rx)
PEG N/A
PCI Express 4 x PCIe x1
Display Default Options Resolution
LVDS LVDS (24bit, dual channel ) up to 1920×1200 @60Hz
VGA up to 1920×1200 @60Hz
DDI DP up to 1920×1600 @60Hz
Security TPM

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-CA00 AB1-3917 Available
