PCOM-BA00

Intel® Atom® E3800 series SoC based on Type 10 Mini COM-Express® module with DDR3L SDRAM, NANDrive and USB 3.0

Features

  • Intel® Atom® Processor E3800 Series (Bay Trail)
  • On Board DD3L SDRAM up to 4GB, On Board SSD up to 64GB
  • Low Power Consumption (3 to 10W)
  • Supports Wide Operating Temperature and Wide Voltage
  • Support VGA, LVDS, DP, eDP and USB 3.0

Description

PCOM-BA00, a Type 10 Mini COM-Express® (84 x 55 mm) module which based on Intel® Bay Trail Atom® E3800 series SoC. In this architecture, it could provide VGA, LVDS, eDP and DP multiple displays, and expandability I/O interfaces, including 3 x PCIe 2.0 x 1, 1 x USB 3.0, 4 x USB 2.0, 2 serial ports and 2 x SATA II devices. With ultra low power consumption(3 to 10W), wide-temp support, it could provide very energy saving and high effective performance. Portwell want to promotes PCOM-BA00 as vertical solution to aim in the different versatile applications.

Specification

Model Name PCOM-BA00
Form Factor (mm) COM-Express® Mini (84 x 55mm)
COM Type Type 10
CPU/ Clock/ Cache Intel® E3845*
Intel® E3827
Intel® E3825
Intel® E3815
Intel® E3805
1.33 GHz to 1.91 GHz*
1MB to 2MB cache*
Chipset SoC
Memory DDR3L 1067/1333 MT/s*
Non-ECC/ECC*
Single Channel*
USB 1x USB 3.0 4x USB 2.0
PCI Express 3 x PCIe 2.0 x 1
(Option 4 x PCIe 2.0 x1)
Ethernet Intel® I210IT
Sound Intel® High Definition Audio
Graphic Controller Intel® HD Graphics
Carrier Board PCOM-CA00 (Type 10)

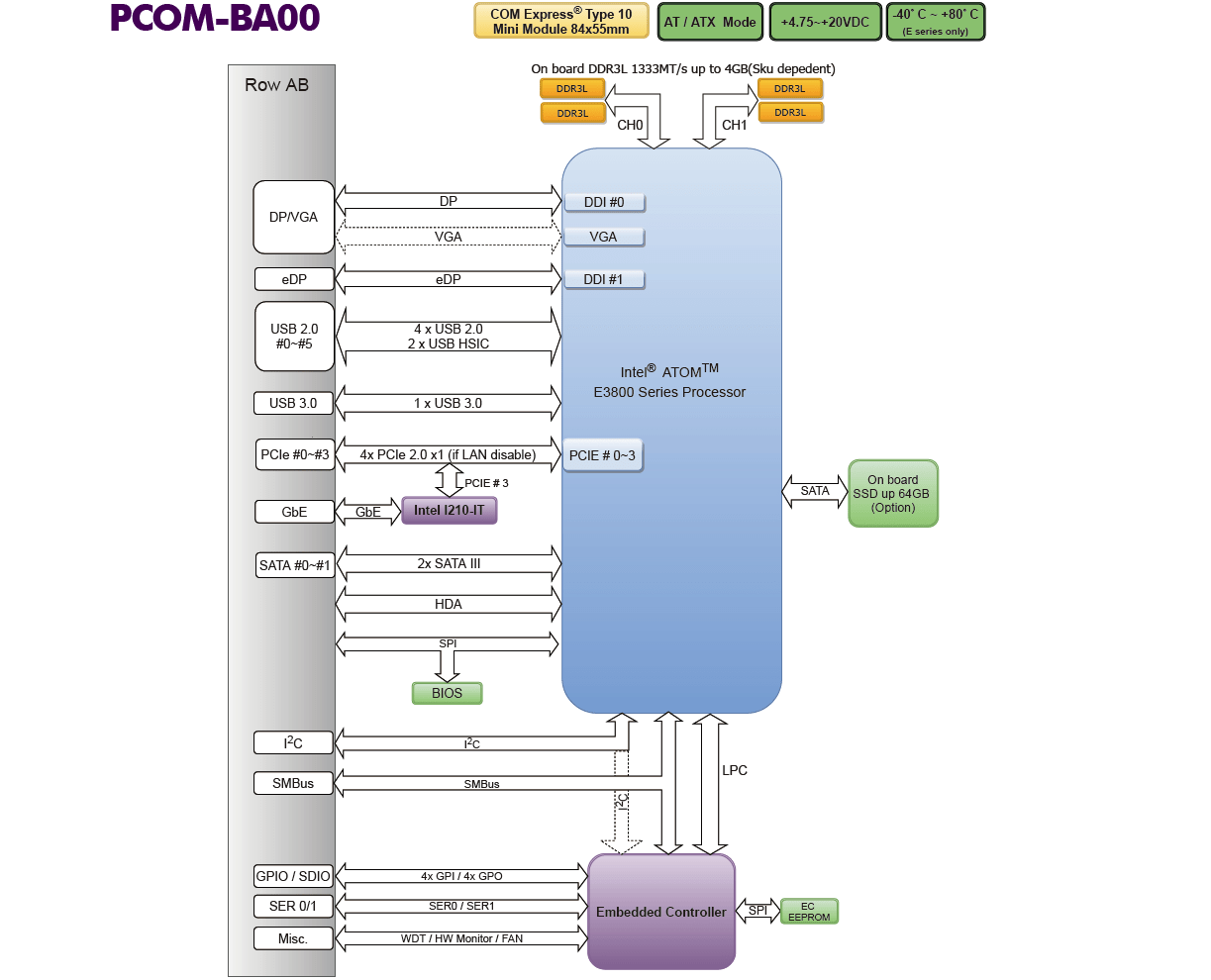

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-BA00-E3845-2G AB1-3B51 Available
PCOM-BA00-E3827-2G AB1-3B50 Available
PCOM-BA00-E3825-2G AB1-3B47 Available
PCOM-BA00-E3815-2G AB1-3B49 Available
PCOM-BA00-E3805-2G AB1-3C19 Available
PCOM-BA00-E3845-4G AB1-3B48 Available

Accessory

Accessory
Accessory Ordering P/N Status
Heat Spreader B8306940 Available
PCOM-CA00 (uATX Carrier Board) AB1-3917 Available
