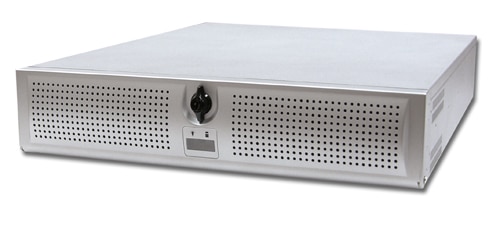

AREMO-2173P, 19” 2U Rack-mount, designed for PICMG 1.0/1.3 can support 6-slot backplane that also builds two hot-swap 3.5” SATA HDD driver bays and two USB interface on front panel. AREMO-2173P can equip high wattage PS/2 form factor PSU. The build-in replaceable air filters are for easy maintenance. AREMO-2173P is suitable for Factory and Server applications.
| Construction | Heavy-duty steel |
| Drive Bay | External: 1x Slim type CD-ROM, 2x Hot-swap 3.5” HDD |
| Air Filter | One external replaceable air filter |
| Cooling Fan | Two 7cm ball-bearing fans |
| Indicator | 1x HDD+ 1x Power On/Off |
| Switch | 1x Power On/Off (with a protection cap), 1x System reset |
| Speaker | One 8Ω speaker |
| Connector | 2x USB ports equipped on the front panel |
| Standard Color | Silver, Black |
| Dimension | 482(W) x 429.2(D) x 88.6(H) mm; 19”(W) x 16.9”(D) x 3.5”(H) |
| Weight | Net: 11.0 kg (23.1 lb); Gross: 12.0 kg (25.3 lb) |
| Backplane | PBPE-06V464: 6-slot [PCIe (1), PCI (0), PCI-X (4)] PCIMG 1.3 backplane PBPE-06V3: 6-slot [PCIe (2), PCI (3), PCI-X (0)] PCIMG 1.3 backplane PBPE-06V: 6-slot [PCIe (5)] PCIMG 1.3 backplane PBPE-06V4: 6-slot [PCI (4), PCI-X (0)] PCIMG 1.0 backplane |
| AREMO-2173P 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG backplane |
| AREMO-2173P/B 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.0 backplane |
| AREMO-2173PA 19” 2U rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
| AREMO-2173PA/B 19” 2U black rack-mount chassis with vertical 6-slot (4x PCI) PICMG 1.3 backplane |
