CHUMPI-5390

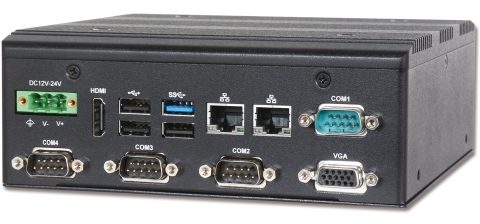

Embedded Rugged Fan-less System with Intel® Atom® E3845 Specific Form Factor Board

特點

  • Intel® Atom® embedded processor with low power and quad-core technology
  • Fan-less and cable-less design with wide temperature support (-30°C ~ 70°C)
  • Single SO-DIMM socket up to 8GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x Half-size mSATA socket
  • 2x Gigabit Ethernet, 1x USB3.0, 3x USB2.0
  • 1x VGA, 1x HDMI®
  • 2x RS-232/422/485 (auto-flow support), 2 x RS-232
  • Support wide DC 12V ~ 24V input
  • 2x Antenna hole for WiFi, 3G/GPS or 4G LTE module to use
  • Wall mounting
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating

Description

The CHUMPI-5390 is powered by Intel® Atom® quad-core processor. Despite its fan-less and cable-less design, the system can support wide temperature ranging from -30°C ~ 70°C. By utilizing the low power technology, CHUMPI-5390 is an ideal platform for factory automation and transportation applications.

Specification

Model CHUMPI-5390
M/B PBA-1001
Form Factor Specific Form Factor 150 x 150 mm
System
CPU Atom® E3845 1.91GHz
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 7 Graphics
Audio Codec N/A
Super I/O EC ITE IT8528 + Fintek F81216
Storage 1x 2.5” SATA HDD/SSD 1x Half-size mSATA
External I/O
Serial 2x RS-232/422/485 2x RS-232
USB 1x USB3.0 3x USB2.0
Display VGA, HDMI®
Ethernet Intel® I210IT x 2
PS/2 N/A
Audio N/A
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. -30°C ~ 70°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C,
non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 160 x 160 x 60 mm
Weight 2 Kg

採購指南

Ordering Guide
AS5-3462 (R).ATO. Chumpi-5390. Intel Bay Trail Atom E3845 Embedded System

Support

(Documents & Downloads)

  Catalog   CHUMPI-5390 | Catalog 20171229   29 12 月, 2017

Catalog

1.57 MB 1632 Downloads
    No downloads found!
        User’s Manual   Manual_CHUMPI-5390_V1.0.zip | Manual v1.0   22 12 月, 2017

      User’s Manual

      1.65 MB 1071 Downloads
          Certificate   Certificate_CHUMPI-5390-CEFCC_JAVI.zip | Certificate 20171229   29 12 月, 2017

        CE/FCC Certificate

        1.40 MB 1237 Downloads
            Drawing   Drawing_CHUMPI-5390.zip | Drawing 20171229   29 12 月, 2017

          Drawing of CHUMPI-5390

          222.67 KB 1660 Downloads
