FUDA2-S1211

Slim and Fan-free 5-wire Resistive Touch Panel PC with Wide Temperature Support Powered by Intel® Bay Trail Qual-core Processor

Description

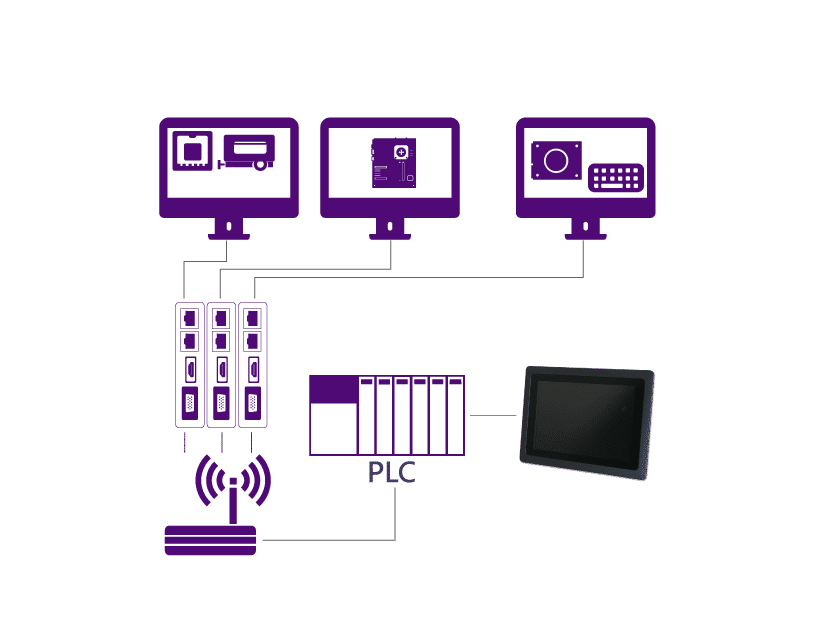

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA2 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

Model Name FUDA2-S1211
Display
LCD Size 12.1″
Resolution XGA 1024 x 768
Brightness 500 cd/m²
Contrast Ratio 700:1
Backlight LED type
Touch Window 5-Wire Resistive Single Touch
System
SOC Intel® Atom™ Quad-core E3845 (1.91 GHz)
Memory DDR3L SO-DIMM 1333/1600 MHz up to 8 GB
BIOS AMI
Graphics Intel® Gen 7 Graphics
LVDS Single/ Dual Channel 24-bit
LAN Chipset Dual Intel® I210IT Gigabit Ethernet (Support Jumbo Frame)
Audio Realtek® High Definition Audio Codec
Watchdog Timer Programmable 1 ~ 255 sec
Storage Device 1 x 2.5″ SATA HDD / SSD, 1 x Compact Flash II up to 128 GB, 1 x SD card
OS Windows 7/ Windows 8.1/ Windows 10/ Linux™
I/O Interface
Series Port 2 x RS-232/422/485 (Expansion : Option 0)
Display 1x DVI-I
USB 1 x USB 2.0, 1 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0)
Ethernet 2 x Gigabit Ethernet
Others 1 x SMA Antenna hole for WiFi/3G Solution
Expansion 1 x Half-size Mini-PCIe socket

2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1)

1 x RS-232/422/485, 1 x Line-out, 2 x USB 2.0 (Expansion: option 2)

Mechanical
Dimesion(mm)(WxDxH) 343 x 282 x 53.2 mm
Mounting (mm) VESA Mount 75 x 75& 100 x 100; Panel Mount
Weight (Kg)(N) 4.3 Kg
Weight (Kg)(G) 6.2 Kg
Power
Power Supply DC 12 ~ 24V input with 3-pin Terminal Block Connector
Consumption (Max) 29w (12V); 33W (24V)
Consumption (Min) 10w (12V); 11W (24V)
Environmental
OP /Storage Temp -25°C ~ 70°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration 1.0G (SD/CF/SSD) and 0.5G (HDD) , Power on & 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop Packaged with Carton 96.5cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate CE/FCC Class A
Ordering Guide
AL6-3192 (R)ATO.FUDA2-S1011-AP1000.10.4″ Bay Trail E3845 Panel PC with Aluminum Bezel and PW Overlay
AL6-3191 (R)ATO.FUDA2-S1211-AP1000.12.1″ Bay Trail E3845 Panel PC with Aluminum Bezel and PW Overlay
AL6-3190 (R)ATO.FUDA2-S1511-AP1000.15″ Bay Trail E3845 Panel PC with Aluminum Bezel and PW Overlay
AL6-3189 (R)ATO.FUDA2-S1711-AP1000.17″ Bay Trail E3845 Panel PC with Aluminum Bezel and PW Overlay
AL6-3188 (R)ATO.FUDA2-S1911-AP1000.19″ Bay Trail E3845 Panel PC with Aluminum Bezel and PW Overlay
