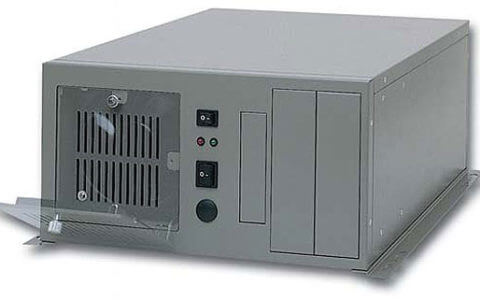

IRC-308

8-slot full-sized industrial node chassis (Shoe-box)

特點

Two 5.25” drive bay for CD-ROM or mobile rack, easy to install software and mirror disk (RAID1)
One replaceable air filter for easy cleaning
The fan filter panel can be installed in different directions
Can be vertically or horizontally mounted, easy to fit into space limited environment
One 12 cm ball-bearing cooling fan for better ventilation
Both 8-slot ISA and PICMG backplane applicable; easy to change to different backplanes
Two adjustable positions for hold-down card retainers provide better protection from vibration
Field replaceable power supply bracket for both normal PS/2 and PS/2 redundant power supply, easy for changing defective power supply

General
Construction	Heavy-duty steel
Drive Bay	External: 5.25” x2 + 3.5” FDD x1
Internal:	3.5” HDD x1
Cooling Fan	One 12 cm ball-bearing fan
Indicator	Power on/off x1, HDD x1
Switch	Power on/off x1, System reset x1
Air Filter	One replaceable air filter at the front door
Speaker	One 8 speaker
Connector	One 5-pin AT K/B connector with a cap on the front panel
Standard Color	Beige, Black
Dimension	330(W) x 408(D) x 172(H) mm; 13”(W) x 16.1”(D) x 6.8”(H)
Weight	9 kg (19.8 lb); Gross: 10 kg (22 lb)
Backplane	PBP-08I: 8-slot ISA backplane PBP-084: 8-slot (4xPCI) PICMG backplane PBP-083: 8-slot (3xPCI) PICMG backplane

Ordering Guide
IRC-308-08P4-D3501P 8-slot full-sized industrial node chassis with 8-slot (4xPCI) PICMG backplane and 350W Active PFC power supply
IRC-308-08P4-330X 8-slot full-sized industrial node chassis with 8-slot(4xPCI) PICMG backplane and 330W ATX power supply
IRC-308-08P3-330X 8-slot full-sized industrial node chassis with 8-slot (3xPCI) PICMG backplane and 330W power supply
