LEAD-PND Series

Portwell Networking Display or PND has network connection ability with LAN port which adopts Gigabit Ethernet. With Allwinner A83T, PND is equipped with basic computing ability compared to PD. Combining the two features, PND is suitable for those who want to introduce IoT concept into their applications or environments. The OS adopts Android system, which provides users with high flexibility to fulfill their own software requirement. The VGA/HDMI®/DP ports enclose the most common signal inputs now. PND provides users with the ability to control the OSD function by Tx/Rx of RS232 which further enhances the ability of PND and helps customers to easily adopt an IoT scenario.

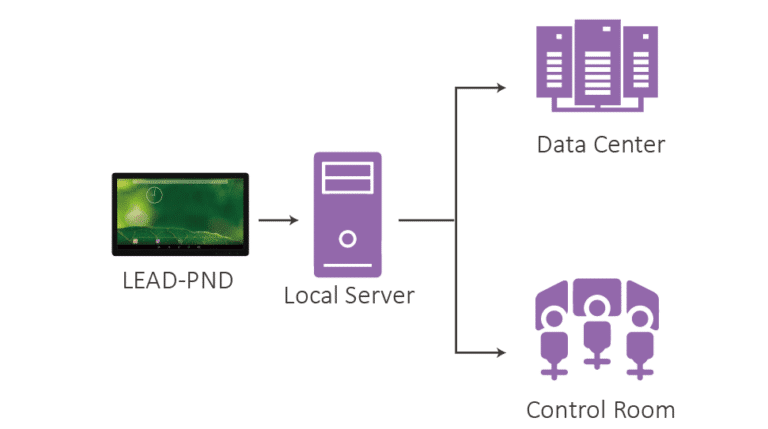

No Maze in Airport

Have no idea where you are, what to do next in the flood of flight information? What if the airport information can be personalized just for you? In the future, once arriving the airport, besides the huge information signage, more small panel PCs are waiting for you. By typing or selecting your flight number, the system will let you know where to check in on the map, how long the queue is, expecting time for custom check, location and distance of the gate. Instead of a nightmare to navigate, the airport becomes a personal and pleasant journey.

PND Specification

Model Name LEAD-PND-2150-AV LEAD-PND-2360-AV LEAD-PND-2150-AC LEAD-PND-2360-AC LEAD-PND-2150-BV LEAD-PND-2360-BV LEAD-PND-2150-BC LEAD-PND-2360-BC
Part Number AL6-3276 AL6-3272 AL6-3275 AL6-3271 AL6-3274 AL6-3270 AL6-3273 AL6-3269
Display
LCD Size 21.5" https://p3w2n9w4.rocketcdn.me/ 23.6"
Resolution FHD 1920 x 1080
Brightness 250 cd/m2
Contrast Ratio 1000: 1
Panel Type TN
Viewing Angle 170° (H) / 160° (V)
Touch Screen Projected Capacitive Multi-Touch
System
SOC AllWinner A83T Octa-Core Cortex™ A7 CPU
Memory 1GB DDR3L on board
LAN Chip Realtek® RTL8211E
Audio Codec 16G eMMC on board
Storage Device Android 6.0
OS Android 6.0

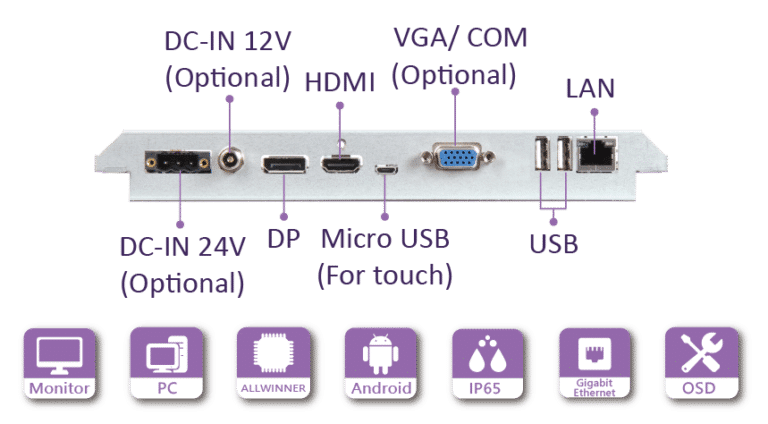

I/O Interface
Serial Port N/A 1 x Tx/Rx for OSD function N/A 1 x Tx/Rx for OSD function
Display Input: 1 x HDMI®, 1 x DP, 1 x VGA Input: 1 x HDMI®, 1 x DP Input: 1 x HDMI®, 1 x DP, 1 x VGA Input: 1 x HDMI®, 1 x DP
USB 2 x USB 2.0 1 x Micro USB for Touch only1 x Gigabit Ethernet
Ethernet 1 x Gigabit Ethernet
Audio 2 x 3W Speaker
OSD Key Power / Menu / Right / Left / Auto
Power
Power Input DC 12V via DC Jack DC 24V via 3-pin terminal block connector
Power Supply 40W AC-DC Adapter 60W AC-DC Adapter
Environmental
Mounting (mm) Standalone: VESA® Mount 75 x 75
Accessory 1 x VGA cable N/A 1 x VGA cable N/A
OP / Storage Temperature 0~50°C / -20~60°C
IP Protection IP65 (Front)
Certificate CE / FCC Class A
