LYNX-612A

LYNX-612A is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. With 4x LAN(2 isolated LAN) it’s easy to connect multi local area network devices in different electric noise environment, legacy RS-232/422/485 also help communicate machine to machine, then collect all edge devices data for analysis, forward analysis result to management center as a edge controller.

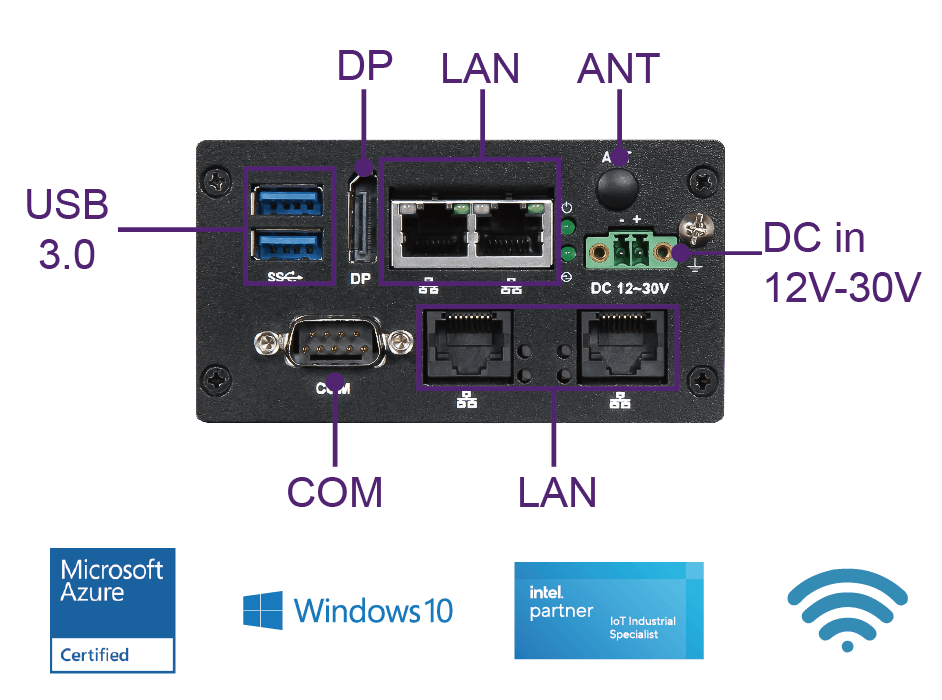

LYNX-612A IO

規格

Model Name LYNX-612A
Part Number AS5-3584
General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit)
Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Other TPM 2.0 onboard
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Extended I/O Interface
Ethernet/POE 2x 10/100/1000 GbE (Intel® i210), with isolation
COM/ Console 1 x RS-232/422/485 (BIOS configurable)
Certification
CE EN 55032; EN 55024/EN 55035
CE EN 61000-6-4; EN 61000-6-2
FCC Part 15 Subpart Class B
LVD EN 62368-1
Environmental & Mechanical
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm(W) x 53.5mm(H) x 92mm(D)
Weight 0.53KG
Mounting DIN-rail / Wall Mount
Optional Accessories
Power Adaptor 2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA / DP to DVI-D

Video

LYNX Series: Link to the World

Palm-size power and innovation for integrated AIoT solutions based on Intel Celeron N3350 and certified by Microsoft Azure IoT Edge Device. LYNX Series provides a rich portfolio of ultra-small form factor IoT appliances that offer a variety of features including low power consumption connectivity and expansion, rich interfaces for data acquisition and server connection, ruggedized design, and industrial regulatory compliance. It’s one of the best AIoT solutions for you.
