LYNX-612B

LYNX-612B is a compact, fan-less and cable-less PC adapting low power Intel® Apollo Lake processor. It’s CANbus can connect to different electronic unit and communicate with each other, 8 bit GPIO pins provide a programmable interface to read the state of a binary input device or control the on/off state of a binary output device, also with 4 LAN support in Palm-Sized dimension, LYNX-612B can easily work as IoT gateway.

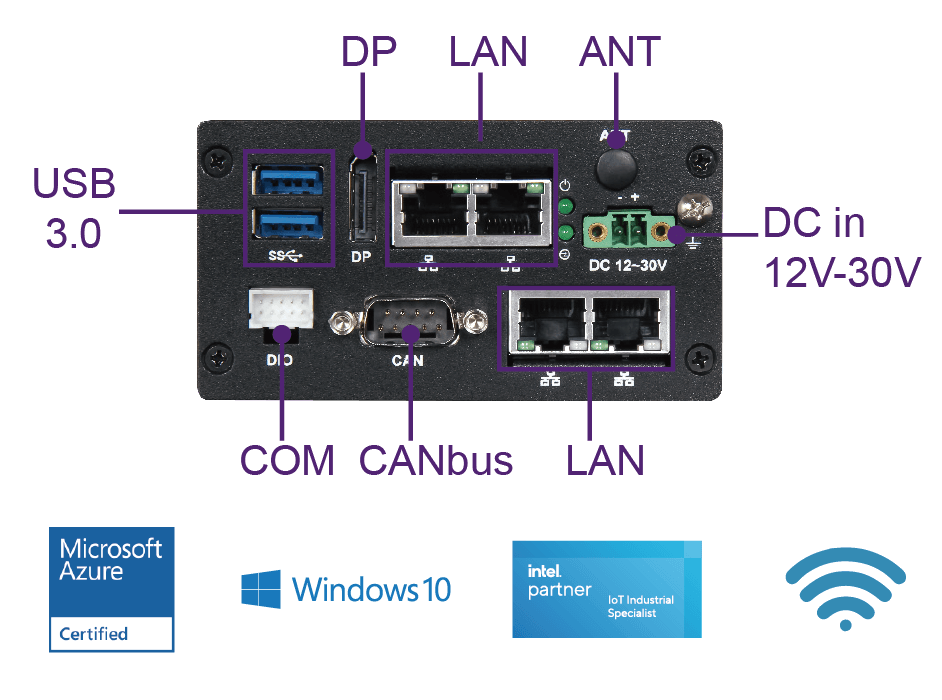

LYNX-612B IO

規格

Model Name LYNX-612B
Part Number AS5-3583
General
Processor Intel® Celeron® N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP
Memory 4GB onboard LPDDR4, 2400 MT/s, non-ECC; up to 8GB (Optional)
Storage 32GB onboard eMMC 5.0 flash; up to 256GB (Optional)
Power Input 12-30VDC (+/- 20%)
Operating System Windows® 10 IoT Enterprise (64bit)
Yocto v2.7
Expansion 1x M.2 Key E 2230 for wireless module
Other TPM 2.0 onboard
Basic I/O Interface
Power Connector 1x 2-Pin Terminal Block
Ethernet 2x 10/100/1000 GbE (Intel® I210)
USB 2x USB 3.0
Display 1x DP v1.4 4096 x 2160 @ 60Hz
Extended I/O Interface
Ethernet/POE 2x 10/100/1000 GbE (Intel® i210)
COM/ Console 1 x CANbus
GPIO 8 channels GPIO
EXPANSION “1 x M.2 Key B 2242
1 x Mini-PCIe”
Certification
CE EN 55032; EN 55024/EN 55035
CE EN 61000-6-4; EN 61000-6-2
FCC Part 15 Subpart Class B
LVD EN 62368-1
Storage Temperature -40 °C ~ 85 °C
Operating Temperature 0°C ~ 50°C
Permissible Humidity 5-95% RH operating, non-condensing
5-95% RH storage, non-condensing
Vibration 1G with DIN-rail mounting
5G with wall mounting (IEC/EN 60068-2-6)
Shock 15G with DIN-rail mounting
50G with wall mounting (IEC/EN 60068-2-27)
Degree of Protection IP 30
Dimension 100mm(W) x 53.5mm(H) x 92mm(D)
Weight 0.53KG
Mounting DIN-rail / Wall Mount
Power Adaptor 2-pin terminal block connector to DC jack cable
60W AC to DC Power Adaptor via DC jack
Video Adaptor DP to VGA / DP to DVI-D

Video

LYNX Series: Link to the World

Palm-size power and innovation for integrated AIoT solutions based on Intel Celeron N3350 and certified by Microsoft Azure IoT Edge Device. LYNX Series provides a rich portfolio of ultra-small form factor IoT appliances that offer a variety of features including low power consumption connectivity and expansion, rich interfaces for data acquisition and server connection, ruggedized design, and industrial regulatory compliance. It’s one of the best AIoT solutions for you.
