PCOM-C210

Development of resource-saving technologies which are used in the today’s production dictates a necessity to use instrumentation, which would provide a reliable real-time estimate of technical condition of operating equipment.

特點

  • COM Express carrier board is compatible with the Portwell Type II COM Express modules
  • ATX form factor meets most standard mounting spaces and provides more expansions slots
  • On-board power and reset switches benefit engineering testing or evaluation without a chassis
  • 2 EIDE, 4 SATA, 4 PCI, 6 PCI-E x1 and 1 PCI-E x16
  • Allows user to select master BIOS on board or from CPU module

Description

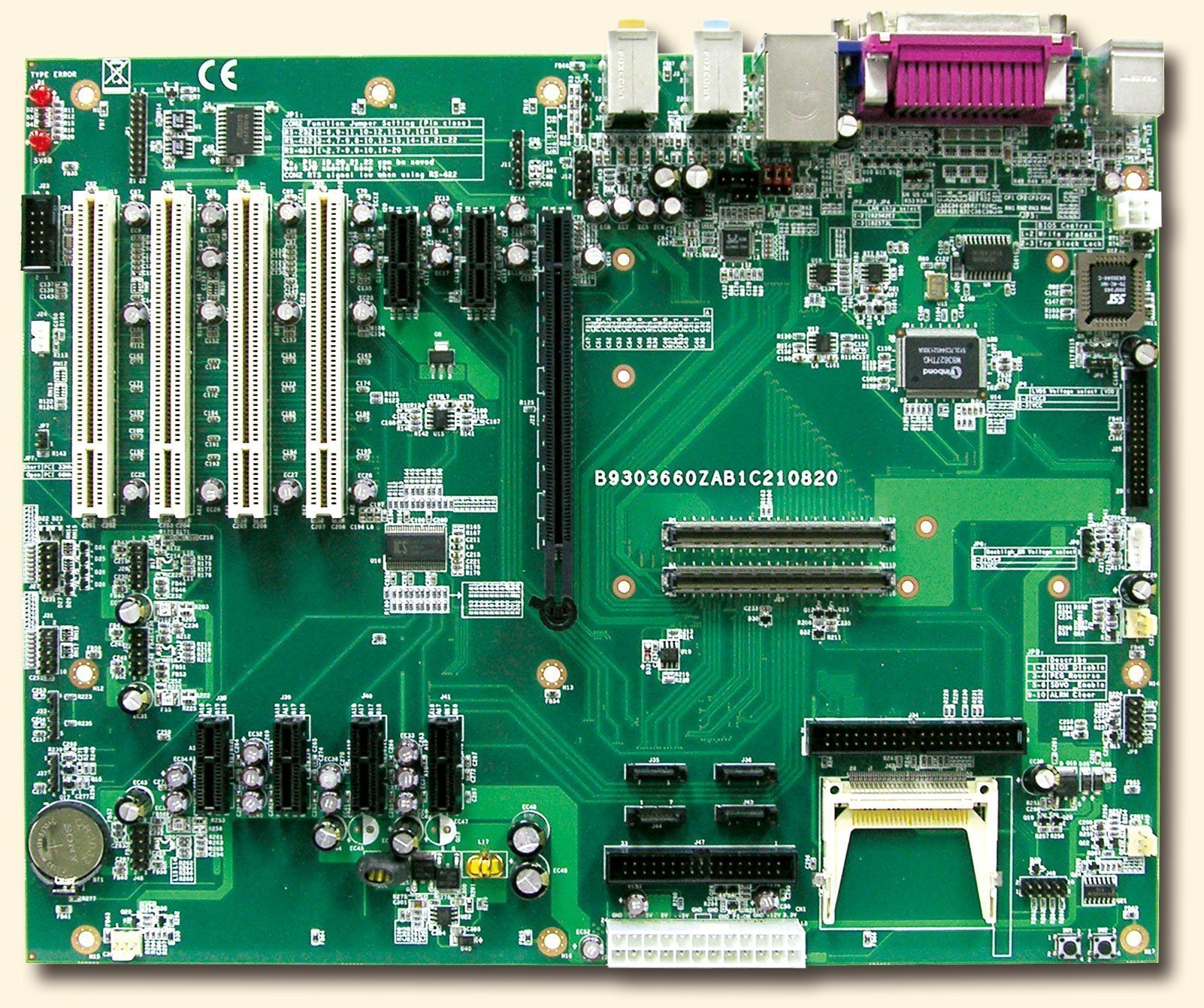

ATX Form Factor Evaluation Carrier Board For COM Express Type II Module

Portwell PCOM-C210 is designed with ATX form factor with COM Express Type II row connectors, suitable for evaluation testing of Portwell’s Type 2 COM Express modules on PCI-E, PCI, PEG/SDVO, IDE, SATA, LAN, LVDS, AUDIO, etc. interfaces. We also provide carrier board design guides for your own carrier board development reference.

採購指南

Ordering Guide
AB1-2289 PCOM-C210 Type II ATX Evalution Carrier Board
B6902540 Cable.LVDS L.=700mm for PCOM-C210 15″panel. E-CALL

Support

(Documents & Downloads)

  Catalog   PCOM-C210 | Catalog 212M   4 9 月, 2012
296.87 KB 4366 Downloads
      User’s Manual   Manual_PCOM-C210_R11.zip | Manual 1.1   7 6 月, 2010

    PCOM-C210 user manual

    689.60 KB 2918 Downloads
      User’s Manual   Manual_PCOM-C210_R10.zip | Manual 1.0   16 11 月, 2009

    PCOM-C210 user manual

    878.63 KB 3021 Downloads
