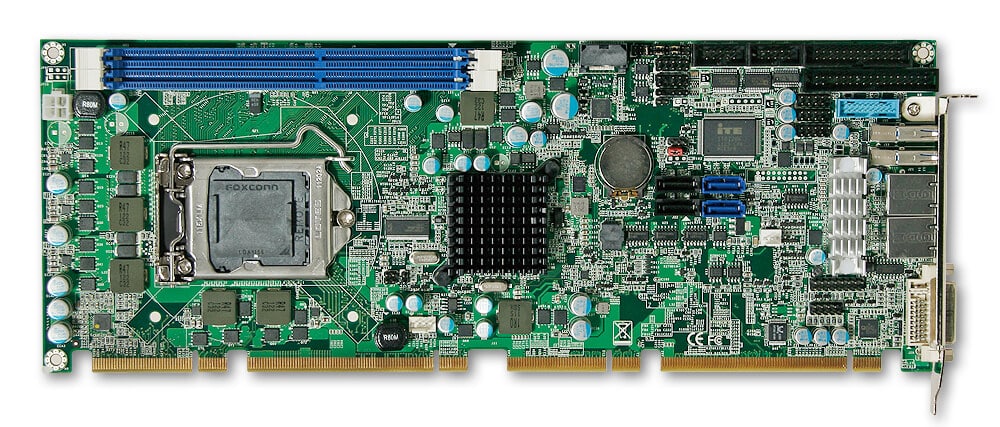

ROBO-8111VG2AR-Q77

ROBO-8111VG2AR-Q77

Intel® Core™ i7/i5 processor based on PICMG 1.3 SHB with DDR3 SDRAM, VGA, Dual Gigabit Ethernet, Audio and USB3.0

特點

  • Supports Intel® Core™ i7/i5 processors in LGA1155 package
  • Delivers up to 16GB maximum DDR3 1333/1600 SDRAM on two DIMM sockets
  • Supports multiple display by DVI-I (DVID+ VGA) and HDMI®
  • Supports iAMT 8.0 on Intel® CoreTM i7/i5 processors
  • High speed dual Gigabit Ethernet based on PCI Express x1, high bandwidth I/O interface
  • Rich I/O connections such as FDD, two Gigabit Ethernet, serial ports, parallel port, USB 2.0/3.0
  • On-board two SATA II and two SATA III ports support RAID 0,1,5,10
Download
服務需求

簡介

ROBO-8111VG2AR-Q77 is based on Intel® Q77 chipset and Core™ i7/i5 sku processor. It’s suitable for Medical, Factory Automation, and Digital Signage applications.

詳細規格

Specification
MODEL ROBO-8111VG2AR-Q77
Form Factor PICMG1.3
CPU Intel® CoreTM i7/i5 processor in LGA1155 package
Chipset Intel® Q77
BIOS Phoenix UEFI BIOS
Memory 2 x DDR3 1333/1600 DIMM up to 16GB
Expansion 4x PCI slots
1x PCIe x16 slot
1x PCIe x4 slot
Display CRT/DVI-D/HDMI®
Audio Realtek ALC886-GR HDA codec
LAN 2x GbE
Serial Port 1x RS232 ports
1x RS232/422/485
USB 10 x USB2.0
4 x USB3.0
Storage Devices 2 x SATA III
4 x SATA II
1x FDD channel
GPIO 8 bit
Dimension 338.5 x 126.39mm

採購資訊

Ordering Guide
AB1-2330 ROBO-8111VG2AR-Q77
PICMG 1.3(PCI-E+PCI).LGA1155. i7/i5 processors.SHB.w/VGA/Dual GbE/Audio

包裝列表

Packing List
Standard B6901990 SATA II cable
B6902930 SATA III cable (Black)
B690021S cable kit for FDD+PRN with bracket
B6903240 Dual head COM port cable with bracket
B6903350 DVI-D + VGA cable
B8981980 PICMG SBC Handling and Installation Notice
B3751500 Installation CD
Optional B6902980 PS/2 Keyboard / Mouse Cable with bracket
B6902230 USB port cable with bracket
B6903090 USB 3.0 cable with bracket
AB9-2066 PA-M1AU Multiple Media kit
