RUBY-D813-H610E

Support Desktop Intel® 12th/13th/14th Gen Core™ Processors ATX with DDR4 Long-DIMM up to 64Gb, VGA, DP port, HDMI®, Dual GbE LAN, Six COM Ports

特點

  • Intel® 12th/13th/14th Gen Core™ Processors support
  • Two Long-DIMM support DDR4 Non-ECC DRAM up to 64GB
  • Support dual Ethernet, 6x COM Ports, 4x USB 3.2 Ports , 4x SATA III Ports and Audio
  • TwoPCIe x16(1x PCIe x4 signal), one PCIex1, four PCI slots, one M.2 (Type M) type 2242/2260/2280

Description

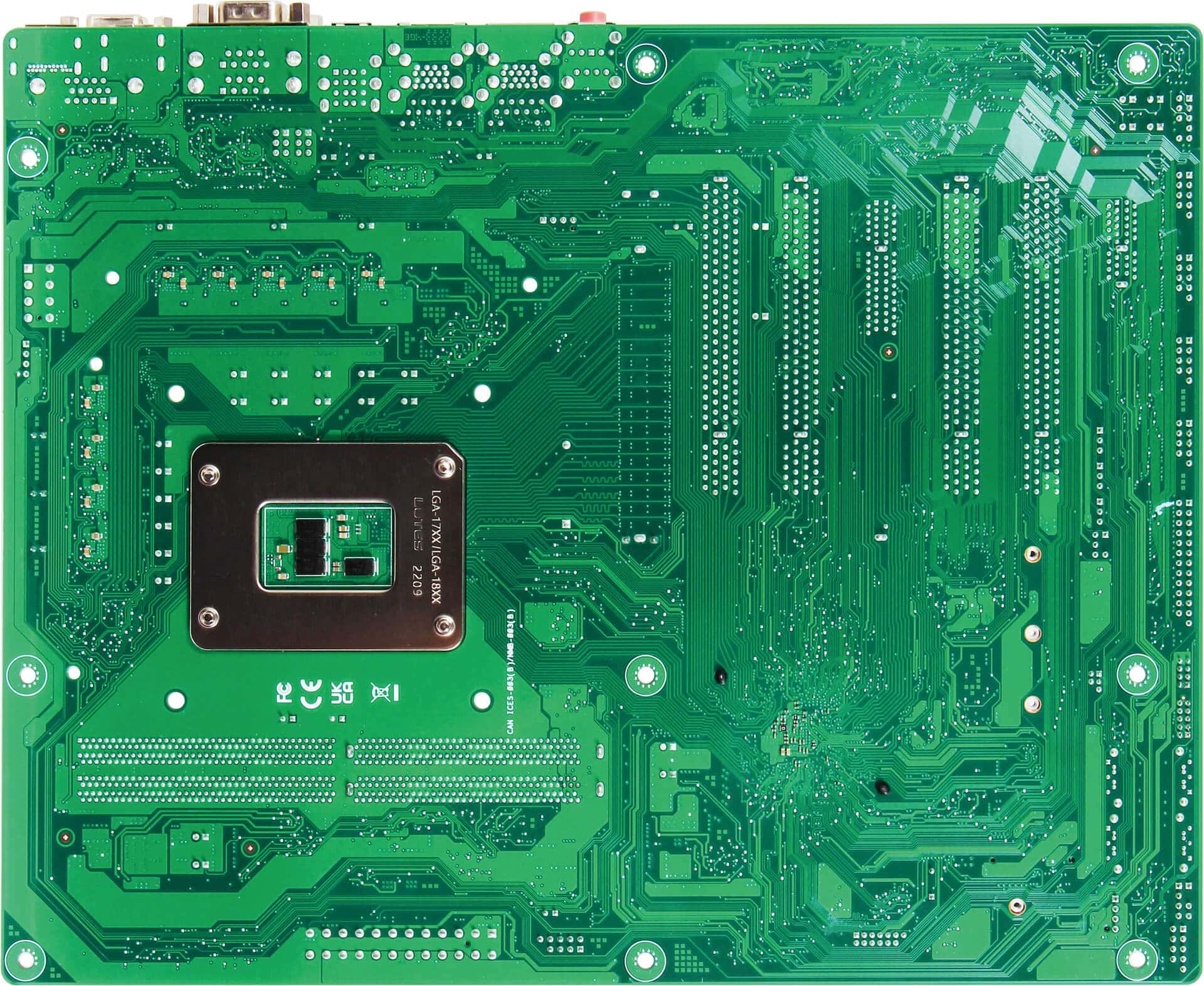

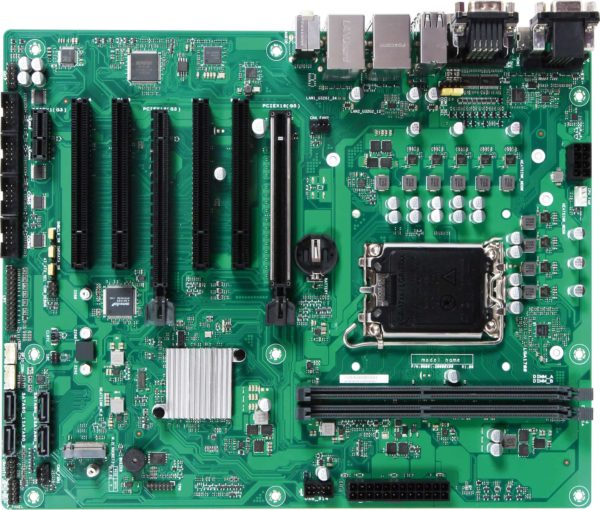

RUBY-D813 is based on Intel® H610E chipset and Desktop processors including Intel® 12th/13th/14th Gen Core™ i3/i5/i7/i9 Sku.This board supports DDR4, PCIe, and SATAIII. Those features help you to build high performance and stable system.

Specification

Specifications
General
Processor Intel® 12th/13th/14th Gen Core™ Processors CPU in LGA1700 package
Chipest Intel® H610E
BIOS AMI uEFI BIOS (SPI ROM)
Memory Support up to 64GB DDR4 Non-ECC on two Long-DIMM socket,up to 3200MHz
Storage Devices 4x SATAIII ports
Watchdog Timer Programmable by embedded controller
Hardware Monitoring System monitor(Voltage,Fan Speed and Temperature)
Expansion Interface – 2x PCIe x16 slots(1x PCIe x4 signal)
– 1x PCIe x1 slots , 4x PCI slots
– 1x M.2 (Key M) type 2242/2260/2280(SATA/PCIe x1 mode)

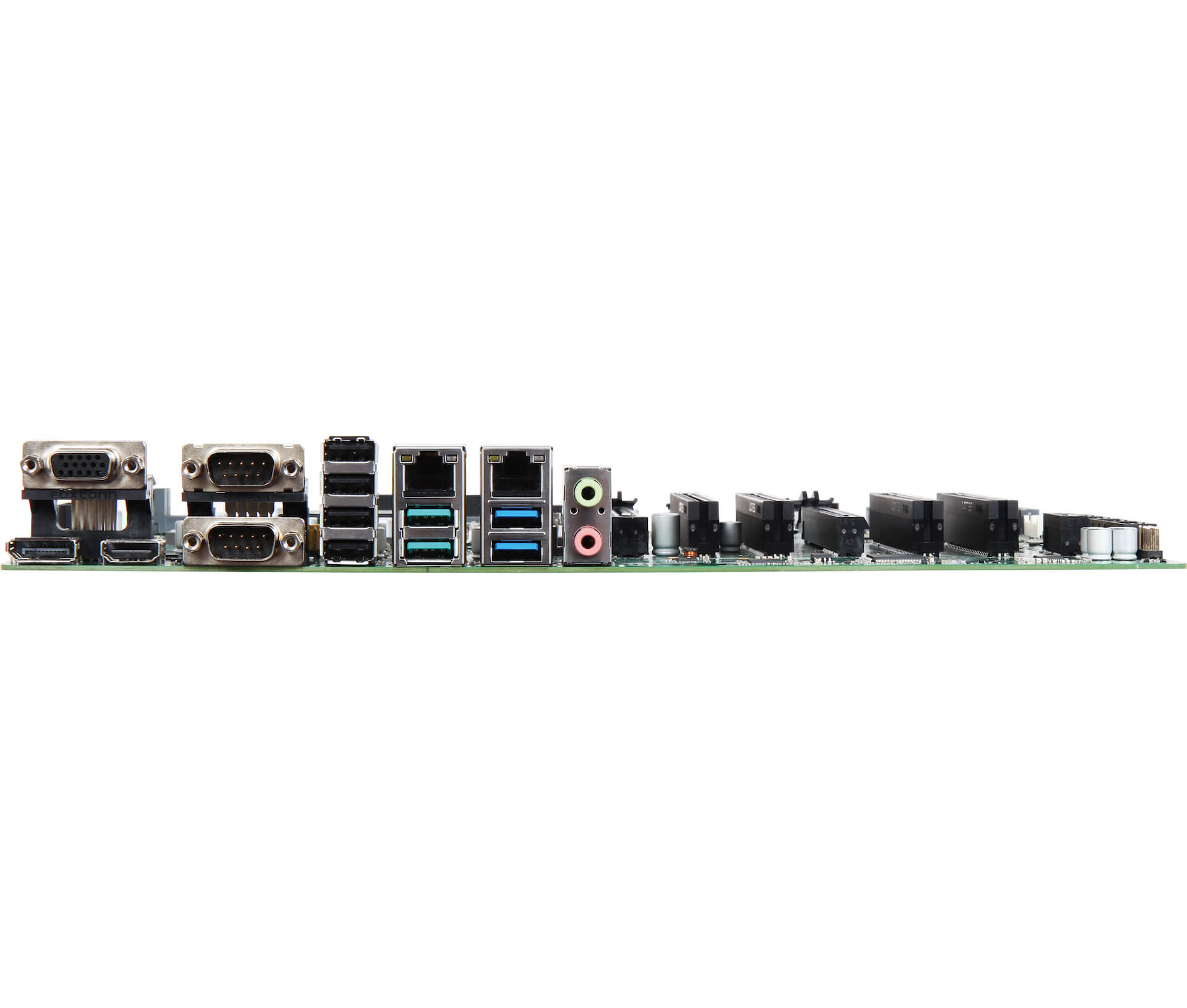

I/O INTERFACE
Super I/O NCT6126D
Audio Audio Jack on rear I/O with Line-out /Mic-in with Realtek ALC897 Audio controller
Ethernet – Intel® I219V and Intel® I210AT Ethernet controller
– 2x RJ45 connectors on rear I/O
Serial port – 2x RS232/422/485 port one on REAR I/O, one on board header
– 4x RS232 port on pin header
USB – 4x USB3.2(Gen2) and 4x USB 2.0 ports on rear I/O
– 2x USB2.0 on pin header
GPIO 8-bit configurable controller by embedded controller
DISPLAY
Graphic Controller – Intel® graphic UHD 630 supports DirectX 12, OpenGL 4.5
Display Interface – DP:DP port on rear I/O, resolution up to 4096×2160
– VGA: One VGA port on rear I/O resolution up to 1920×1200
– HDMI®:One HDMI® connector on rear I/O, resolution up to 4096×2160
Mechanical & Environment
Dimension 304.8mm(L) x 243.8mm(W) x 1.6mm(H)
Power Supply ATX
Environment – Operation temperature:0~60 ̊C
– Storage temperature: -20~80 ̊C
– Relative humidity:5~95%,non-condensing
MTBF Over 100,000 hours at 40°C

採購指南

Ordering Guide
AB1-3D29 RUBY-D813-H610E
(R).RUBY-D813-H610E.ATX IMB.LGA1700 H610E. w/ DDR4/VGA/ DP/HDMI® Dual GbE/COM/Audio/USB

包裝列表

Packing List
One R UBY-D813 motherboard
One I/O Shield
One SATA Cable
One CPU coolor bracket

Support

(Documents & Downloads)

  Catalog   RUBY-D813-H610E | Datasheet 210116   11 11 月, 2022
322.48 KB 2542 Downloads
      BIOS   BIOS_RUBY-D813-H610E_25000.zip | BIOS 2.50.00   24 1 月, 2024

    Support Intel Raptor Lake-S processor for RUBY-D813-H610E

    6.78 MB 15 Downloads
      BIOS   BIOS_RUBY-D813-H610E_PORTWELL_20100.CAP | BIOS 2.01.00   19 10 月, 2023

    Fixed i219 NVM is not valid when boot Ubuntu 22.04.

    32.00 MB 137 Downloads
      BIOS   RUBY-D813-H610E_PORTWELL_20100.CAP    20 9 月, 2023

    Fixed i219 NVM is not valid when boot Ubuntu 22.04.

    32.00 MB 115 Downloads
      BIOS   BIOS_RUBY-D813-H610E_20000.zip | BIOS 2.00.00   25 4 月, 2023

    RUBY-D813 BIOS:2.00.00

    Support Intel Raptor Lake-S processor

    32 MB 196 Downloads
      BIOS   RUBY-D813-H610E_10100.zip | BIOS 1.01.00ˊ   10 4 月, 2023
    6.47 MB 198 Downloads
        Driver   Driver_RUBY-D813-H610E_Intel_SerialIO_Software_V30.100.2131.26_Win10_11_64.zip | Driver V30.100.2131.26   8 11 月, 2022

      Serial IO Driver

      2.3 MB 813 Downloads
        Driver   Driver_RUBY-D813-H610E_Intel_Chipset_Driver_V10.1.18950.8298_Win10_11_64.zip | Driver V10.1.18950.8298   8 11 月, 2022

      Chipset Driver

      5.9 MB 817 Downloads
        Driver   Driver_RUBY-D813-H610E_Intel_LAN_Driver_V12.19.1.37_Win10_11_64.zip | Driver V12.19.1.37   8 11 月, 2022

      Lan Driver

      345.17 KB 122 Downloads
        Driver   Driver_RUBY-D813-H610E_Realtek_Audio_Driver_V6.0.9285.1_Win10_11_64.zip | Driver V6.0.9285.1   8 11 月, 2022

      Audio Driver

      59.2 MB 1249 Downloads
        Driver   Driver_RUBY-D813-H610E-Intel_Graphics_Accelerator-V30.0.101.1371_Win10_11_64.zip | Driver V30.0.101.1371   8 11 月, 2022

      Graphics Driver

      549.2 MB 882 Downloads
        Driver   Driver_RUBY-D813-H610E_Management_Engine_Interface_V2204.2.62.0_Win10_11_64.zip | Driver V2204.2.62.0   8 11 月, 2022

      ME Driver

      257.5 MB 816 Downloads
          User’s Manual   RUBY-D813-H610E | User’s Manual R1.2 R1.2   17 1 月, 2024

        Revise the Default Settings of Jumpers (Header 19 & Header 20)

        2.23 MB 58 Downloads
