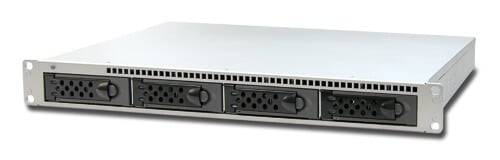

The WADE-1042 uses a 1U rack-mount form factor and is designed for network or communication applications. Its four drive bays support RAID configuration through the SATA interfaces on the board. Applications will benefit from WADE-1042’s compact size, expansion capability, RAID configuration and 250-watt power supply
| POWER SUPPLY | |
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 5A@115V, 3A@230V |
| Efficiency | >68% |
| Holdup Time | 20ms. at full load@25°C |
| Over Voltage Protection | +5V@5.5~6.8V; +3.3@3.7~4.8V; +12V@13.4~15.6V |
| Over Power/Load Protection | Output power over to 110%~140% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | UL, TUV, CE, FCC, CB, CSA, SEMKO, FIMKO, NEMCO, DIMCO |
| Temperature/Humidity | Operating: 0 ~ 50°C, 20 ~ 85%RH Storage: -40 ~ 70°C, 10m ~ 90%RH |
| Dimension (WxDxH) | 150 x 81.6 x 40.6 mm; 5.9” x 3.2” x 1.6” |
| Mechanical & Environmenal | |
| Operation Temperature | 0~50°C |
| Storage Temperature | 20~80°C |
| Relative Humidity | 5~95% non-condensing |
| Dimension | 443 x 387 x 44 (mm) |
| Weight | 6.5 Kg |
| WADE-1042-582L-220X Advance Mini-ITX based Chassis for Rack-Mount with PEP-582L, 2 slots PCI, riser card & 220W Active PFC PSU |
