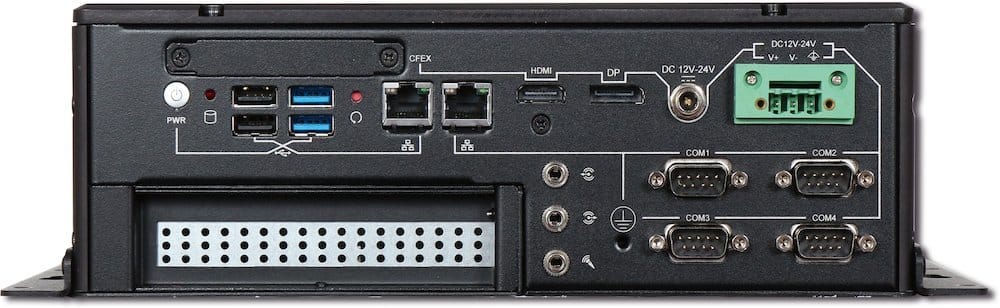

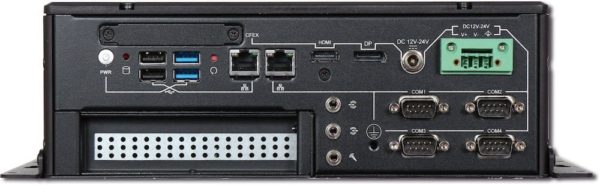

WEBS-5482-W

EOL
Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i5/i7 based Specific Form Factor Board

特點

  • 4th generation Intel® Celeron® & Core™ i5/i7ULT SoC
  • Intel® Haswell ULT SoC low power & high performance embedded fan-less system
  • Dual channel SO-DIMM socket up to 16GB DDR3L Memory
  • 1x 2.5” SATA HDD/SSD, 1x mSATA, 1x CEFX
  • 2x Mini-PCIe socket can be used in a diversity of applications
  • 1x PCIe x4 slot (PCIe x1 signal) innovative PCIe expansion module is easy for add-on cards replacement
  • 1x RS-232/422/485, 3x RS-232, 2x USB3.0, 2x USB2.0, 2x Gigabit Ethernet Port
  • Triple Display by DVI-D/HDMI®/DP
  • 2x Antenna hole + 1x on board SIM card holder for WiFi or 3G/GPS module to use
  • Dual power input
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec
  • IP40 Rating
Download
服務需求

簡介

The WEBS-5482-W builds on Intel® Haswell ULT Low Power SoC and takes advantages of Intel® Core™ mobile processor technologies that can support dual channel DDR3L memory. Support two Gigabit Ethernet ports, onePCIe expansion slot, and two Mini-PCIe sockets. The rugged design with dual power input, WEBS- 5482-W, an ideal platform with HD graphic output for POS, kiosk, digital signage, and transportation applications.

詳細規格

Model WEBS-5482-W
M/B PEB-5731-W
Form Factor Specific Form Factor 170 x 135 mm
System
CPU Intel® 4th Generation ULT Core™ i Processor
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/16GB
Graphic Controller HD Graphics 4000 Family
Audio Codec ALC892
Super I/O EC ITE IT8528 + Fintek F81216
Storage 1x CFEX, 1x 2.5” SATA HDD/SSD
1x mSATA
External I/O
Serial 3x RS-232
1x RS-232/422/485
USB 2x USB2.0
2x USB3.0
Display DVI-D, DP, HDMI®
Ethernet Intel® I218LM+I210AT
PS/2 N/A
Audio N/A
D I/O N/A
Expansion 1x Full-size Mini-PCIe 1x Half-size Mini-PCIe 1x PCIe
PWR
System DC 12V ~ 24V
Environment
OP Temp. -20°C ~ 50°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C,
non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 255 x 187 x 86 mm
Weight 5 Kg

採購資訊

Ordering Guide
AS5-3404 (R).ATO.WEBS-5482-W.Haswell ULT. Fanless System.

Documents & Downloads

  Catalog   WEBS-5482-W | Catalog 20150429   29 4 月, 2015
下載

Catalog

1.59 MB 3388 Downloads
      BIOS   BIOS_WEBS-5482-W_R100E4.zip | BIOS R1.00.E4   27 11 月, 2015
    下載
    1. Move item Serial Port RS485 Mode to OEM Page.
    2. Support SuperI/O F81216AD RS-485 mode control.
    3. Rename item "Serial Port RS485 Mode" to "RS-485 Auto Flow Control".
    10.09 MB 1746 Downloads
      BIOS   BIOS_WEBS-5482-W_ R100E3.zip | BIOS R1.00.E3   30 4 月, 2015
    下載

    BIOS of WEBS-5482-W

    4.88 MB 1936 Downloads
