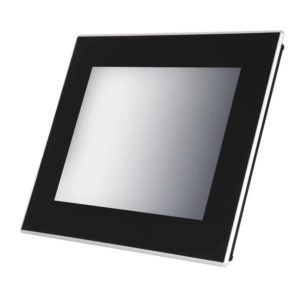

FUDA3-S1212

Slim and Fan-free 5-wire Resistive Touch Panel PC with Wide Temperature Support Powered by Intel® Apollo Lake-I Qual-core Processor
FUDA3-S1212
FUDA3-S1212 - Image 2
FUDA3-S1212 - Image 3
FUDA3-S1212 - Image 4
FUDA3-S1212 - Image 5
FUDA3-S1212 - Image 6
FUDA3-S1212 - Image 7
FUDA3-S1212 - Image 8
FUDA3-S1212 - Image 9

Features

  • Intel® Atom x7-E3950 Quad-Core CPU (up to 2.0 GHz, 12 W TDP) with support for temperatures ranging from -25 °C to 60 °C for reliable operation in harsh environments.
  • 10.4″ / 12.1″ / 15″ XGA Displays offering 450 / 600 cd/m² brightness and up to 700:1 contrast for clear, readable visuals.
  • Effortless Upgrade: 100% mechanical compatibility with previous FUDA/FUDA2 series enables direct replacement without cabinet or mount modifications.
  • Versatile I/O: 2× Gigabit Ethernet, HDMI®, USB 3.0/2.0, high-speed RS-232/422/485 UART (up to 921.6 kbps), and Mini-PCIe expansion.
  • Industrial-Grade Durability: 12–24 V wide-voltage input, fanless dust-proof design, IP65 front-panel protection, and certified for vibration, shock, and drop resistance.
Datasheet
Documents & Downloads

In IPC market, a robust and highly reliable Panel PC system is a must to ensure non-stop and stable operation on production line. By enhancing performance and power efficiency, FUDA3 Series is an ideal HMI in factory automation, food and beverage industry, vending machine or semi-outdoor environments.

Specifications
Model Name FUDA3-S1012 FUDA3-S1212 FUDA3-S1512
LCD Size 10.4″ 12.1″ 15″
Resolution XGA 1024 x 768 XGA 1024 x 768 XGA 1024 x 768
Brightness 450 cd/m² 600 cd/m² 450 cd/m²
Contrast Ratio 3000:1 700:1 700:1
Backlight LED type
Touch Screen 5-Wire Resistive Single Touch
System
SoC Intel® Atom™ x7-E3950 (Quad Core, 2M Cache, up to 2.0 GHz)
Memory DDR3L SO-DIMM 1866 MHz up to 8 GB
BIOS AMI
Graphics Intel® HD Graphics 505
LVDS Single/Dual Channel 24-bit
LAN Chipset Dual Intel® Gigabit Ethernet Chipset
Audio N/A
Watchdog Timer Programmable 1~255 sec
Storage Device 1 x 2.5″ SATA HDD/SSD, 1 x Mini-mSATA
OS Windows 10/LinuxTM
I/O Interface
Series Port 2 x RS-232/422/485 (Expansion: Option 0)
Display 1 x HDMI®
USB 1 x USB OTG, 2 x USB 3.0, 2 x USB 2.0 (Expansion: Option 0)
Ethernet 2 x Gigabit Ethernet
Others 1 x SMA Antenna hole for WiFi/LTE Solution
Expansion
  • 1 x Full-size Mini-PCIe socket
  • 1 x Half-size Mini-PCIe/Mini-mSATA socket switch by jumper
  • 2 x RS-232/422/485, 1 x RS-232 (Expansion: option 1)
Mechanical
Dimension (mm) 314 x 253 x 50.2 mm 343 x 282 x 53.2 mm 425 x 330 x 55.6 mm
Mounting (mm) VESA Mount 75 x 75 & 100 x 100: Panel Mount
Weight (Kg)(N) 3.5 Kg 4.3 Kg 5.3 Kg
Weight (Kg)(G) 5.8 Kg 6.2 Kg 8.2 Kg
Power Supply DC 12–24V input with 3-pin Terminal Block Connector
Consumption (Max) 33.5W (12V); 33.6W (24V) 40.9W (12V); 39.4W (24V) 40.5W (12V); 40.2W (24V)
Consumption (Min) 11.8W (12V); 14W (24V) 12W (12V); 12.3W (24V) 11.2W (12V); 12W (24V)
Environmental
OP/Storage Temp -25°C ~ 60°C / -40°C ~ 85°C (20 ~ 90% non-condensing)
Vibration 1.0G (SSD) and 0.5G (HDD) , Power on ; 2.16G, Packaged; 5~500Hz, IEC 60068-2-6
Shock 15G peak acceleration, 11 ms (Power on condition), IEC 60068-2-27
Drop Package with Carton from 96.5 cm (1-Corner, 3-Axis, 6-Face), ISTA 2A Standard
IP Protection IP65 (Front) / IP20 (Rear), IEC 60529 Edition 2.1 Standard
Certificate CE/FCC Class A; UKCA. EN 62368-1, EN 61000-6-2, EN 61000-6-4

Ordering Guide

Ordering Guide
Model No. Description
AL6-3290 (R).ATO. FUDA3-S1012-0000-00.10.4″ Intel® Apollo Lake E3950 5-wire Resistive Touch Panel PC with PW Overlay
AL6-3295 (R).ATO. FUDA3-S1212-0000-00.12.1″ Intel® Apollo Lake E3950 5-wire Resistive Touch Panel PC with PW Overlay
AL6-3289 (R).ATO. FUDA3-S1522-0000-00.15″ Intel® Apollo Lake E3950 5-wire Resistive Touch Panel PC with PW Overlay
