| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 9A@115V, 5A@230V |
| Efficiency | > 60% |
| Holdup Time | 16 ms at full load |
| Over Voltage Protection | +5V: 5.7 ~ 7.0V; +3.3V: 3.9 ~ 4.5V; +12V: 13.6 ~ 16.0V |
| Over Power/ Load Protection |
Output power over 110% ~ 150% |
| MTBF | 100,000 hrs |
| EMI & Safety Approval | UL, TUV |
| Temperature/ Humidity |
Operating: 0 ~ 40°C, 20 ~ 90%RH Storage: -20 ~ 60°C, 5 ~ 95%RH |
| Dimension (WxDxH) |
150 x 140 x 86 mm; 5.9” x 5.5” x 3.4” |

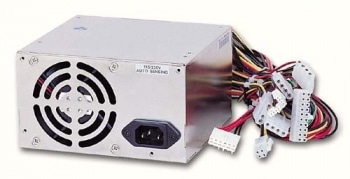

| ORION-D4601P 460W PS/2 ATX power supply with active PFC |
