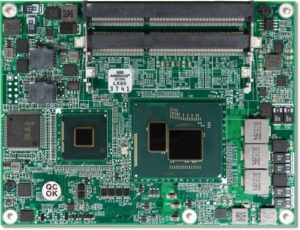

PCOM-B635VG

Data protection is more and more important in real world since big data rising. Portwell adopt new Intel platform to provide highest secure logic. It help customer earn trust and business by securing important information anytime

Features

  • Intel® 5th Generation Core™ i7, i5 and i3 Processors
  • Support DDR3L-1600/1333 ECC SDRAM on two SO-DIMM slots, up to 16GB
  • One VGA, three Display-port and one embedded Display port
  • Support USB 2.0/ 3.0, SATA, 7 PCIE x1 and 1 PCIEx16
  • Wide voltage support, from 6V to 18V

Intel® 5th Generation Core™ i7/i5/i3 processor based on TyepVI Basic COM Express® Rev 2.1 module with DDR3L ECC SDRAM on Dual SO-DIMM slots, VGA, Display-port, Gigabit Ethernet, SATA and USB

The basic PCOM-B635VG COM Express® module supports up to 16GB ECC DDR3L 1333/1600 MT/s SDRAM on two 204-pin SO-DIMM sockets making it faster than its predecessor. Its expansion interface supports one PCI Express x16 Gen3 (8.0GT/s) with three controllers integrated into processor for enhanced video performance and enhance capabilities to be configurable to 2 x8-lane or 1 x8-lane and 2 x4-lane PCI Express ports.

The module supports three independent displays, DP (Display Port), HDMI® or DVI and VGA with up to double greater 3D performance compared to its previous generation.

Specification

Ordering Guide

Ordering Guide
AB1-3C53 (R).PCOM-B635VG.
TYPE VI. Basic Form Factor.COM Express Module.Broadwell/PCH
