PQ7-M640F

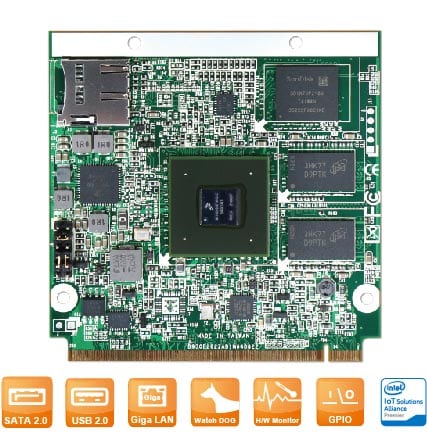

Freescale iMX6 Family based Qseven Module Board for Mini-ITX

PQ7-M640F

Features

Freescale i.MX 6 Family, single, dual and quad-core processors (ARM Cortex A9), up to 1.2GHz
up to 4GB DDR3 onboard memory
1 x micro SD socket
1 x on Board 4G eMMC
1 x LVDS Dual Channel or 2 x LVDS Single Channel 18/24 bit interface (resolution up to 1920 x 1200)

Qseven Module based on Freescale^® i.MX6 Family Processor, support up to 4GB DDR3 SDRAM, LVDS/HDMI^® Display, gigabit ethernet and SSD/SATA storage

General
Technology	ARM
Format	Qseven
Type	module
Chipset	SoC (System-On-Chip)
DRAM	on board DDR3 Up to 2GB
Graphic Controller	integrated
Storage	onboard eMMC 5.0 flash up to 64 GB, onboard mSD socket
Network	1x 10/100/1000 GbE
Bus Interface	1x SDIO, 2x SPI, 2x I²C, 1x I²S, 1x HDA (share w/I²S), 2x CANBus, 4x UART, 2x GPIO
Serial Interface	1x SATA 2.0 (3 Gb/s); 1x PCIe x1 Gen2
USB	5x USB2.0 HOST, 1x USB2.0 OTG
Firmware	Kernel 3.14.28_Uboot 2014.04
OS Support	Linux, Yocto 1.7
Power Requirement	5V DC ±5%
Operating Temperature	0°C to +60°C
Extended Temperature	-40°C to +85°C
Dimensions	70×70 mm

Ordering Guide

Ordering P/N	Product
AB1-3A50Z	PQ7-M640F, CPU Module board (Quad core)
AB9-3243Z	PQ7-C100ARM, I/O Carrier board
By project	PQ7-M620F, CPU Module board (Dual core)
By project	PQ7-M610F, CPU Module board (Single core)
