PSYS-508-Q670

Barebone system with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based ATX board
PSYS-508-Q670

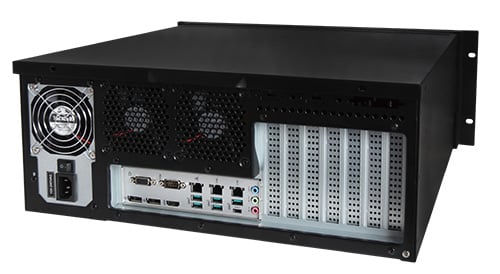

PSYS-508-Q670-back
PSYS-508-Q470 back
PSYS-508-Q670 front

Features

  • Support 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3 processors
  • Four U-DIMM support DDR5 DRAM up to 128GB
  • Support two DP, one HDMI®, one VGA display
  • Support One M.2 E Key, One M.2 M Key
  • Support 1 x COM ports (1x RS-232/422/485)
Datasheet
Documents & Downloads

PSYS 508 Q670 builds on Intel® Q670E chipset and takes advantages of 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support 4 x DDR5 memory and 7 x SATA Ports for storage. With the advantage of 600w 80 plus gold ATX PSU, will be a flexible platform for factory automation, AOI, surveillance application.

System
CPU Supporting Intel® 14th /13th /12th-Gen Core™ i9/i7/i5/i3/Pentium/Celeron CPU (LGA1700 socket, Max 65W TDP)
BIOS AMI uEFI BIOS (SPI ROM)
Memory 4 x U-DIMMs, max. 128GB, DDR5
Storage 7 x SATA 6.0 Gb/s ports, Supports RAID 0/1/5/10
Watchdog Timer Yes
TPM 1 x SPI TPM header
Expansion
  • 1x M.2 E key, type 2230 (CNVi mode) for WiFI/BT devices (Antenna Kit supported)
  • 1x M.2 M key, type 2242/2260/2280 (PCIex4/SATA mode) supporting NVMe
  • 1x PCIe 5.0 x16 slot (x16 mode / x8 mode)
  • 1x PCIe 4.0 x4 slot (x4 mode, open slot)
  • 1x PCIe 5.0 x16 slot (x8 mode)
  • 1x PCIe 3.0 x4 slot (x4 mode, open slot)
  • 1x PCIe 4.0 x4 slot (x4 mode, open slot)
  • 2x PCI slots
Internal I/O
  • 5x COM header support 5 COM ports (1 x RS-232/422/485, 4 x RS232)
  • 2x USB 3.2 Gen1 header supports additional 4x USB 3.2 Gen1 ports
  • 1x USB 2.0 header support 2x USB 2.0 ports
  • 1x 8 bit GPIO header (Connector Kit supported)
External I/O
Serial Port 1 x COM ports (1 x RS-232/422/485)
Display
  • 2x DP, support DP++1.4, up to 3840 x 2160 @ 60Hz
  • 1x HDMI®, support 2.1, up to 4096 x 2160 @ 60Hz
  • 1 VGA
USB
  • 6 x USB 3.2 Gen 2 (5 x Type A + 1 x Type C)
  • 2 x USB 2.0 (Type A)
Audio 3 (Line in, Line out, Mic In)
Power Supply Unit
Power Input ATX 600w 80 plus gold
Environmental
Operation Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Relative Humidity 40°C, 85%RH non-condensing
Operation Vibration 0.75 Grms/5-500Hz, IEC 60068-2-6
Operation Shock 10G, 11 msec, IEC 60068-2-27
Mechanical
Dimension 430 (W) x 450 (D) x 177 (H) mm
Weight 18 Kg
Mounting Rackmount

Ordering Guide

Ordering Guide
AS1-3382 (R).PSYS-508-Q670. 4U Rackmount Barebone System with Intel Core-i 12th/13th/14th MB & 600w PSU
