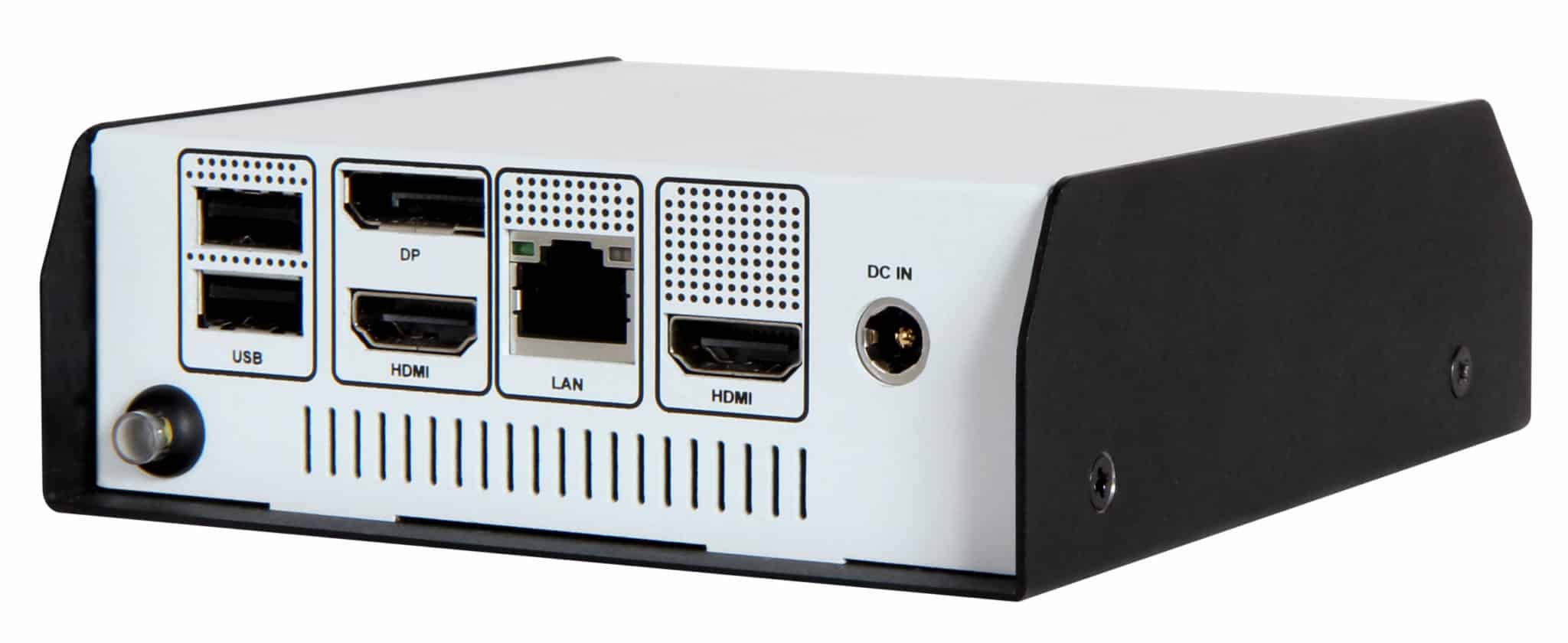

RICH-61E0

Embedded fan-less system with Intel^® 7^th Gen Kabylake-U based NUC board

RICH-61E0

Features

Supports Intel^® 7^th Gen Kabylake-U Core™ MCP Processors
Supports Dual Channel DDR4 SO-DIMM 2133 ,up to 32GB
Supports 2 x HDMI^®, 1 x DP
Support Dual Display (HDMI^®2 + DP or HDMI^® 1 + HDMI^® 2)
Support xUSB 3.0, 1 x USB 3.1 (Type C), 1 x IR
Support M.2 slots 1 x Key E(Supports 2230) and 1 x Key M(Supports 2260)

RICH-61E0 builds on Intel^® 7^th Gen (Kabylake-U) Core™ MCP Processors that can support dual channel DDR4 SO-DIMM memory and Support one Gigabit Ethernet port and M.2

General
Model	RICH-61E0
M/B	WUX-7100 U / 7300 U
Form Factor	NUC

System
CPU	Intel^® Kabylake-U Processor Ci5-7300U, 15W TDP (2C/4T) Intel^® Kabylake-U Processor Ci3-7100U, 15W TDP (2C/4T)
BIOS	AMI UEFI
Memory	DDR4 SO-DIMMs, up to 32GB
Graphic Controller	Intel^® HD Graphics 620
Super I/O	EC
Storage	1x SATA III port 1x M.2 Key M 2260 for storage

External I/O
Serial	N/A
USB	3x USB 3.0, 1x USB 3.1 Type-C
Display	2x HDMI^®, DP
Ethernet	Intel^® I219LM
PS/2	N/A
Audio	Mic-in or Line-out
D I/O	N/A
Expansion	1x M.2 Key E 2230 for wireless module

Power
System	DC 12V~19V

Environment
OP Temp.	0°C ~ 60°C
Storage Temp.	-40°C ~ 80°C
Humidity	95%@40°C, non-condensing
Vibration	5Grms/10-500Hz, IEC 60068-2-6
Shock	50G, 11 msec, IEC 60068-2-27

Mechanical
Dimension(WxDxH)	113 x 135 x 41 mm
Weight	1.5 Kg

Ordering Guide

Ordering Guide
AS5-3546	(R). ATO. RICH-61E0. NUC System
