120W DC/DC 9V~29V Input/ATX output, Board Type Converter


  • Compact and user-friendly design for installation and maintenance
  • Small size for 1U or higher system to save space
  • Suitable for Car PC, Steamer, Truck, Boat and Adapter
  • Special design for delay-time
  • Socket type fuse protection
  • -40°C to 75°C wide temperature support

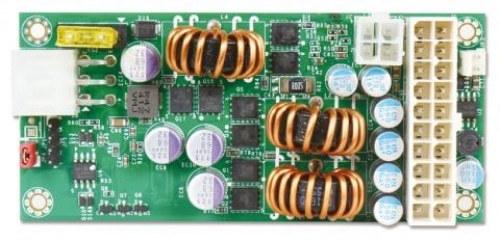

GADIWA-B9120 is a DC to DC wide voltage input board type converter. It normally support continuous 120 Watts and peak 160 Watts.

GADIWA-B9120 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance.


Input Voltage 9V~29V
Output 120Watts / 160 Watts Peak
Efficiency >90% @ 12V input, 120W output
MTBF 410,386hrs @ 55°C
EMI & Safety Approval CE, FCC
Input Connector 9V~29V 6 pin (P/N: B6902060)
Output Connector ATX 20 pin + 12V 4 pin
Dimension (WxDxH) 100 x 45 x 22.5 mm
Operation Temperature -40°C ~ 75°C


Ordering Guide
120W DC/DC 9V~29V/wide-input.ATX/output.Wide Temperature.Board Type Converter
