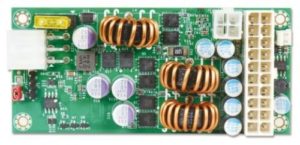

GADIWA-B9120 is a DC to DC wide voltage input board type converter. It normally support continuous 120 Watts and peak 160 Watts.
GADIWA-B9120 can save more space and cost. It’s not only capability for fan-less system but also suitability for different applications. Besides, the converter is made and tested by automatic production line; therefore, it can provide high quality and better performance.
| Input Voltage | 9V~29V |
| Output | 120Watts / 160 Watts Peak |
| Efficiency | >90% @ 12V input, 120W output |
| MTBF | 410,386hrs @ 55°C |
| EMI & Safety Approval | CE, FCC |
| Input Connector | 9V~29V 6 pin (P/N: B6902060) |
| Output Connector | ATX 20 pin + 12V 4 pin |
| Dimension (WxDxH) | 100 x 45 x 22.5 mm |
| Operation Temperature | -40°C ~ 75°C |
| GADIWA-B9120 120W DC/DC 9V~29V/wide-input.ATX/output.Wide Temperature.Board Type Converter |
