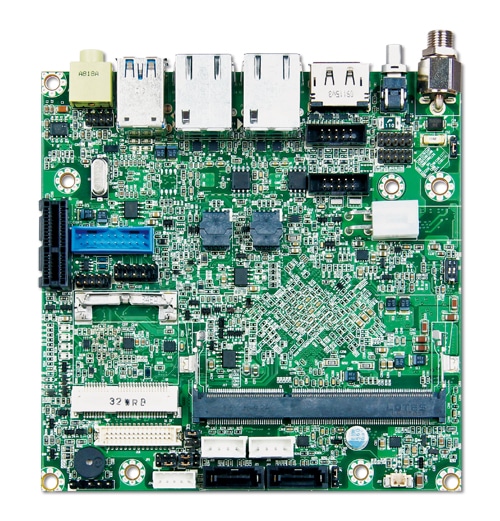

NANO-6060 build with Intel Atom® processor E3800 family that not only outputs under 10W for fan-less applications, but also supports a wide industrial temperature from -40ºC to 85ºC. With its superior up to Quad Core processing power and high capability. Portwell have taken advantage of such technology to furnish a series of products that can meet multiple industrial requirements such as fanless, cost-effective of CPU performance or compact systems.
| General | |
| Processor | – Intel Atom® E3800 family processor – Cache up to 2MB (for Quad Core) – DPM (Defect Per Million devices) <50 – Support Intel® VT-x techology |
| BIOS | Phoenix EFI BIOS |
| Memory | 1x DDR3L 1066/1333MT/s non-ECC SO-DIMM up to 4GB |
| Storage Devices | – 2x SATA II -1x Micro-SD socket |
| Watchdog Timer | Programmable by embedded controller |
| Hardware Monitoring | – Temperature (CPU & System) – Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V) |
| Expansion Interface | – 1x PCIe x1 slot – 1x half size mini-PCIe slot |
| I/O INTERFACE | |
| Audio | – HDA controller integrated in Intel® SoC – Realtek ALC892 HDA codec, Audio Jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in |
| Ethernet | – 2x Dual Intel® I210IT Gigabit Ethernet controller (for E3827/ E3845 only) – 2x RJ45 connectors on rear I/O (for E3827/ E3845 only) – 1x Single Intel® I210IT Gigabit Ethernet controller and 1xRJ45 connector on rear I/O for E3815 |
| Serial port | 1x RS-232/422/485 on board connector (selected by bios) |
| USB | – 2x USB 3.0 ports on rear I/O – 2x USB 2.0 and 2x USB 3.0 ports on board with pitch 2.0 header |
| GPIO | 8bit configurable controlled by embedded controller |
| DISPLAY | |
| Graphic Controller | – Intel® Gen7 graphic engine supports DirectX 11, OpenGL® 4.0 – Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats |
| Display Interface | – LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920×1200 @60Hz – VGA: One on-board DB-15 connector, resolution up to 1920×1200 (WUXGA) – DP: One DP port on rear I/O, resolution up to 2560×1600 |
| Mechanical & Environment | |
| Dimension | 120mm(L) x 120mm(W) ; 4.72”(L) x 4.72”(W) |
| Power Supply | DC 12V input |
| Environment | – Operation temperature: -40°C~85°C – Storage temperature: -40°C~85°C – Relative humidity : 5%~95%, non-condensing |
| Certification | CE,FCC Class B |
| MTBF | Over 100,000hrs at 55°C |
| AB1-3A45 | (R).NANO-6060- E3815 Nano-ITX ESB. Intel Atom® E3815 1.46GHz Single Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/single GbE LAN/micro SD |
| AB1-3A46 | (R).NANO-6060- E3827 Nano-ITX ESB. Intel Atom® E3827 1.75GHz Dual Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/ dual GbE LAN/micro SD |
| AB1-3A47 | (R).NANO-6060- E3845 Nano-ITX ESB. Intel Atom® E3845 1.91GHz Quad Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/ DP/dual GbE LAN/micro SD |
| One NANO-6060 NANO-ITX Main Board |
| One Passive Heat Spreader |
| One Installation CD |
