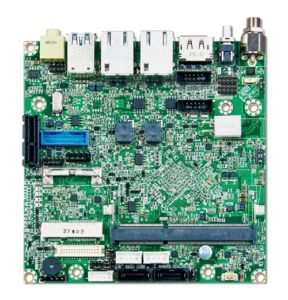

NANO-6060

Intel Atom® E3800 family SoC based NANOITX. Board with Dual displays, Gigabit Ethernet, Audio, USB 3.0, micro SD and SATA

Features

  • Intel® Bay Trial-I SoC based platform
  • 1x 204-pin SO-DIMM supports DDR3L up to 4GB
  • Multiple displays by VGA, DP, dual channel 24 bit LVDS
  • Supports 2x SATA II ports, 1x micro SD socket, and 4x USB 3.0 ports
  • 1x half size mini-PCIe socket and PCIe x1 slot for expansion
  • Supports DC 12V input

Description

NANO-6060 build with Intel Atom® processor E3800 family that not only outputs under 10W for fan-less applications, but also supports a wide industrial temperature from -40ºC to 85ºC. With its superior up to Quad Core processing power and high capability. Portwell have taken advantage of such technology to furnish a series of products that can meet multiple industrial requirements such as fanless, cost-effective of CPU performance or compact systems.

Specification

Specifications
General
Processor – Intel Atom® E3800 family processor
– Cache up to 2MB (for Quad Core)
– DPM (Defect Per Million devices) <50
– Support Intel® VT-x techology
BIOS Phoenix EFI BIOS
Memory 1x DDR3L 1066/1333MT/s non-ECC SO-DIMM up to 4GB
Storage Devices – 2x SATA II -1x Micro-SD socket
Watchdog Timer Programmable by embedded controller
Hardware Monitoring – Temperature (CPU & System)
– Voltage (CPU Vcore,12V, 5V, 3.3V, 1.35V)
Expansion Interface – 1x PCIe x1 slot
– 1x half size mini-PCIe slot
I/O INTERFACE
Audio – HDA controller integrated in Intel® SoC
– Realtek ALC892 HDA codec, Audio Jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in
Ethernet – 2x Dual Intel® I210IT Gigabit Ethernet controller (for E3827/ E3845 only)
– 2x RJ45 connectors on rear I/O (for E3827/ E3845 only)
– 1x Single Intel® I210IT Gigabit Ethernet controller and 1xRJ45 connector on rear I/O for E3815
Serial port 1x RS-232/422/485 on board connector (selected by bios)
USB – 2x USB 3.0 ports on rear I/O
– 2x USB 2.0 and 2x USB 3.0 ports on board with pitch 2.0 header
GPIO 8bit configurable controlled by embedded controller
DISPLAY
Graphic Controller – Intel® Gen7 graphic engine supports DirectX 11, OpenGL® 4.0
– Video decode hardware acceleration supports for H.264, MPEG2, MVC, VC-1, WMV9 and VP8 formats
Display Interface – LVDS: Dual channel 24bit LVDS on board connector, resolution up to 1920×1200 @60Hz
– VGA: One on-board DB-15 connector, resolution up to 1920×1200 (WUXGA)
– DP: One DP port on rear I/O, resolution up to 2560×1600
Mechanical & Environment
Dimension 120mm(L) x 120mm(W) ; 4.72”(L) x 4.72”(W)
Power Supply DC 12V input
Environment – Operation temperature: -40°C~85°C
– Storage temperature: -40°C~85°C
– Relative humidity : 5%~95%, non-condensing
Certification CE,FCC Class B
MTBF Over 100,000hrs at 55°C

Ordering Guide

Ordering Guide
AB1-3A45 (R).NANO-6060- E3815
Nano-ITX ESB. Intel Atom® E3815 1.46GHz Single Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/single GbE LAN/micro SD
AB1-3A46 (R).NANO-6060- E3827
Nano-ITX ESB. Intel Atom® E3827 1.75GHz Dual Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/DP/ dual GbE LAN/micro SD
AB1-3A47 (R).NANO-6060- E3845
Nano-ITX ESB. Intel Atom® E3845 1.91GHz Quad Core.w/DDR3L SO-DIMM/VGA/24bit LVDS/ DP/dual GbE LAN/micro SD

Packing List

Packing List
One NANO-6060 NANO-ITX Main Board
One Passive Heat Spreader
One Installation CD

Support

(Documents & Downloads)

  Catalog   NANO-6060 | Catalog    March 29, 2021
1.68 MB 2882 Downloads
      BIOS   BIOS_NANO-6060-J1900_R100W9.zip | BIOS R1.00.W9   August 22, 2023
    8.90 MB 145 Downloads
      BIOS   BIOS_NANO-6060-E3815_R100WB.zip | BIOS R1.00.WB   August 22, 2023
    8.92 MB 124 Downloads
      BIOS   BIOS_NANO-6060_R100W8_Update.zip | BIOS R1.00.W8   May 3, 2021
    1. Update CPU Microcode to M0F30679_90A
    2. Update TXE F/W to Version 1.1.4.1145v3
    6.10 MB 1000 Downloads
      BIOS   BIOS_NANO-6060_R100W5.zip | BIOS R1.00.W5   May 3, 2021
    6.63 MB 975 Downloads
      BIOS   BIOS_NANO-6060_R100WA_update.zip | BIOS R.100.WA   February 19, 2021
    1. BIOS Message “Portwell, Inc. NANO-6060 BIOS Rev.:R1.00.WA ( 01282021 )”
    2. Support Audio Codec ALC888
    6.10 MB 899 Downloads
      BIOS   BIOS_NANO-6060_R.100.WA | BIOS R.100.WA   February 19, 2021
    1. Portwell, Inc. NANO-6060 BIOS Rev.:R1.00.WA ( 01282021 )
    2. Support Audio Codec ALC888
    6.10 MB 949 Downloads
      BIOS   BIOS_NANO-6060_R100W9_update.zip | BIOS R1.00.W9   January 28, 2021
    1. BIOS Message “Portwell, Inc. NANO-6060 BIOS Rev.:R1.00.W9 ( 12162020 )
    2. Fix COM Port issue
    6.10 MB 873 Downloads
      BIOS   BIOS_NANO-6060-J1900_R100W8_update.zip | BIOS R1.00.W8   May 29, 2020
    6.10 MB 874 Downloads
      BIOS   BIOS_NANO-6060_BIOS_R100W4.zip | BIOS R1.00.E2   October 17, 2019

    MP bios support F1 stepping CPU

    9.63 MB 978 Downloads
      BIOS   BIOS_NANO-6060_R100W4.zip | BIOS R1/00.W4   December 25, 2014
    1. Support D0 stepping SoC
    2. Fix INTEL 530 SSD 120G can’t be detected in Win8.1 x64
    6.60 MB 2059 Downloads
