PCOM-B657VGL

PCOM-B657VGL

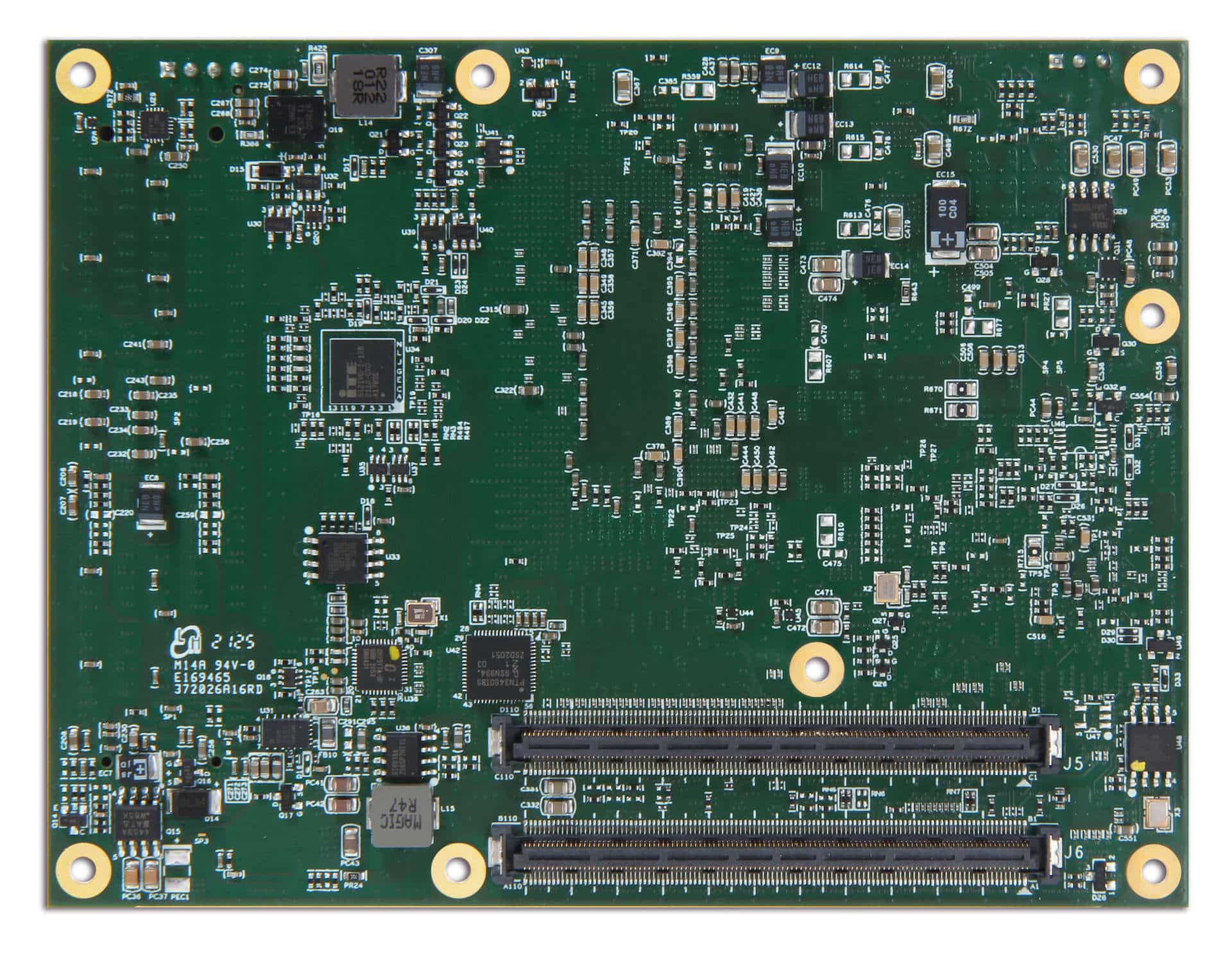

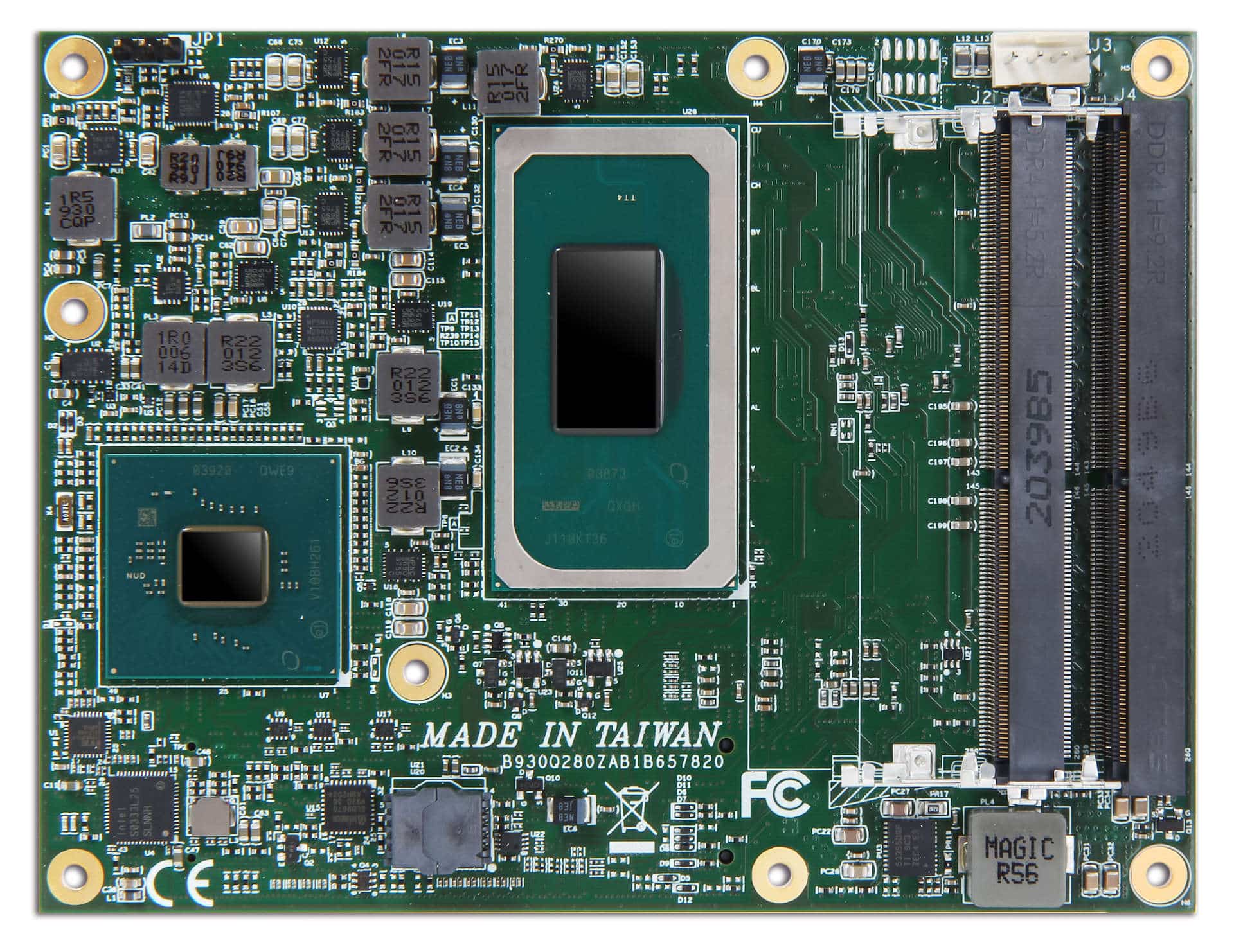

COM Express Type-VI Basic module with Intel® 11th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

特點

  • 11 Gen Intel® Core™, Celeron®, and Xeon® W-11000E Series processors in 10nm Super Fin Process technology
  • AI/DL Instruction sets Support (Intel VNNI, AVX-512, INT8, FP16)
  • Up to 8C/16T@45W, support industrial temperature on selected SKUs
  • DDR4 SO-DIMM, PCIe Gen 4.0 x16, and 8x PCIe Gen 3.0 x1
  • Complete Support of 3x DDI, eDP/LVDS, and VGA
  • Support Intel® TCC/TSN with 2.5GbE
Download
Application Note
Video

Video

Play Video

Description

PCOM-B657VGL is a COM Express module based on Intel® 11th Gen H Processor, which is compatible with COMe 3.0 standard. The platform adopt 10nm++ process and support VNNI instruction set, offers advance computing power with 45W~25W thermal and industrial grade power management.

Specification

Specifications
Model Name PCOM-B657VGL
Form Factor (mm) COM Express® Basic (125 x 95mm)
COM Type Type 6
CPU/ Clock/ Cache i7-11850HE, 8C/16T, 2.6GHz, 24MB
i5-11500HE, 6C/12T, 2.6GHz, 12MB
i3-11100HE, 4C/8T, 2.4GHz, 8MB
Celeron 6600HE, 2C/2T, 2.6GHz, 8MB
W-11865MRE, 8C/16T, 2.6GHz, 24MB
W-11555MRE, 6C/12T, 2.6GHz, 12MB
W-11155MRE, 4C/8T, 2.4GHz, 8MB
W-11865MLE, 8C/16T, 1.5GHz, 24MB
W-11555MLE, 6C/12T, 1.9GHz, 12MB
W-11155MLE, 4C/8T, 1.8GHz, 8MB
Chipset RM590E / QM580E
Memory DDR4 3200 MT/s
Dual Channel
Non-ECC / ECC (W-11000 Series)
Display 3*DDI, LVDS/eDP, VGA
Storage 4*SATA
USB 4 x USB 3.2 Gen2 x1
8 x USB 2.0
PCI Express 1 x PCIe 4.0 x16 (1 x16, 2 x8, or 1 x8 + 2 x4)
8 x PCIe 3.0 x1 (8 x1, 4 x1 + 1 x4, or 2 x4)
Support Intel RST for PCIe Storage for both x4 Link
Ethernet Intel I225 Family (2.5G)
Sound Intel® High Definition Audio
Graphic Controller Intel® UHD Graphics
Carrier Board PCOM-C605
PCOM-C60B

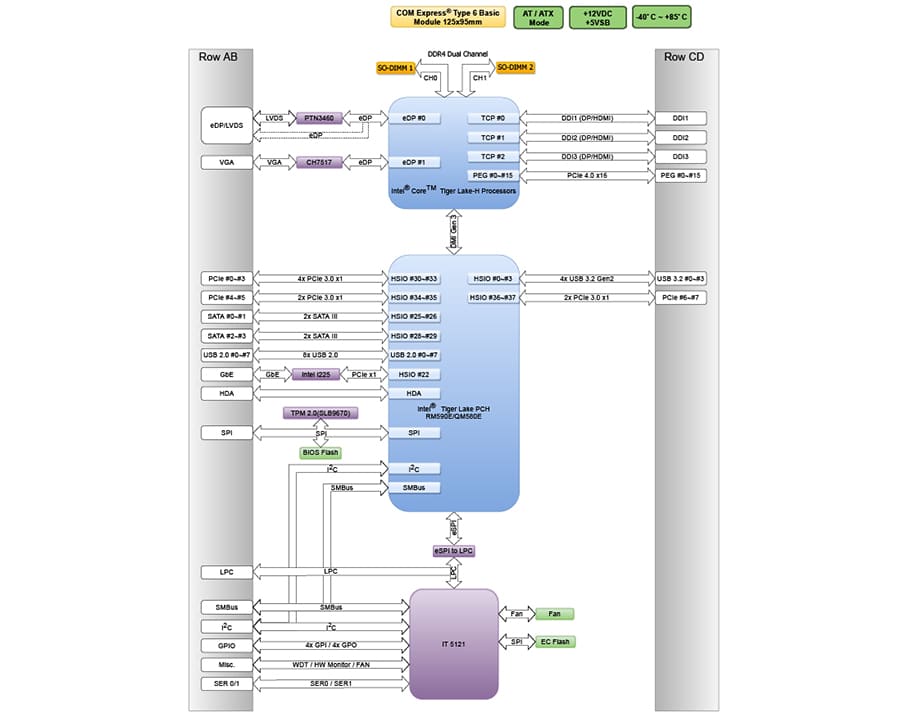

Block Diagram

採購指南

Ordering Guide
Product Ordering P/N Status
PCOM-B657VGL-11850HE AB1-3L58 Available
PCOM-B657VGL-11500HE AB1-3L67 Available
PCOM-B657VGL-11100HE AB1-3L65 Available
PCOM-B657VGL-6600HE AB1-3L66 Available
PCOM-B657VGL-11865MRE AB1-3L57 Available
PCOM-B657VGL-11555MRE AB1-3L64 Available
PCOM-B657VGL-11155MRE AB1-3L63 Available
PCOM-B657VGL-11865MLE AB1-3L59 Available
PCOM-B657VGL-11555MLE AB1-3L62 Available
PCOM-B657VGL-11155MLE AB1-3L61 Available

Accessory

Accessory
Accessory Ordering P/N Status
Cooler (spring loaded copper slog) B9972030 Available
Cooler (Aluminum) B9972050 Available
Heatsink (spring loaded copper slog) B830B680 Available
Heatsink (Aluminum) B830B670 Available
Heatspreader (whole copper) B830B650 Contact Us
Heatspreader (Aluminum) B830B660 Contact Us
Carrier (Mini-ITX)
PCOM-C605		 AB1-3998 Available
Evaluation Carrier (ATX)
PCOM-C60B		 AB1-3G22 Available
